Amazon .NET Developer Interview Questions & Answers

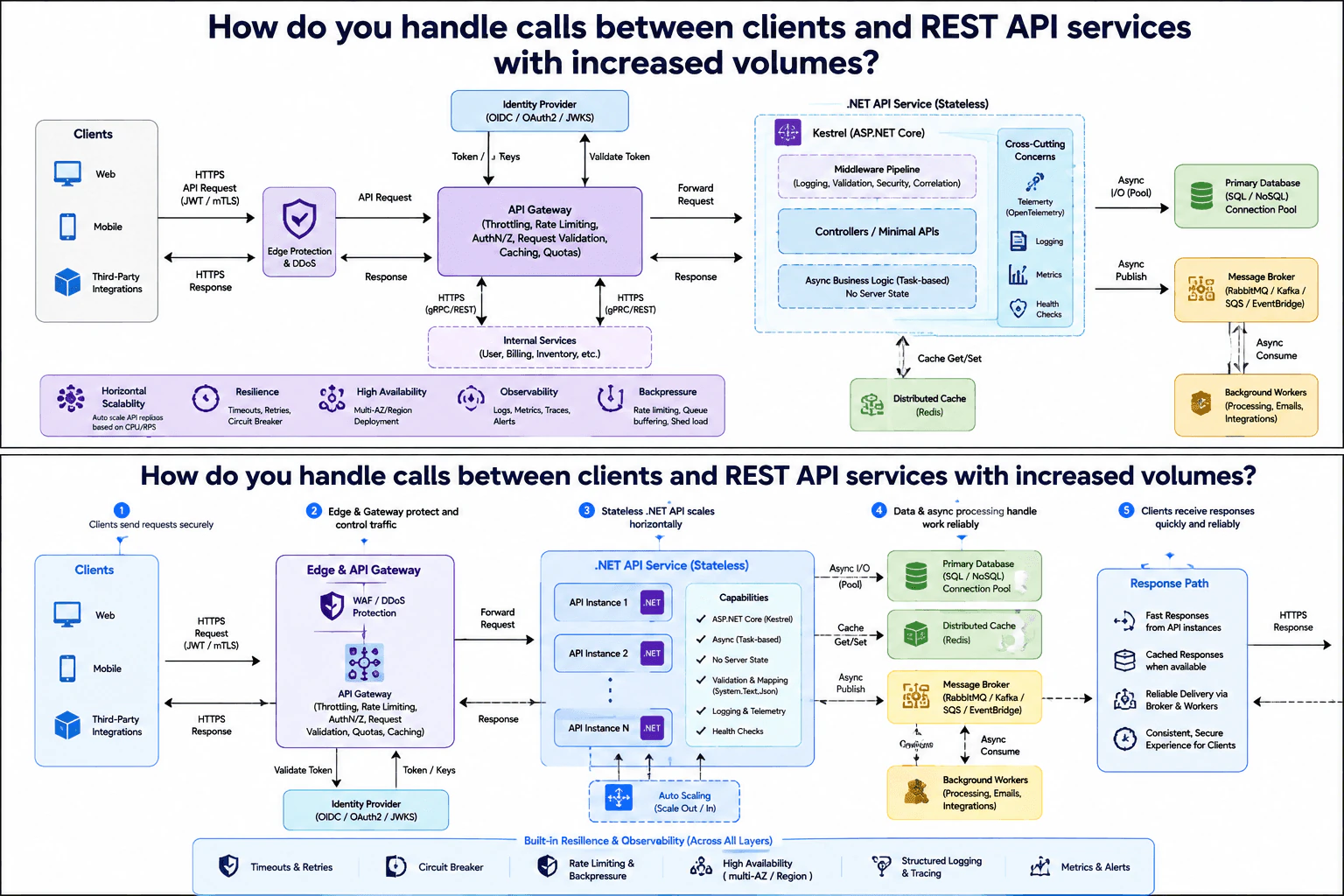

At a high level, I would keep the REST contract stable and scale everything behind it. Clients send HTTPS requests through edge and DDoS protection to an API gateway. The gateway handles AuthN/Z, rate limiting, validation, caching, quotas, and routing. It forwards work to stateless ASP.NET Core services that scale horizontally. Those services use async I/O, Redis, the primary database, and a message broker for background work. This handles larger volumes well, but the trade-off is more infrastructure and operational complexity.

This question asks how I would keep an API working when many more callers start using it. The callers should not need a new contract just because traffic grows. My goal is to protect the service, spread work across more copies, reduce unnecessary database work, and move slow work away from the main request. I also need good visibility when something becomes overloaded or unhealthy. I would explain the design by following the diagram from the clients through the gateway and .NET service, then through data and background-processing paths, and finally back to the callers.

• How large can the traffic increase become?
• Are short traffic spikes or sustained high traffic more important?
• Which operations can be processed asynchronously?
• Must the existing client-facing API contract remain unchanged?

I would start with the main request path. Web, mobile, and third-party clients send HTTPS API requests. The diagram also shows JWT or mTLS as caller security options. Requests first pass through Edge Protection and DDoS protection. This keeps abusive traffic from consuming application capacity. Valid traffic then continues to the API Gateway. The client-facing contract remains the same even when the system scales internally.

The API Gateway is the main traffic-control point. It handles AuthN/Z, which means authentication and authorization, plus rate limiting, request validation, caching, and quotas. Rate limiting stops one caller from consuming too much capacity. Quotas place broader usage limits on callers. The gateway also works with the Identity Provider through OIDC, OAuth 2.0, and JWKS. Token or key information flows to the gateway, and token validation is performed before protected traffic is accepted. The gateway then forwards the request to the .NET API service.

The diagram also shows separate HTTPS gRPC or REST exchanges between the gateway and Internal Services such as User, Billing, and Inventory services. These are supporting service-to-service paths and are not the client response path.

The receiving service is a stateless ASP.NET Core API running on Kestrel. Stateless means one request does not depend on private server state stored in one specific replica. That allows the service to scale horizontally by adding API Instance 1, Instance 2, through Instance N.

Inside the service, the middleware pipeline handles logging, validation, security, and correlation. Controllers or Minimal APIs receive the request. Validation and mapping can use System.Text.Json as shown in the diagram. Business logic uses task-based asynchronous work, which helps the service wait for I/O without holding a thread for the whole wait. Health checks help identify unhealthy instances.

The API service performs asynchronous I/O against the Primary Database through its connection pool. The database returns data back to the API service. The service can also perform cache get and set operations against the Distributed Cache, shown as Redis.

Caching reduces repeated database work for frequently requested data. This is useful when traffic increases because the database often becomes a bottleneck before stateless API instances do. The cache is an optimization, while the primary database remains the main persistent data store shown in the design.

I would not keep long-running processing inside the synchronous client request when it can be moved out. The .NET API service can publish work asynchronously to the Message Broker. The diagram shows RabbitMQ, Kafka, SQS, or EventBridge as broker choices.

Background Workers consume the queued work and handle processing, emails, or integrations. Queue buffering provides backpressure when work arrives faster than workers can process it. This protects the API from being overwhelmed and lets worker capacity scale independently.

For the synchronous path, the .NET API service sends its response back to the API Gateway. The gateway returns the response through Edge Protection and then to the client over HTTPS.

Cross-cutting concerns support the whole design. The diagram shows telemetry with OpenTelemetry, logging, metrics, health checks, logs, traces, and alerts. It also shows timeouts, retries, a circuit breaker, high availability across multiple availability zones or regions, rate limiting, queue buffering, and load shedding. These controls help the system stay useful under higher volume. The trade-off is more moving parts, higher cost, and more operational work, but callers keep the same API contract while the implementation scales behind it.

The benefit is that the public API contract stays unchanged while capacity grows behind it. Stateless ASP.NET Core instances are easy to add, but shared data must live outside one replica. Rate limiting, quotas, and load shedding protect the service, but some excess traffic may not be served immediately. Redis reduces repeated database work, but caching adds another system to operate. Async I/O improves concurrency, while the message broker and workers move long-running work away from the request path. That improves responsiveness, but queues and workers add complexity. Timeouts, retries, and circuit breakers improve resilience, but retries must be controlled so they do not create even more traffic. Multi-AZ or multi-region deployment improves availability but costs more. Observability adds operational work, but it is essential for finding bottlenecks during high volume.

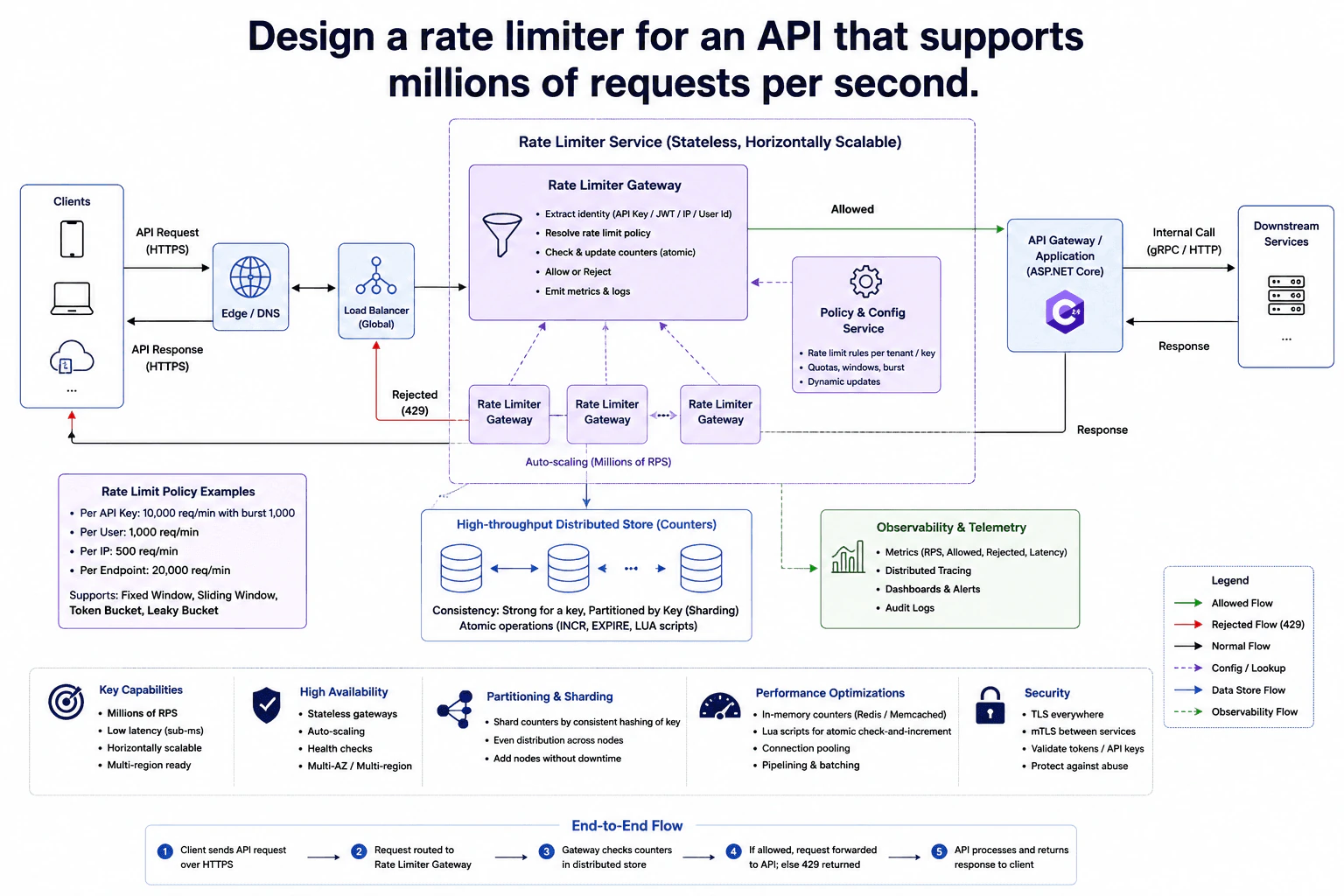

At a high level, I would place a stateless rate limiter before the ASP.NET Core application. Requests pass through Edge/DNS and the global load balancer to a Rate Limiter Gateway. The gateway identifies the caller, resolves its policy, and atomically checks distributed counters. Allowed requests continue to the application and downstream services. Requests over the limit return HTTP 429. I would shard counters by key and horizontally scale limiter instances. The main trade-off is accurate distributed enforcement versus the extra latency and cost of checking shared counters.

The goal is to stop one caller from sending too many requests while still serving millions of requests every second. The check must be fast because every request goes through it. Several machines may receive requests from the same caller, so they must make consistent limit decisions. The diagram solves this with many stateless rate-limiter instances, shared distributed counters, configurable policies, and separate allowed and rejected paths. Requests that pass the check reach the application. Requests that exceed their limit are stopped before they consume application or downstream capacity.

• What should define a limit: API key, user, IP, endpoint, or tenant?
• How strict must each per-key limit be across replicas?
• Should the limiter allow short traffic bursts?
• Do different tenants or API keys need different quotas?

I would keep the request path short. A client sends an HTTPS API request through Edge/DNS. The request reaches the global load balancer, which sends it to one of many Rate Limiter Gateway instances. These gateway instances are stateless and horizontally scalable. That means we can add replicas as traffic grows without depending on process-local state for the authoritative decision.

The Rate Limiter Gateway extracts the identity used for limiting. The diagram supports an API key, JWT, IP address, or user ID. It then resolves the matching rate-limit policy. The Policy & Config Service owns rules such as limits per tenant or key, quotas, windows, burst settings, and dynamic updates. This keeps policy management separate from the fast request-processing path.

The gateway next checks and updates the High-throughput Distributed Store. Counters are partitioned by key, so unrelated callers can be spread across different shards. Operations for one key are atomic. In simple terms, many concurrent requests cannot all read the same old counter value and incorrectly pass the limit.

The diagram shows atomic operations such as increment, expiry, and scripts. It also supports fixed window, sliding window, token bucket, and leaky bucket policies. Token bucket is useful when controlled bursts are acceptable. The chosen rule comes from the configured policy.

If the caller is within its limit, the gateway sends the allowed request to the API Gateway / Application running ASP.NET Core. The application can then make its internal gRPC or HTTP call to Downstream Services. The downstream response returns to the application, and the API response returns through the normal response path toward the client.

If the caller exceeds its limit, the limiter rejects the request with HTTP 429. The rejected request does not continue to the ASP.NET Core application. This protects both the application and its downstream services from excessive traffic.

I would run many stateless Rate Limiter Gateway instances and auto-scale them. The counter store is sharded by key, with the diagram calling out consistent hashing for distribution. This allows many unrelated counters to be processed in parallel while preserving strong handling for one key.

For performance, the diagram also shows in-memory counters, connection pooling, pipelining, and batching. These reduce overhead, but separate limiter replicas must not treat independent process memory as one shared authoritative counter.

The design uses TLS for traffic and mTLS between services where shown. API keys or tokens are validated before they are trusted as caller identity. High availability comes from stateless gateways, health checks, auto-scaling, and multi-AZ or multi-region deployment.

The limiter emits metrics and logs to Observability & Telemetry. Important signals include requests per second, allowed requests, rejected requests, and latency. Distributed tracing, dashboards, alerts, and audit logs help operators find failures and unusual traffic.

The main trade-off is accuracy versus latency and cost. A distributed atomic counter gives a strong per-key decision, but remote counter access adds work to every check. Local memory is faster, but separate replicas do not share the same heap state. I would therefore keep the gateways stateless, shard the authoritative counters by key, and use the shown performance optimizations without weakening the required limit behavior.

The benefit of this design is easy horizontal scaling. Rate Limiter Gateway instances are stateless, so more replicas can be added as request volume grows. Sharding spreads different counter keys across multiple store nodes. Atomic operations keep one key correct when many requests arrive at the same time. The downside is that checking a distributed store adds network work and latency. Local in-memory counters are faster, but separate processes do not share that state and could disagree. Token bucket can allow controlled bursts, while other window algorithms have different accuracy and traffic-shaping behavior. TLS and mTLS protect network communication, while API-key or token validation protects caller identity. Observability adds operational work, but it is needed to understand latency, allowed traffic, rejected traffic, and failures.

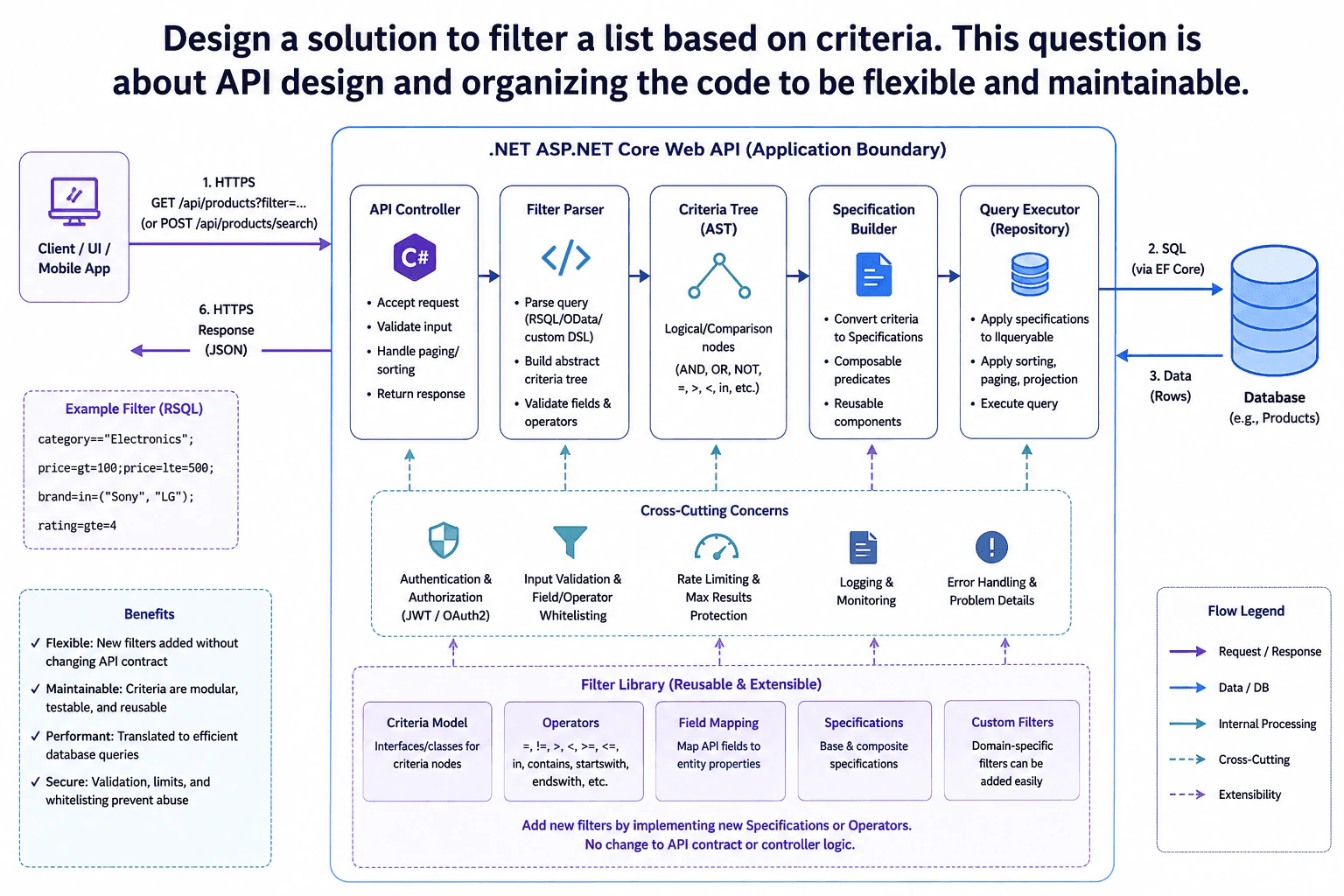

At a high level, I would keep the filtering API simple at the edge and flexible inside the service. The client sends HTTPS to GET /api/products?filter=... or POST /api/products/search. The API Controller validates the request, then the Filter Parser builds a Criteria Tree. The Specification Builder turns that tree into reusable predicates. The Query Executor applies them through EF Core, and the database returns matching rows. The API returns JSON to the client. I would whitelist fields and operators, enforce authentication, authorization, and limits, and accept more internal structure for better maintainability.

The goal is to let a client ask for only the products it needs. For example, it may want electronics within a price range. The main challenge is keeping this flexible without putting every possible filter inside the controller. We also want new filters to be easy to add later. The diagram solves this by breaking filtering into small steps. Each step has one clear job. The request moves through those steps, reaches the database, and then the matching data returns to the client.

• Which product fields should clients be allowed to filter?
• Which operators do we need, such as equals, greater than, or in?
• Should we support both the GET filter endpoint and the POST search endpoint?
• What limits should we place on page size and filter complexity?

I would keep the public API small and move filtering logic behind it. The client uses HTTPS and can call GET /api/products?filter=... or POST /api/products/search, exactly as shown in the diagram. The API Controller accepts the request. It validates input, handles paging and sorting, and later returns the response. The controller should not contain every filter rule. Its main job is to coordinate the request. This keeps the API contract stable while the filtering implementation can grow independently.

The API Controller passes the filter to the Filter Parser. The parser understands the supported filter syntax, such as RSQL, OData, or a custom DSL. A DSL is simply a small language used to describe filters. The diagram shows an RSQL example with category, price, brand, and rating conditions. The parser validates allowed fields and operators before building the internal representation. Field and operator whitelisting is important because clients should not be able to query arbitrary internal properties or unsupported operations.

The Filter Parser converts the request into a Criteria Tree, also called an AST. An AST is a structured tree that represents the meaning of the filter. Comparison nodes represent operations such as equals, greater than, less than, or in. Logical nodes combine conditions with AND, OR, and NOT. This gives the application one consistent internal model. It also separates filter syntax from the reusable filtering rules. That makes parsing and filtering easier to test independently.

Next, the Specification Builder converts the Criteria Tree into specifications. A specification is a reusable predicate that describes which records should match. Specifications can be combined, so category, price, brand, and rating rules do not need one large hard-coded method. The reusable Filter Library supports this design with a Criteria Model, Operators, Field Mapping, Specifications, and Custom Filters. New filters can be added by implementing new specifications or operators without changing the API contract or controller logic. This is the main maintainability benefit shown in the diagram.

The Query Executor, shown as the repository, applies the specifications to an IQueryable. It also applies sorting, paging, and projection before executing the query. EF Core translates the supported query expression into SQL and sends that SQL to the database. The database returns matching rows to the Query Executor. Keeping the query as IQueryable until execution allows supported filtering work to happen in the database instead of first loading the entire product list into application memory.

The matching data returns from the database to the Query Executor and then through the application to the API Controller. The controller returns the JSON response over HTTPS to the client. Several cross-cutting controls support the flow. Authentication and authorization use the JWT or OAuth2-based approach shown in the diagram. Input validation and field or operator whitelisting protect the filtering boundary. Rate limiting and maximum-result protection reduce abuse and overly expensive requests. Logging and monitoring provide operational visibility. Error Handling and Problem Details provide consistent error information. These controls support the request path without replacing the filtering components.

The benefit is flexibility. Criteria are modular, reusable, and testable. New filters can be added by extending specifications or operators instead of rewriting controller logic. Translating supported predicates into database queries can also improve performance. The downside is more internal structure. We now have a parser, criteria model, specification layer, field mappings, reusable operators, and query execution behavior to maintain. For a very small API with only one or two fixed filters, this may be more design than necessary. I would accept that cost when filtering requirements are expected to grow.

The benefit is that each part has one clear job. The API Controller handles the HTTP request. The Filter Parser understands filter text. The Criteria Tree represents what the filter means. The Specification Builder creates reusable predicates. The Query Executor applies them through EF Core. This makes new filters easier to add and test. The downside is extra code and more concepts for the team to understand. We also need strong validation because flexible filters can create expensive or unsafe queries. Whitelisting fields and operators reduces that risk. Rate limiting and maximum-result limits protect the service from abuse. Database-side filtering can improve performance, but complex predicates may still produce costly SQL. We accept the extra structure because it keeps growing filter logic out of the controller.

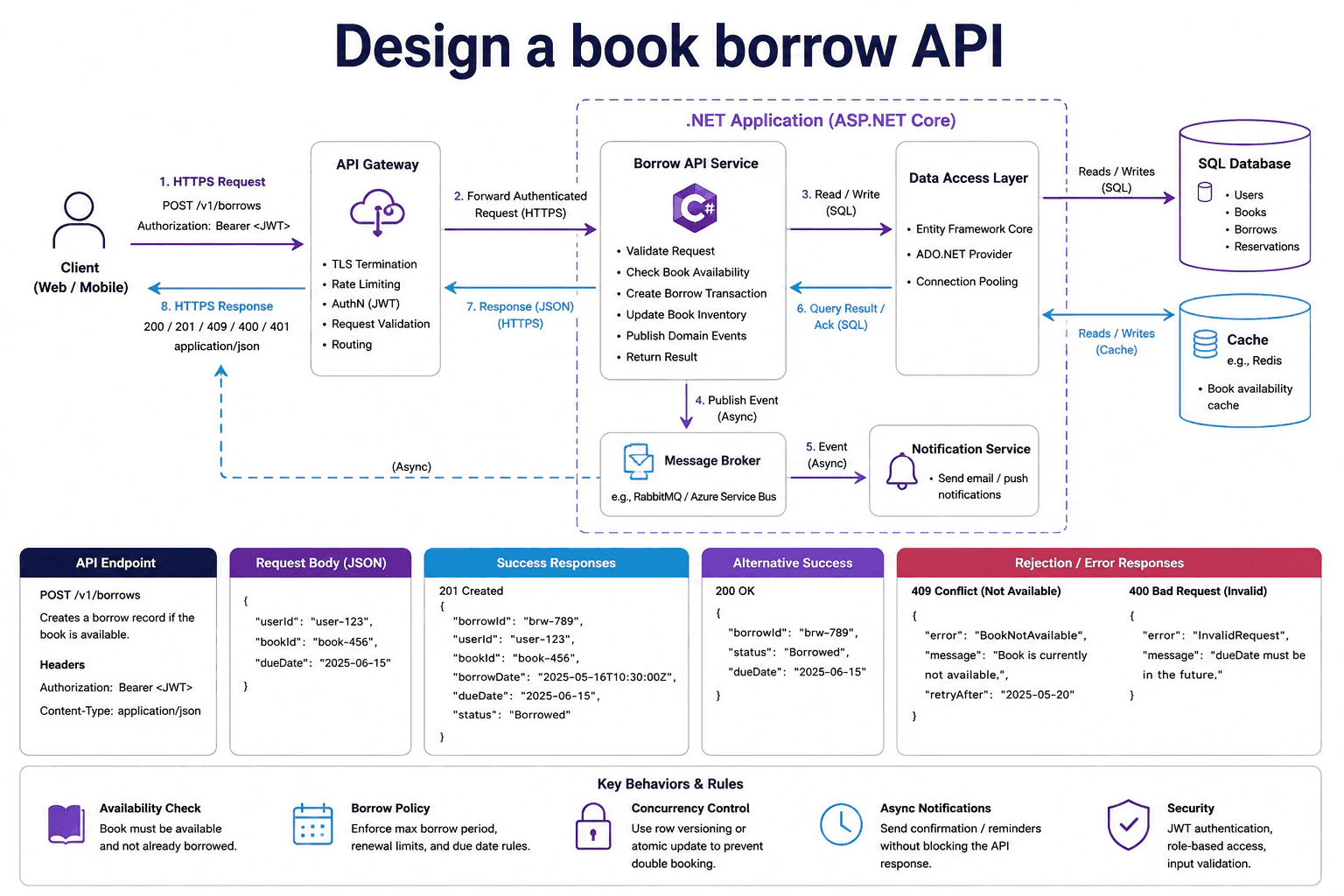

At a high level, I would expose POST /v1/borrows to create a borrow action when a book is available. The client sends a bearer JWT and JSON request through the API Gateway. The gateway handles TLS termination, rate limiting, JWT authentication, request validation, and routing. The Borrow API Service checks availability and borrowing rules, then uses the data layer to update SQL safely. Success returns 201 Created or 200 OK. Invalid input returns 400, unavailable state returns 409, and invalid authentication returns 401. The trade-off is faster reads and notifications with more operational complexity.

The goal is to let a person borrow a book through an application. The system must check that the request is valid and that the book can still be borrowed. It must save the new borrow and update the available inventory. The response should clearly tell the person whether the action worked or why it was rejected. The main challenge is keeping availability correct when several people try to borrow at the same time. The diagram shows the complete request, storage, response, security, cache, and notification flow.

• Can a user borrow only one physical copy of a book at a time?
• What maximum borrow period, renewal limits, and due-date rules should apply?
• Should 201 Created be the normal success response, with 200 OK used only for selected successful cases?

I would start with POST /v1/borrows because this operation creates a borrow record. The client is a web or mobile application. It sends the request over HTTPS with Authorization: Bearer <JWT> and Content-Type: application/json. The JSON body contains userId, bookId, and dueDate. The diagram example uses user-123, book-456, and 2025-06-15. These values identify the borrower, the requested book, and the requested return date.

The HTTPS request first reaches the API Gateway. The gateway terminates TLS, performs rate limiting, authenticates the JWT, validates the request, and routes it. JWT authentication checks whether the caller presents a valid token. The gateway then forwards the authenticated request to the Borrow API Service over HTTPS. The diagram includes 401 among the possible client responses, so missing or invalid authentication can be rejected before the borrow operation continues.

The Borrow API Service owns the borrowing workflow. It validates the request, checks book availability, creates the borrow transaction, updates book inventory, publishes domain events, and returns the result. The book must be available and not already borrowed. The service also applies the shown borrow policy, including maximum borrow period, renewal limits, and due-date rules. Security also includes role-based access and input validation. For example, a due date in the past is invalid and produces 400 Bad Request with an InvalidRequest error.

The service uses the Data Access Layer for persistence work. The diagram shows Entity Framework Core, an ADO.NET provider, and connection pooling inside this layer. It reads and writes the SQL Database, which contains Users, Books, Borrows, and Reservations. The data path also reads and writes the book-availability cache, such as Redis. The cache makes availability reads faster, but the durable borrow and inventory state belongs in SQL. This separation keeps the main stored state reliable while still allowing faster availability access.

The important correctness rule is concurrency control. Two requests may arrive almost together for the final available copy. A simple read followed by an unprotected write could let both requests succeed. The diagram therefore uses row versioning or an atomic update to prevent double booking. Only one request should successfully change the inventory state. The other request observes the conflict and can return 409 Conflict. This keeps the borrow record and available inventory consistent under concurrent requests.

The Borrow API Service returns its JSON result back through the API Gateway. The gateway then sends the HTTPS response to the client. A new borrow can return 201 Created with borrowId, userId, bookId, borrowDate, dueDate, and status. The diagram also shows 200 OK as an alternative success response containing borrowId, status, and dueDate. When the book is unavailable, the API returns 409 Conflict with BookNotAvailable, a message, and retryAfter. Invalid input returns 400 Bad Request. Authentication failure can return 401.

After the borrow is created, the Borrow API Service publishes a domain event asynchronously to the Message Broker. The diagram gives RabbitMQ and Azure Service Bus as examples. The broker sends the event to the Notification Service. That service sends email or push notifications, such as confirmations or reminders. This work does not need to block the main API response. The benefit is a faster client-facing request. The downside is extra infrastructure and asynchronous processing that must be operated separately.

The API itself is small, but a few design choices matter. POST /v1/borrows clearly represents creating a borrow record. JWT authentication, role-based access, rate limiting, and input validation protect the operation. The 400, 401, and 409 responses tell the client why a request failed. A cache can make book-availability reads faster, but cached information may become stale. The SQL update therefore still needs concurrency control. Row versioning or an atomic update prevents two users from borrowing the same final copy. The message broker moves email and push notifications outside the main response path. The benefit is faster requests. The downside is more moving parts, including a cache and broker, which increase consistency and operational work.

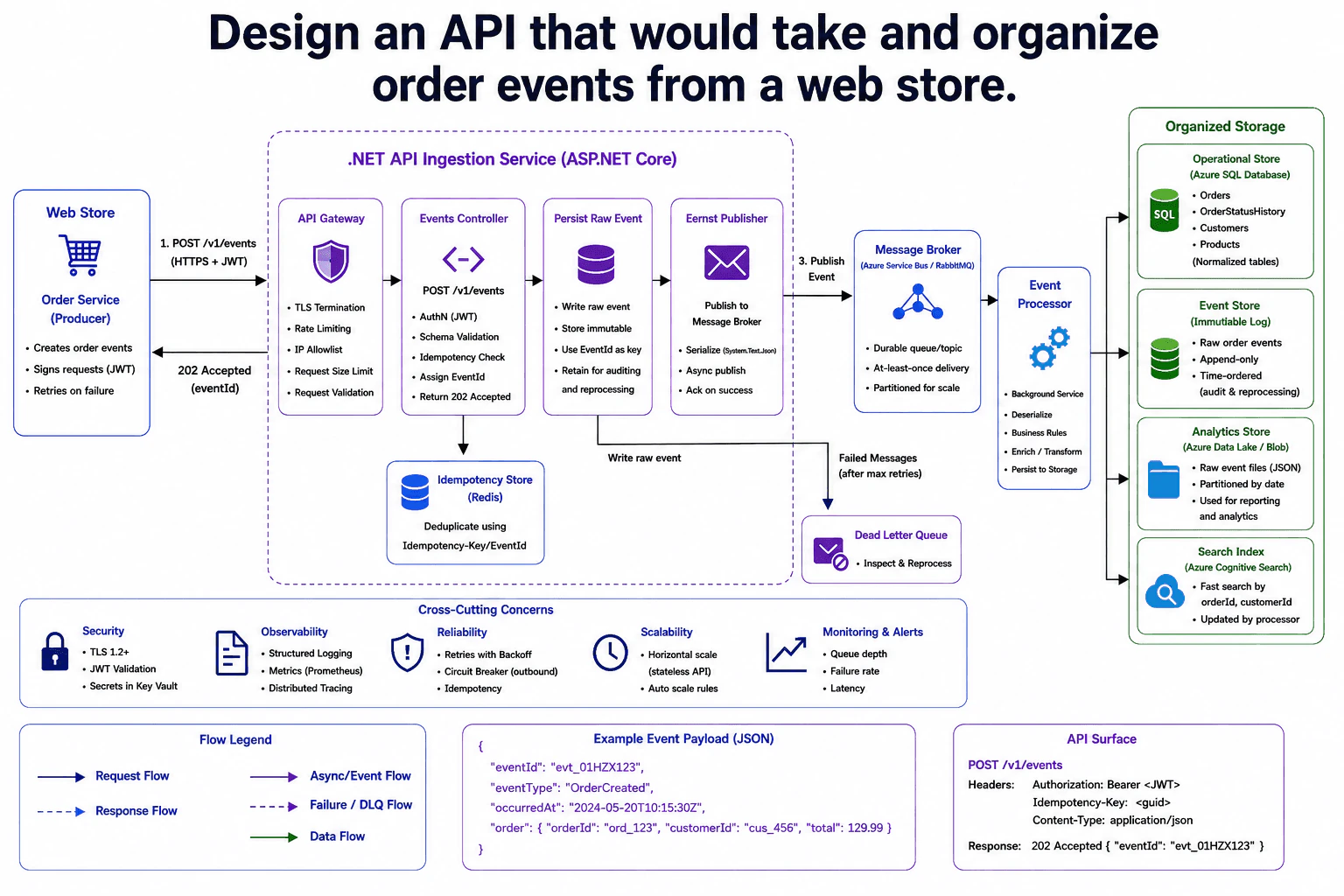

At a high level, I would use one ASP.NET Core ingestion API to receive order events and process them asynchronously. The web store sends POST /v1/events over HTTPS with a Bearer JWT and an idempotency key. The gateway applies transport and request controls. The controller authenticates, validates, deduplicates, and assigns an EventId. The raw event is retained, then the publisher sends it through a durable message broker. A background processor organizes the data for operations, analytics, and search. The trade-off is better reliability and scaling at the cost of more infrastructure.

The goal is to collect order changes from a web store and keep them useful after they arrive. An order can be created and then change many times. We need a simple way for the store to send each change. We should avoid treating the same event twice when a request is retried. We also should not make the web request wait for every later processing step. The diagram solves this by accepting an event, checking it, retaining it, sending it through reliable messaging, and organizing the result in different stores.

• How many order events should the system handle during peak traffic?
• Do events for the same order need to stay in order?
• How long should raw order events be retained?

I would start with one clear ingestion endpoint. The Web Store sends POST /v1/events over HTTPS. The request is JSON. The API surface shows Authorization: Bearer <JWT>, Idempotency-Key: <guid>, and Content-Type: application/json.

The request first reaches the API Gateway. The gateway terminates TLS, applies rate limiting, checks the IP allowlist, limits request size, and performs request validation. The diagram also shows TLS 1.2 or later and secrets stored in Key Vault as security concerns.

The request then reaches the Events Controller inside the ASP.NET Core ingestion service. The controller authenticates the JWT and validates the event schema. Authentication means checking that the caller has a valid identity.

The controller also performs an idempotency check. Idempotency means a retry should not create another independent event. Redis is the Idempotency Store. The diagram says it deduplicates using the Idempotency-Key or EventId. The controller assigns an EventId for a new event.

The success response is 202 Accepted with the EventId. This means intake succeeded and later asynchronous work can continue after the HTTP request finishes.

The next step is Persist Raw Event. The diagram shows the raw event as immutable and keyed by EventId. It is retained for auditing and reprocessing.

The Organized Storage area contains an Event Store (Immutable Log). It contains raw order events in append-only, time-ordered form. This gives the system a history that can be inspected or replayed without changing the original records.

After the persistence step, the publisher sends the event to the Message Broker. The diagram labels this component Ernst Publisher. Its shown responsibilities are publishing to the broker, serializing with System.Text.Json, publishing asynchronously, and acknowledging success.

The Message Broker is shown as Azure Service Bus or RabbitMQ. It provides a durable queue or topic, at-least-once delivery, and partitioning for scale. At-least-once delivery means an event can occasionally be delivered more than once. That is why idempotent handling remains important.

The Event Processor is a background service. It consumes events, deserializes them, applies business rules, enriches or transforms data, and persists results to storage.

The Operational Store uses Azure SQL Database. It organizes data such as orders, order-status history, customers, and products. The Analytics Store uses Azure Data Lake or Blob storage for raw JSON files, reporting, and analytics. The Search Index uses Azure Cognitive Search for fast lookup by values such as orderId and customerId. The Event Store keeps the immutable event history.

The diagram shows failed messages moving to a Dead Letter Queue after maximum retries. The DLQ holds poison messages for inspection and reprocessing instead of retrying them forever.

The reliability controls include retries with backoff, an outbound circuit breaker, and idempotency. Observability includes structured logging, Prometheus metrics, and distributed tracing. Monitoring tracks queue depth, failure rate, and latency.

The ASP.NET Core API is shown as stateless and able to scale horizontally. Autoscale rules can add instances when load increases. The durable broker separates incoming traffic from background processing.

The benefit is better resilience and easier scaling during traffic spikes. The downside is more operational complexity. We now operate Redis, a message broker, background processing, several data stores, monitoring, retries, and DLQ recovery. For an order-event system, that extra complexity is reasonable because durable asynchronous processing is valuable.

The benefit is that the HTTP API performs only the intake work before returning 202 Accepted. The message broker then separates the web request from slower background processing. This helps during traffic spikes because events can wait safely in the durable queue. Idempotency reduces duplicate processing when requests or broker deliveries repeat. Keeping immutable raw events also helps auditing and reprocessing. The downside is extra operational work. The design needs a gateway, Redis, a broker, a background processor, and several storage systems. At-least-once delivery can produce duplicate deliveries, so processing must remain idempotent. Rate limiting and request-size limits protect the API. Retries with backoff help temporary failures, while the DLQ isolates messages that continue failing.

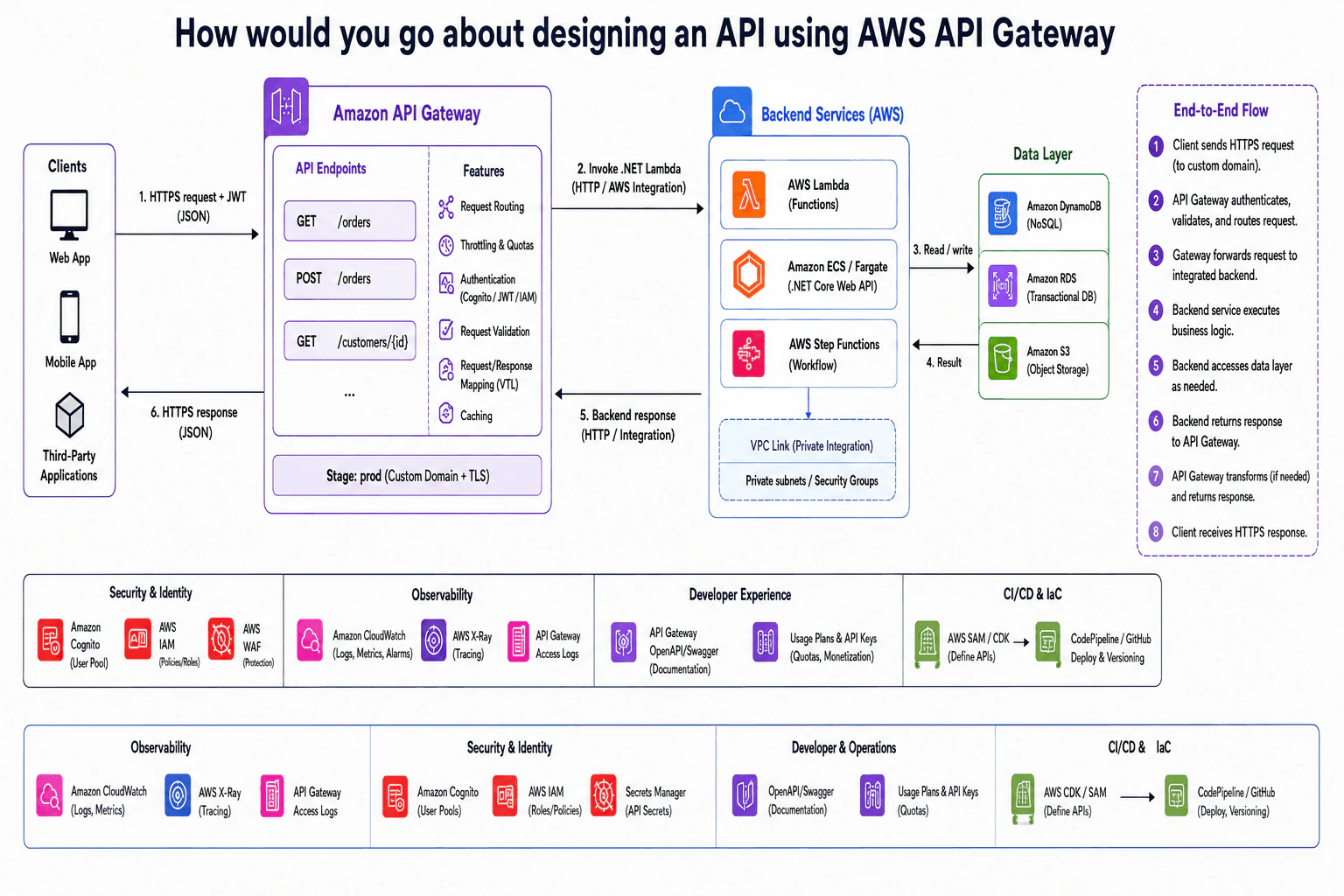

At a high level, I would use Amazon API Gateway as the public front door for the API. Web, mobile, and third-party clients send HTTPS JSON requests with a JWT. API Gateway routes requests such as GET /orders, POST /orders, and GET /customers/{id}. It also handles authentication, request validation, throttling, quotas, caching, and mapping. The request then reaches an AWS backend such as a .NET Lambda function, which performs business logic and accesses the data layer. The response returns through API Gateway. The benefit is centralized API control, while the trade-off is extra gateway and integration configuration.

This question asks how I would put one safe front door in front of several backend services. Clients should not need to know where each backend runs. They should call one API, and that API should decide where each request goes. It should also check important rules before allowing the request through. The backend then performs the real work and accesses stored data. Finally, the result comes back through the same public API. I would explain the design in the same order shown in the diagram.

• Which clients will use the API: web, mobile, third-party applications, or all three?
• Which routes should use Lambda, ECS/Fargate, Step Functions, or another integration?
• Which routes need authentication, throttling, caching, or private backend connectivity?

I would start by making Amazon API Gateway the client-facing entry point. The diagram shows web, mobile, and third-party applications calling it over HTTPS. The request carries JSON and a JWT.

The production stage uses a custom domain with TLS. Clients therefore call one stable API address instead of connecting directly to individual backend services.

The visible routes are GET /orders, POST /orders, and GET /customers/{id}. API Gateway owns request routing. It decides which configured integration should receive each accepted request.

API Gateway applies common API controls before the backend executes business logic. The diagram shows authentication using Cognito, JWT, or IAM. Authentication means checking who the caller is.

The gateway also performs request validation. This checks whether the incoming request has the expected structure. Throttling and quotas control how much traffic callers can send. Caching can reduce repeated backend work when appropriate. Request and response mapping can transform data for an integration when needed.

If authentication or request validation fails, the request should not continue to the backend. The diagram does not show specific failure status codes, so I would not invent them.

After the gateway accepts the request, it forwards the request through an AWS integration. The main request arrow is labeled HTTP / AWS Integration.

The backend-services area shows three possible targets: AWS Lambda functions, Amazon ECS / Fargate running a .NET Core Web API, and AWS Step Functions for workflows. The main numbered flow specifically shows API Gateway invoking the .NET Lambda integration.

The backend owns business logic. API Gateway should handle gateway concerns, while application rules stay inside the backend service.

The diagram also shows VPC Link together with private subnets and security groups as a private-integration option. This can be used when a backend must stay private rather than being directly reachable from clients.

After receiving a valid request, the backend can read or write application data. The data layer contains Amazon DynamoDB, Amazon RDS, and Amazon S3.

DynamoDB represents NoSQL data. RDS represents transactional relational data. S3 represents object storage. The backend owns these data operations. Clients do not directly access these stores through the public request path.

The diagram shows a read or write operation moving from the backend-services side toward the data layer. It also shows the result returning from the data layer toward the backend.

After the backend finishes its work, it returns a backend response toward Amazon API Gateway. The gateway can apply response mapping if the integration needs it.

API Gateway then sends an HTTPS JSON response back to the original client. This keeps the public response path consistent with the request path. The backend does not bypass API Gateway when replying to the caller.

The security area shows Amazon Cognito, AWS IAM, and AWS WAF. Cognito can provide user identity. IAM provides AWS roles and policies. WAF adds protection against unwanted web traffic patterns.

The observability area shows Amazon CloudWatch, AWS X-Ray, and API Gateway access logs. CloudWatch provides logs, metrics, and alarms. X-Ray provides tracing. Access logs record activity at API Gateway. These tools observe the request flow. They do not own the business response.

The diagram also includes OpenAPI or Swagger documentation, usage plans and API keys, AWS SAM or CDK, and CodePipeline or GitHub deployment and versioning. These tools help teams describe, deploy, and operate the API consistently.

The benefit is central control over routing, authentication, validation, traffic limits, and monitoring. Backend services can focus on business logic and data access. The downside is more configuration. Teams must understand gateway routes, integrations, identity settings, deployment stages, and private connectivity when they use it.

The benefit is that API Gateway gives all clients one controlled entry point. Routing, authentication, validation, throttling, quotas, caching, and mapping can happen before a request reaches the backend. This keeps common API concerns in one place. The .NET backend can focus on business logic and data access. CloudWatch, X-Ray, and access logs make the system easier to observe. The downside is extra configuration. Teams must manage routes, integrations, identity settings, and deployments. Lambda is useful for function-based work. ECS/Fargate fits a .NET Web API that runs as a service. The diagram also shows VPC Link and private networking for private backends. That improves isolation, but it adds networking and operational work.

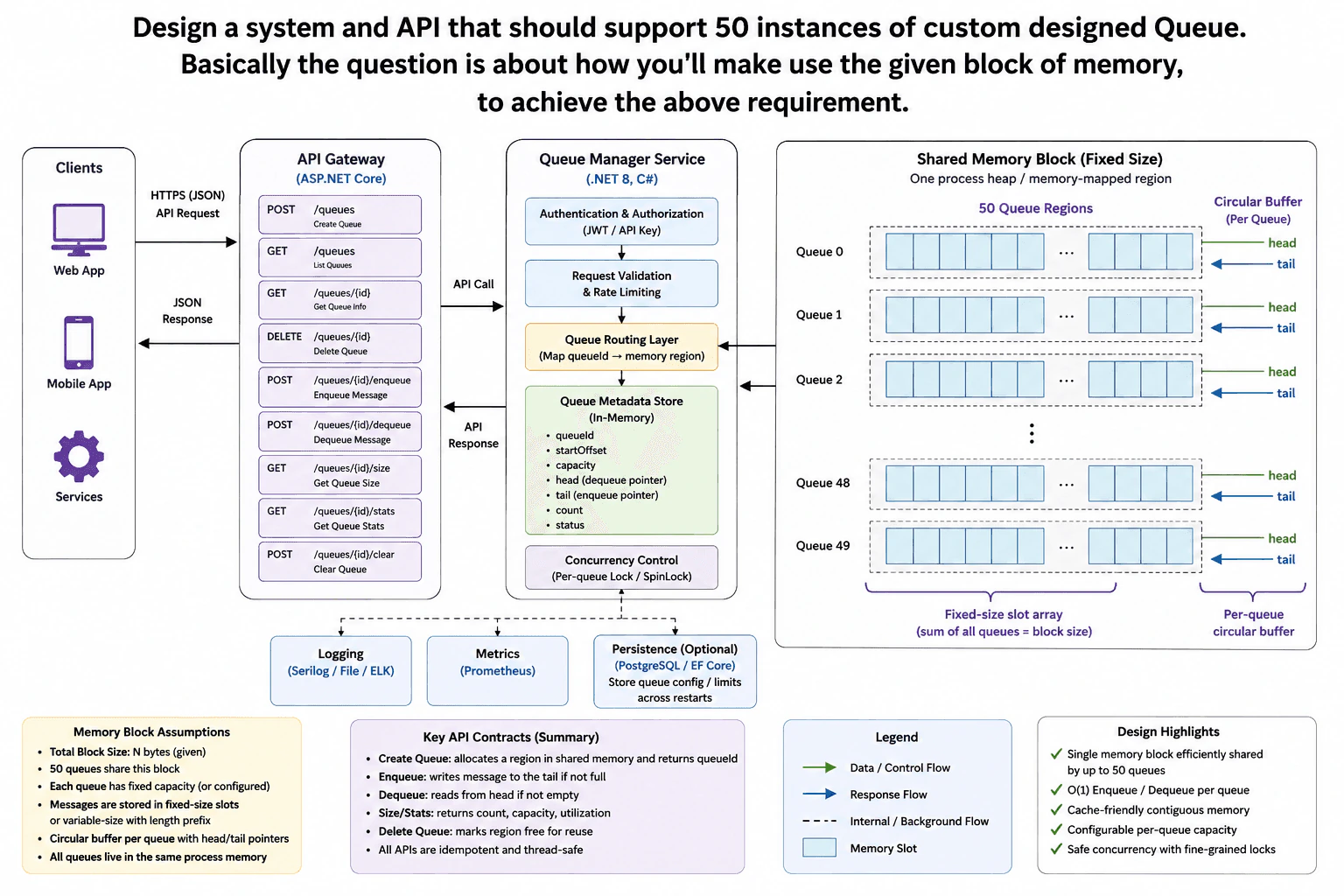

At a high level, I would expose a queue API while keeping all 50 queues inside one fixed memory block. Clients send HTTPS JSON requests to the ASP.NET Core API Gateway, which forwards valid calls to the .NET 8 Queue Manager Service. A routing layer maps each queue ID to its memory region, while metadata tracks offset, capacity, head, tail, and count. Each queue uses a circular buffer and per-queue locking. The response returns through the gateway. The trade-off is predictable, fast memory use versus fixed capacity and stricter memory management.

The question asks us to support 50 separate queues while using one limited block of memory. We should not create an unrelated memory area for every queue. Instead, the queues share the available block in a controlled way. The API must let clients create queues, inspect them, add messages, remove messages, clear queues, and delete them. The main challenge is keeping every queue separate and safe while sharing the same storage. The diagram solves this with queue regions, small metadata records, circular buffers, and per-queue concurrency control.

• Is the total memory-block size fixed before the service starts?
• Should all 50 queues have equal capacity, or may capacities differ?
• Are messages fixed-size, or may they use a length prefix?
• Must queue configuration survive a process restart?

I would start with the public API. Web apps, mobile apps, and services send HTTPS JSON requests to the ASP.NET Core API Gateway.

The diagram shows POST /queues, GET /queues, GET /queues/{id}, DELETE /queues/{id}, POST /queues/{id}/enqueue, POST /queues/{id}/dequeue, GET /queues/{id}/size, GET /queues/{id}/stats, and POST /queues/{id}/clear.

The gateway forwards the API call to the Queue Manager Service. The service response returns to the gateway, and the gateway returns JSON to the client.

The Queue Manager Service first performs Authentication & Authorization using JWT or an API key. Authentication checks who the caller is. Authorization checks whether that caller may perform the requested operation.

Request Validation & Rate Limiting then checks the request before shared memory is changed. Rate limiting protects the service from excessive calls.

The Queue Routing Layer maps a queue ID to its assigned region inside the shared memory block.

The Queue Metadata Store keeps queueId, startOffset, capacity, head, tail, count, and status. startOffset tells the service where the queue begins. head points to the next item to remove. tail points to where the next item is added. count tracks the current number of messages.

The core design is the Shared Memory Block. The diagram shows one fixed-size block in one process heap or a memory-mapped region.

The block contains 50 queue regions, from Queue 0 through Queue 49. Each queue uses a circular buffer. When the tail reaches the end of its region, it wraps back to the beginning if space is available.

The sum of the queue regions must fit inside the given block. Messages may use fixed-size slots or variable-size storage with a length prefix, as shown in the assumptions.

For POST /queues/{id}/enqueue, the service writes at the tail when that queue is not full. For POST /queues/{id}/dequeue, it reads from the head when the queue is not empty.

GET /queues/{id}/size returns the current size. GET /queues/{id}/stats returns queue statistics. POST /queues/{id}/clear clears a queue. DELETE /queues/{id} removes it and makes its region reusable. GET /queues/{id} returns queue information, while GET /queues lists queues.

The diagram uses a per-queue Lock or SpinLock. This keeps concurrent operations from corrupting that queue's head, tail, count, or message slots. Enqueue and dequeue should not be described as naturally idempotent unless a separate deduplication contract exists, because repeating either operation can change queue state again.

Logging, Metrics, and optional Persistence are supporting paths. Logging may use Serilog, files, or ELK. Metrics may use Prometheus. Optional persistence can store queue configuration and limits in PostgreSQL, with EF Core as the data-access layer shown in the diagram.

Circular-buffer enqueue and dequeue are O(1) per queue. The main benefit is predictable memory usage and cache-friendly storage. The downside is that each queue is limited by its assigned capacity, so unused space in one region cannot automatically help another queue without changing the memory-layout policy.
