Google .NET Developer Interview Questions & Answers

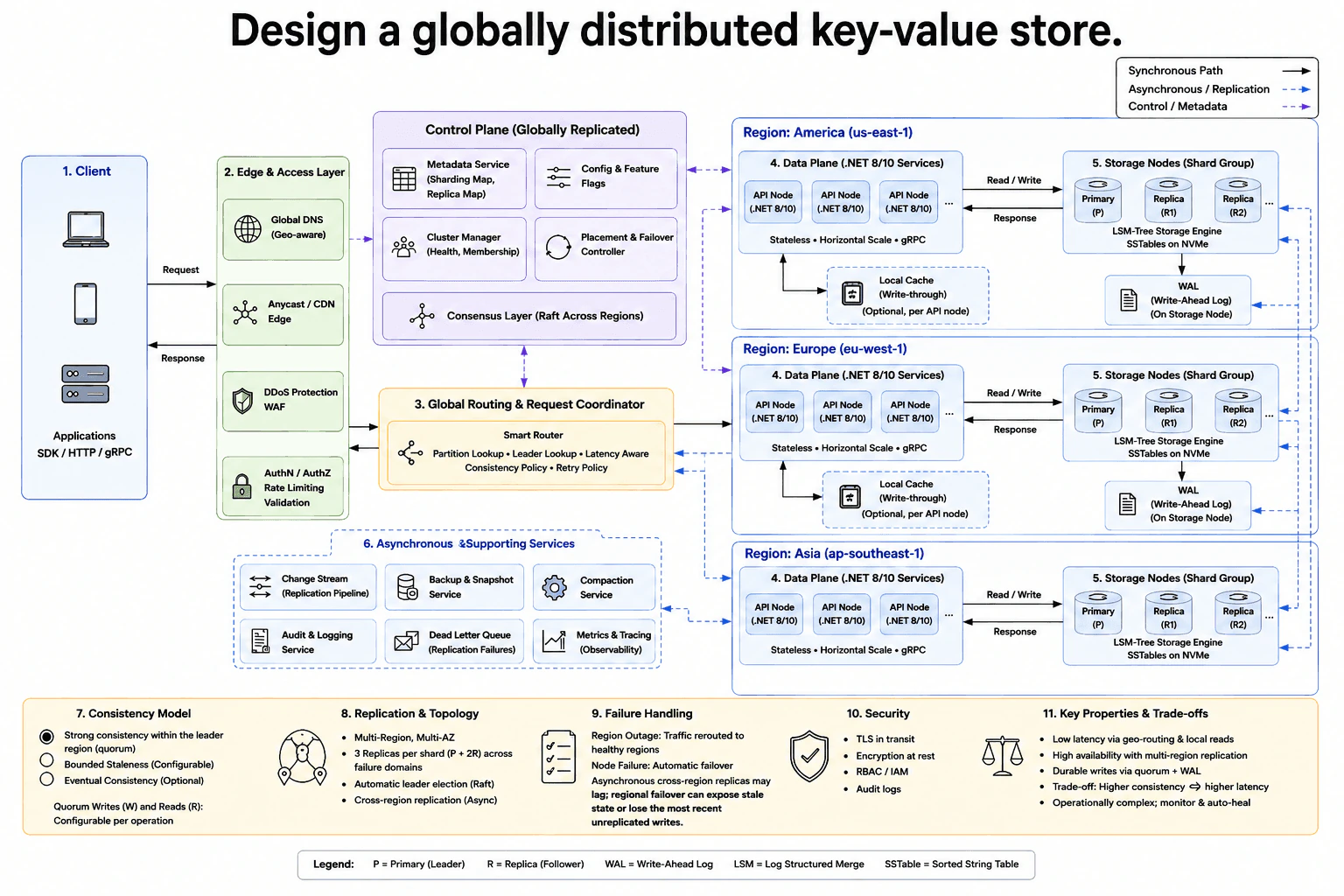

At a high level, the goal is to store key-value data safely across several regions. The main challenge is keeping local reads and writes fast while handling failures correctly. I would explain the global routing path, the regional storage path, and cross-region replication. Requests go through the Edge & Access Layer and Smart Router to stateless .NET services. Each shard has a primary, replicas, quorum operations, and a WAL. Cross-region replication is asynchronous, so regional failover can expose stale data or lose recent unreplicated writes.

The goal is to store a value under a key and find that value from different parts of the world. The service should stay available when a server, storage node, or region has trouble. The hard part is keeping normal requests fast without pretending every region always has the newest copy. The diagram solves this by routing requests to regional .NET services, splitting data into shards, keeping several copies of each shard, and copying changes between regions in the background. It also lets each operation choose how strict its read and write rules should be.

1. Which operations need strong consistency within the leader region?
2. Can some reads accept slightly old data from another region?
3. Can we accept losing recent writes that were not copied before a full regional failure?
4. Should quorum read and write settings be configurable per operation?

I would start with the global request path. A client sends a request to the Edge & Access Layer. Global DNS is geo-aware, and the Anycast / CDN Edge helps send traffic toward a suitable region.

This layer also shows DDoS protection, a WAF, authentication, authorization, rate limiting, and validation. The Global Routing & Request Coordinator then handles the routing decision. Its Smart Router uses the partition lookup, leader lookup, latency information, consistency policy, and retry policy before choosing the regional Data Plane.

Each region contains stateless .NET 8/10 API services. Stateless means the API process does not own the durable key-value data. More API nodes can therefore be added horizontally when traffic grows.

The regional API layer can also use a Local Cache. The diagram marks this cache as optional, per API node, and write-through. It is a speed layer only. The durable data still belongs to the Storage Nodes.

The Data Plane sends reads and writes to the Storage Nodes for the selected shard. Each shard group contains one Primary and two Replicas. The three copies are placed across failure domains.

The storage engine uses an LSM-tree design with SSTables on NVMe. Writes also use a Write-Ahead Log, or WAL, on the storage node. The WAL records a durable write before normal storage processing completes.

Quorum writes and reads are configurable per operation. The diagram supports strong consistency within the leader region when the required quorum is used. It also shows bounded staleness and an optional weaker mode for operations that can accept older data.

The Control Plane is globally replicated. It contains the Metadata Service, Config & Feature Flags, Cluster Manager, Placement & Failover Controller, and a Raft-based Consensus Layer across regions. These components keep the sharding map, replica map, membership, placement, and configuration coordinated.

Cross-region data replication is asynchronous. That means a remote region may receive a change slightly later. The Change Stream is the replication pipeline. The Dead Letter Queue holds replication failures that need later handling.

If a storage node fails, another replica can take over. Raft supports automatic leader election. If an entire region becomes unhealthy, traffic can be routed to another healthy region.

The important limitation is that asynchronous cross-region replicas may lag. After regional failover, a read may therefore return stale data. The system may also lose the newest writes that had not reached another region yet.

Backup & Snapshot, Compaction, Audit & Logging, and Metrics & Tracing support operations. Security includes TLS in transit, encryption at rest, RBAC / IAM, and audit logs. The main trade-off is clear: stronger consistency needs more coordination and usually increases latency.

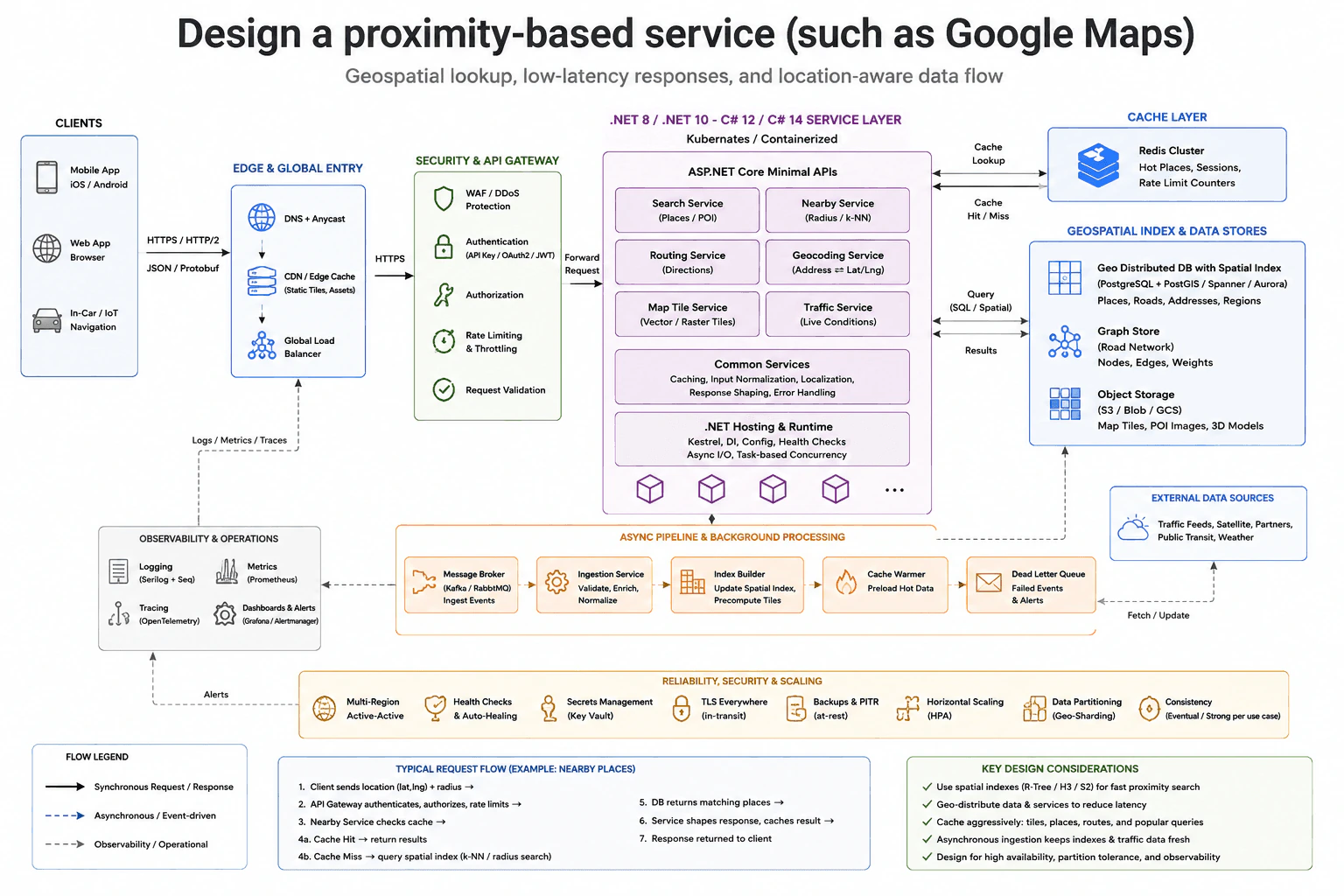

At a high level, this service finds places, routes, and map information near a user’s location. The main challenge is keeping nearby searches fast while location and traffic data keep changing. I would explain three flows: the normal request path, the cache and geospatial lookup path, and the background update path. Requests pass through global routing and security into .NET services. Redis handles common lookups, while spatial and graph stores handle deeper searches. The trade-off is faster reads versus slightly older cached data.

The goal is to help a user find places, routes, map tiles, and traffic information around a location. The difficult part is returning useful results quickly while roads, places, and traffic can change. The diagram separates normal user requests from slower data updates. Fast requests use the CDN and Redis Cluster when possible. Nearby searches use a spatial index when the cache misses. Routing can use road-network data. External feeds are processed in the background, so updating map data does not slow the normal user request.

1. Which features matter most: nearby places, routing, geocoding, or map tiles?
2. How fresh must traffic and location updates be?
3. Should the service support many geographic regions from the start?

I would start with the normal request path. Mobile, web, and in-car clients send requests using HTTPS. DNS + Anycast sends users toward a nearby entry point. Anycast means the same network address can be reached from several locations.

The CDN / Edge Cache serves static tiles and assets when possible. The Global Load Balancer routes remaining requests toward healthy service instances. The Security & API Gateway layer then applies WAF / DDoS Protection, Authentication, Authorization, Rate Limiting & Throttling, and Request Validation.

The request enters the containerized ASP.NET Core Minimal APIs service layer. The diagram separates Search Service, Nearby Service, Routing Service, Geocoding Service, Map Tile Service, and Traffic Service.

For example, a nearby search sends location coordinates and a radius to Nearby Service. Shared Common Services handle caching, input normalization, localization, response shaping, and error handling. The .NET Hosting & Runtime layer uses Kestrel, dependency injection, configuration, health checks, and Task-based asynchronous I/O.

For a nearby-places request, Nearby Service checks the Redis Cluster first. Redis keeps hot places and other frequently used data. On a cache hit, the service can shape the result and return it quickly.

If the cache misses, the service queries the Geo Distributed DB with Spatial Index. The spatial index can use structures such as R-Tree, H3, or S2 to narrow the search area. The database returns matching places. Nearby Service shapes the response, saves the useful result in Redis, and returns the response to the client.

Routing Service can use the Graph Store, which holds road-network nodes, edges, and weights. Object Storage keeps map tiles, POI images, and 3D models.

I would keep data ingestion away from the main user request. The Message Broker accepts ingest events. Ingestion Service validates, enriches, and normalizes them. Index Builder updates the spatial index and precomputes tiles. Cache Warmer preloads hot data.

Failed background events can be moved to the Dead Letter Queue for later handling. External Data Sources include traffic feeds, satellite data, partners, public transit, and weather. This work happens separately from the main synchronous request path.

The .NET services can scale horizontally by adding replicas. Horizontal Scaling uses HPA, and Health Checks & Auto-Healing help replace unhealthy instances. Multi-Region Active-Active keeps service capacity in more than one region. Data Partitioning uses Geo-Sharding, which divides data by geographic area.

TLS Everywhere protects traffic in transit. Secrets Management protects credentials. Backups & PITR support recovery. Observability & Operations uses logging, metrics, tracing, dashboards, and alerts.

The main trade-off is speed versus freshness. Cached data and background updates make reads fast, but some information may be a little old. The diagram therefore allows Eventual or Strong consistency depending on the use case.

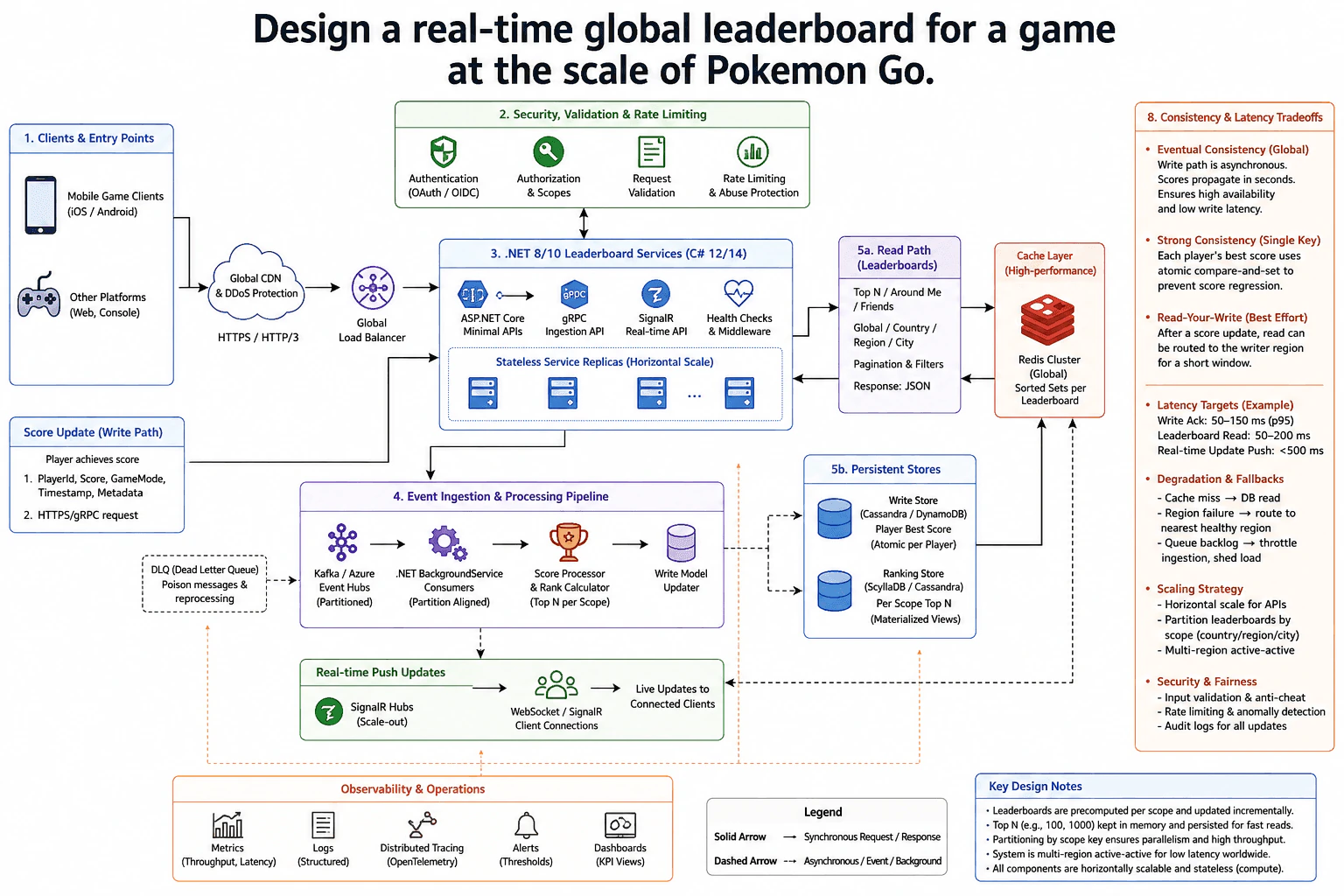

At a high level, this system keeps game leaderboards fast while scores change around the world. The main challenge is accepting score updates quickly without making every global rank update synchronous. I would explain three flows: score submission, leaderboard reads, and background rank processing. Stateless .NET services accept traffic, partitioned events drive ranking updates, persistent stores keep score data, Redis serves fast sorted reads, and SignalR pushes changes. The trade-off is that global rankings can lag recent scores by a short time.

The goal is to show players fast and useful rankings while scores arrive from many places at once. A player may want the global Top N, nearby ranks, friends, or a country, region, or city leaderboard. The difficult part is ordering changing scores without making every request wait for worldwide coordination. The diagram handles this by separating score submission from background ranking work. It also keeps common leaderboard reads in a fast cache and pushes important changes to connected players after the ranking data is updated.

1. Which leaderboard scopes are required: global, country, region, city, friends, or around-me?
2. How quickly must a new score appear in the global ranking?
3. Should each player keep only their best score for a leaderboard?
4. Is a short delay acceptable for global ordering if score submission stays fast?

I would start by protecting and spreading incoming traffic. Mobile game clients and other platforms connect through the Global CDN & DDoS Protection layer. The Global Load Balancer then sends requests to healthy service replicas.

Authentication uses OAuth or OIDC. Authorization & Scopes check what the caller can do. Request Validation rejects bad input. Rate Limiting & Abuse Protection helps control abusive traffic.

The .NET 8/10 Leaderboard Services include ASP.NET Core Minimal APIs, a gRPC Ingestion API, SignalR real-time APIs, and Health Checks & Middleware. Their replicas are stateless, so the compute layer can scale horizontally.

For a score update, the client sends PlayerId, Score, GameMode, Timestamp, and Metadata over HTTPS or gRPC. The accepted update enters Kafka or Azure Event Hubs, which provides a partitioned event stream.

.NET BackgroundService Consumers process the stream. The Score Processor & Rank Calculator updates the Top N result for each leaderboard scope. The Write Model Updater then updates the persistent data.

The Write Store uses Cassandra or DynamoDB for each player's best score. An atomic compare-and-set prevents a worse score from replacing a better one. The Ranking Store uses ScyllaDB or Cassandra for per-scope Top N materialized views, which means ranking results are prepared ahead of reads and updated incrementally.

For reads, the system supports Top N, Around Me, Friends, Global, Country, Region, and City views. The read path also supports pagination and filters.

Redis Cluster keeps sorted sets per leaderboard. This gives the service a fast way to return ordered leaderboard data. The response is JSON. If the cache misses, the diagram allows a database read instead of making Redis the only copy of the data.

SignalR Hubs scale out the push path. WebSocket or SignalR client connections receive live leaderboard changes without repeatedly polling the service.

Metrics track throughput and latency. Structured Logs, OpenTelemetry distributed tracing, Alerts, and KPI Dashboards help operators find failures. Poison messages can be kept in the DLQ for later reprocessing instead of repeatedly blocking normal event processing.

Global ranking uses eventual consistency, which means a new score may take a short time to appear everywhere. The diagram targets roughly 50-150 ms p95 for the write acknowledgement, 50-200 ms for leaderboard reads, and under 500 ms for real-time push updates.

For better read-your-write behavior, a recent read can temporarily go to the writer region. A cache miss falls back to the database. Region failure sends traffic to the nearest healthy region. Queue backlog causes throttling or load shedding.

The system partitions leaderboards by scope and uses multi-region active-active operation. The main trade-off is simple: we accept a small delay in global ordering to gain lower latency, high availability, and worldwide scale.

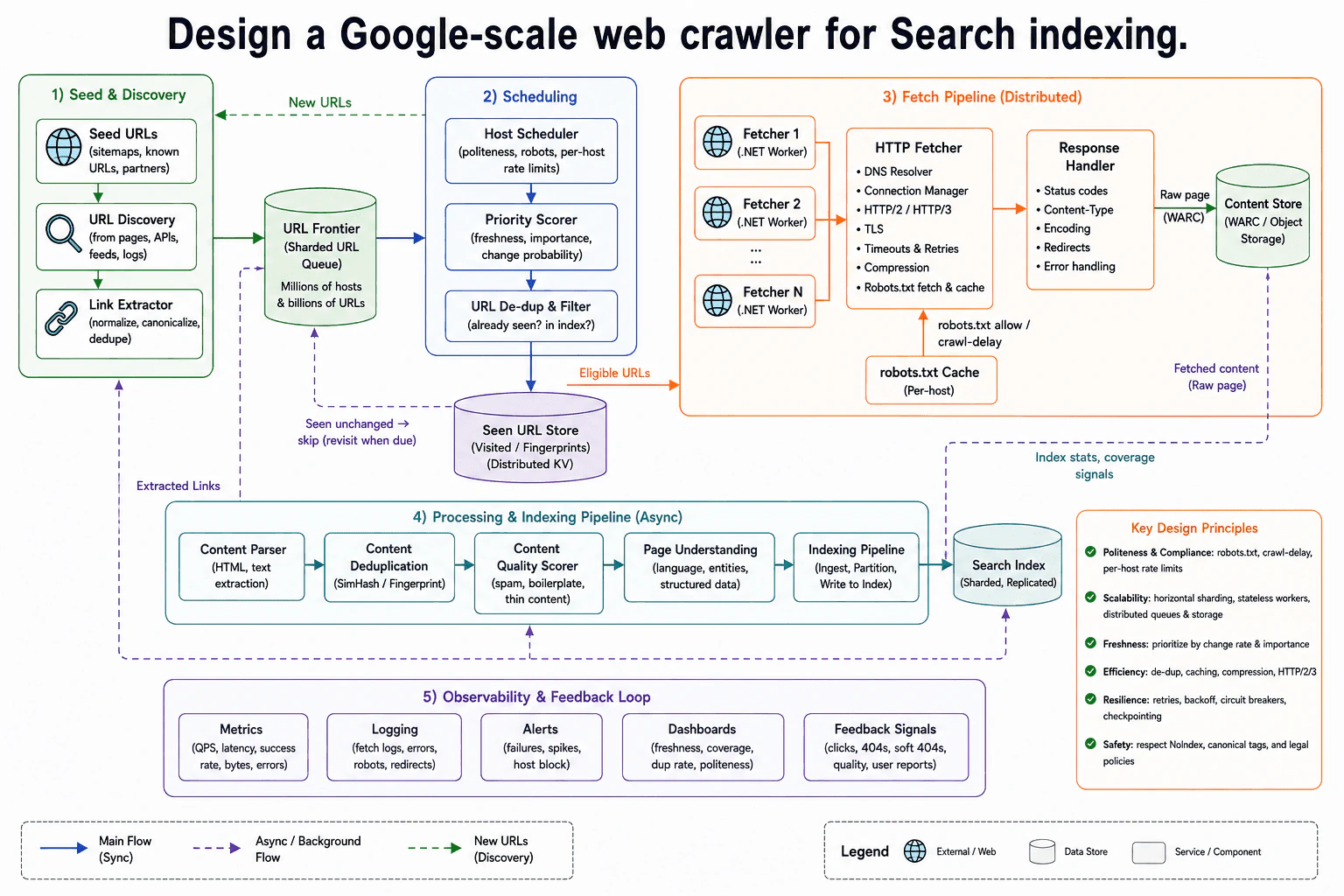

At a high level, this crawler keeps discovering web pages and decides which URLs should be fetched next. The main challenge is covering a huge web without wasting work or overloading individual sites. I would explain it in three flows: discovery and scheduling, distributed fetching, and background processing for Search indexing. The Seen URL Store helps skip unchanged pages, while freshness signals schedule useful revisits. The trade-off is extra scheduling and storage complexity for better efficiency and politeness.

The goal is to discover useful web pages, fetch them safely, and prepare their content for Search indexing. The web is extremely large and changes all the time. Crawling every known URL repeatedly would waste network and processing capacity. The crawler must also respect each website by following robots.txt rules and per-host limits. The diagram organizes the solution into discovery, scheduling, distributed fetching, background processing and indexing, then observability and feedback so the crawler can keep improving its decisions.

1. How fresh should important pages remain in the Search Index?
2. How strongly should importance and change probability affect revisit timing?
3. Should the crawler prioritize broad coverage or fresher copies of important pages?

I would start with how URLs enter the crawler. Seed URLs provide known starting points from sitemaps, known URLs, and partners. URL Discovery also receives addresses from pages, APIs, feeds, and logs. The Link Extractor normalizes and canonicalizes URLs, meaning it converts equivalent URL forms into a consistent form and removes obvious duplicates. New URLs then enter the URL Frontier, which is the shared URL queue waiting for scheduling.

Next, I would explain how the crawler chooses useful work. The Host Scheduler applies politeness rules, robots rules, and per-host rate limits. The Priority Scorer considers freshness, importance, and change probability. URL De-dup & Filter checks whether a URL was already seen or indexed. The Seen URL Store keeps visited URLs and fingerprints. If an already-seen page is still unchanged, the crawler skips an immediate repeat and waits until a later revisit is due. Eligible URLs move into the distributed Fetch Pipeline.

The Fetch Pipeline uses many .NET workers. They pass crawl work to the HTTP Fetcher. It handles DNS resolution, connection management, HTTP/2 or HTTP/3, TLS, timeouts, retries, and compression. Before fetching a page, it uses the per-host robots.txt Cache to check whether crawling is allowed and what crawl delay applies. The Response Handler processes status codes, content types, encoding, redirects, and errors. The raw page is then saved in the Content Store as WARC or object-storage data.

Fetched content moves into the Processing & Indexing Pipeline in the background. The Content Parser extracts HTML and text. Content Deduplication uses SimHash or fingerprints to detect repeated content. The Content Quality Scorer checks spam, boilerplate, and thin content. Page Understanding identifies language, entities, and structured data. The Indexing Pipeline ingests and partitions the result before writing it into the sharded, replicated Search Index. Extracted links feed back into discovery, so useful new URLs can enter the crawl cycle.

The Observability & Feedback Loop tracks metrics, logs, alerts, dashboards, and feedback signals. These show latency, success rate, failures, freshness, coverage, duplicate rate, politeness, and quality. The design scales through horizontal sharding, stateless workers, distributed queues, and distributed storage. Retries, backoff, circuit breakers, and checkpointing help the crawler recover from failures. The main trade-off is complexity. More scheduling, de-duplication, storage, and feedback logic reduces wasted crawling, but it makes the system harder to operate.

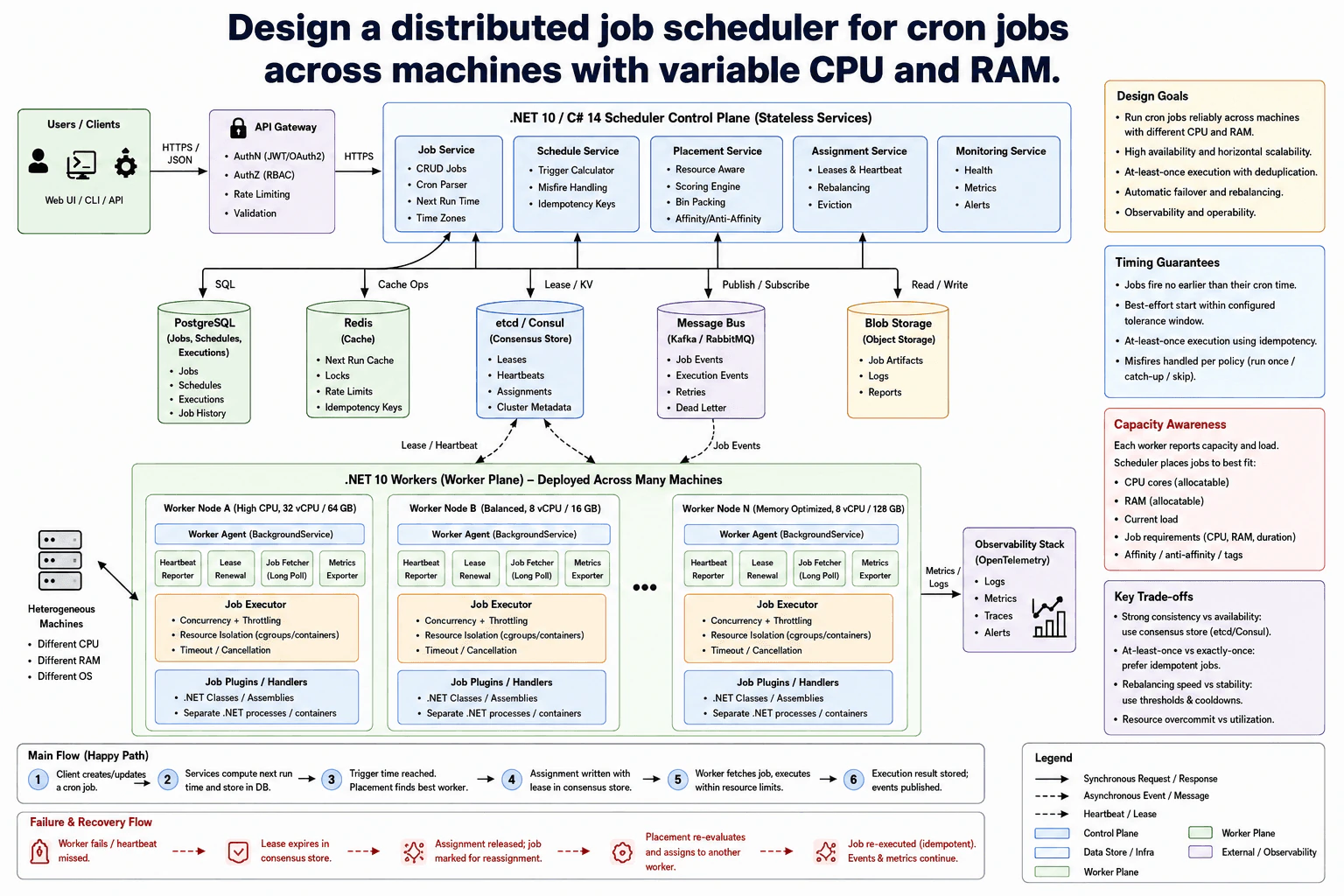

At a high level, this scheduler must run cron jobs reliably across machines with different CPU and RAM. The main challenge is starting jobs near their scheduled time while choosing workers that have enough free resources. I would explain three flows: creating schedules, placing and assigning work, and handling execution or failure. The stateless control plane manages timing and placement, while distributed workers run jobs under resource limits. The main trade-off is stronger coordination and better placement versus more system complexity.

The goal is to run scheduled jobs across many machines without overloading them. The machines are not equal. Some have more CPU, while others have more RAM. Jobs also need different amounts of these resources. The system must decide when each job is ready and which worker is the best fit. It must also handle missed schedules and failed workers. The diagram organizes the solution into a stateless scheduler control plane, shared storage and messaging, and a worker plane spread across heterogeneous machines.

1. How close to the cron time must a job start?
2. What should happen when no worker has enough CPU or RAM?
3. Can a job safely run again after a worker failure?
4. Should a missed schedule run once, catch up, or be skipped?

For the setup path, Users / Clients send HTTPS and JSON through the API Gateway. The gateway handles authentication, authorization, rate limiting, and validation.

The Job Service manages jobs and cron expressions. The Schedule Service calculates the next run time and handles misfires. PostgreSQL stores jobs, schedules, executions, and job history. Redis keeps faster supporting data such as the next-run cache, locks, rate limits, and idempotency keys.

When the trigger time arrives, the Placement Service chooses a worker. It compares the job requirements with reported worker capacity and load.

The diagram shows workers with different profiles, including high CPU, balanced capacity, and memory-optimized capacity. Placement can consider CPU, RAM, current load, tags, affinity, and anti-affinity. This prevents a memory-heavy job from being sent blindly to a small-memory worker. Bin packing and scoring help choose a good fit.

The Assignment Service writes the assignment with a lease in etcd / Consul. A lease is temporary ownership that must stay alive through heartbeats. The same consensus store also keeps assignments, cluster metadata, and worker heartbeats.

The Message Bus, shown as Kafka / RabbitMQ, carries job events, execution events, retries, and dead-letter work. Worker Agents run as BackgroundService instances. They report heartbeats, renew leases, fetch jobs using long polling, and export metrics.

The Job Executor limits concurrency and throttles work. It can use cgroups or containers for resource isolation. It also supports timeout and cancellation. Job handlers are .NET classes or assemblies. Stronger isolation can use separate .NET processes or containers.

After execution, the result is stored and events are published. PostgreSQL keeps execution state and history. Blob Storage keeps job artifacts, logs, and reports.

The Monitoring Service tracks health, metrics, and alerts. The Observability Stack uses OpenTelemetry for logs, metrics, traces, and alerts. This helps operators see delays, failures, and overloaded workers.

Jobs should not run before their cron time. Starting inside the configured tolerance window is best effort because capacity and queue delay can affect timing. Misfires follow policy, such as run once, catch up, or skip.

Execution is at least once. Deduplication and idempotency help make repeated work safe, but they do not create an exactly-once guarantee. If a worker misses heartbeats, its lease expires. The assignment is released and marked for reassignment. Placement then chooses another suitable worker. The trade-off is that stronger coordination improves assignment safety, but adds overhead and can reduce availability when the consensus store has problems.

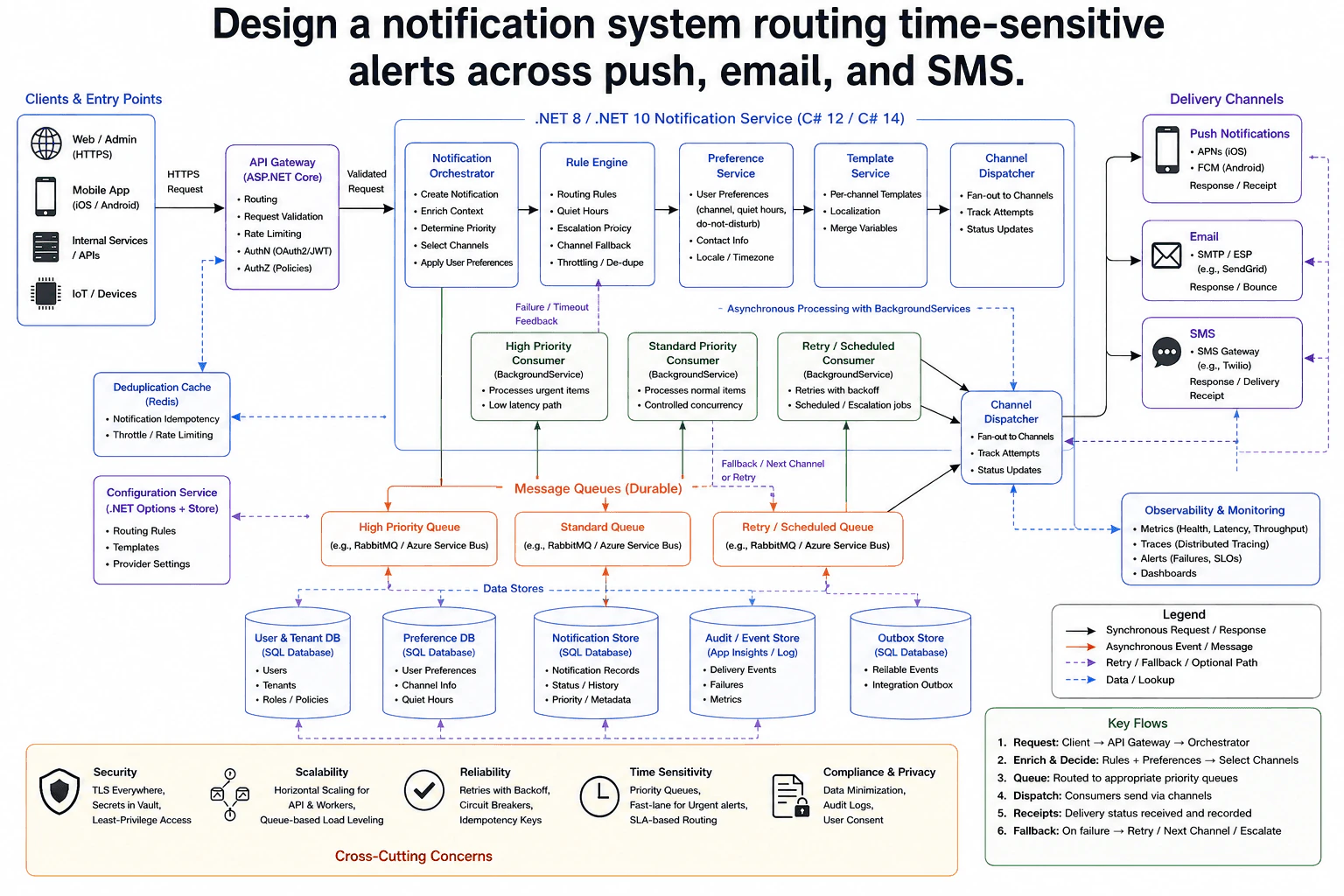

At a high level, I would separate accepting a notification from delivering it in the background. The main challenge is sending urgent alerts quickly while respecting user preferences and handling channel failures. I would explain three flows: request and routing, queued delivery, and retry or fallback. The service chooses priority and channels, durable queues hold the work, and BackgroundService consumers send through push, email, or SMS. The trade-off is better reliability and control, but more moving parts.

The goal is to send time-sensitive alerts through push, email, and SMS without letting a slow or failed channel stop the whole system. Urgent alerts should move before normal work. Users may also choose channels, quiet hours, language, and contact details. The diagram separates this into request and routing, durable background delivery, and retry or fallback. This keeps the first request quick while still giving delivery work a reliable place to wait.

1. How quickly must high-priority alerts be delivered?
2. Can one notification use more than one channel?
3. Should urgent alerts ever ignore quiet hours?
4. How many retries should happen before we stop?
5. Which delivery results must be kept for audit purposes?

For the request path, clients send an HTTPS request to the API Gateway. Clients can be web or admin apps, mobile apps, internal services, or devices. The gateway handles routing, validation, rate limiting, authentication, and authorization. The Deduplication Cache in Redis helps detect repeated notification requests and also supports throttling. A valid request then reaches the Notification Orchestrator.

The Notification Orchestrator creates the notification context, determines priority, selects channels, and applies user preferences. The Rule Engine handles routing rules, quiet hours, escalation policy, channel fallback, throttling, and duplicate control. The Preference Service supplies channel choices, quiet hours, contact information, locale, and time zone. The Template Service prepares channel-specific content and localization. The Configuration Service provides routing rules, templates, and provider settings.

After the routing decision, work is placed into a durable queue. Urgent work uses the High Priority Queue. Normal work uses the Standard Queue. Delayed retry or escalation work uses the Retry / Scheduled Queue. Durable means the work is kept outside application memory, so a process restart does not depend on an in-memory Task.

Each queue has a matching BackgroundService consumer. The High Priority Consumer handles urgent items. The Standard Priority Consumer handles normal items. The Retry / Scheduled Consumer handles retries and scheduled escalation jobs. These consumers send work to the Channel Dispatcher, which tracks attempts and sends through push, email, or SMS providers.

The SQL stores keep users, preferences, notification records, status, history, and priority metadata. The Audit / Event Store records delivery events, failures, and metrics. The Outbox Store keeps reliable integration events. Provider responses or delivery receipts feed status tracking and monitoring.

If a delivery fails or times out, failure feedback reaches the Rule Engine. Its fallback policy can choose the next allowed channel or send work to the Retry / Scheduled Queue. The retry consumer later sends that work through the Channel Dispatcher again.

The API and workers can scale horizontally by adding instances. Queue-based load leveling smooths traffic spikes. Retries use backoff, while circuit breakers reduce repeated calls to an unhealthy provider. Idempotency keys help prevent repeated processing from becoming repeated sends.

Observability & Monitoring tracks health, latency, traces, failures, alerts, and dashboards. Security uses TLS, protected secrets, and least-privilege access. The main trade-off is that queues, workers, fallback rules, and delivery tracking improve reliability, but add operational complexity.

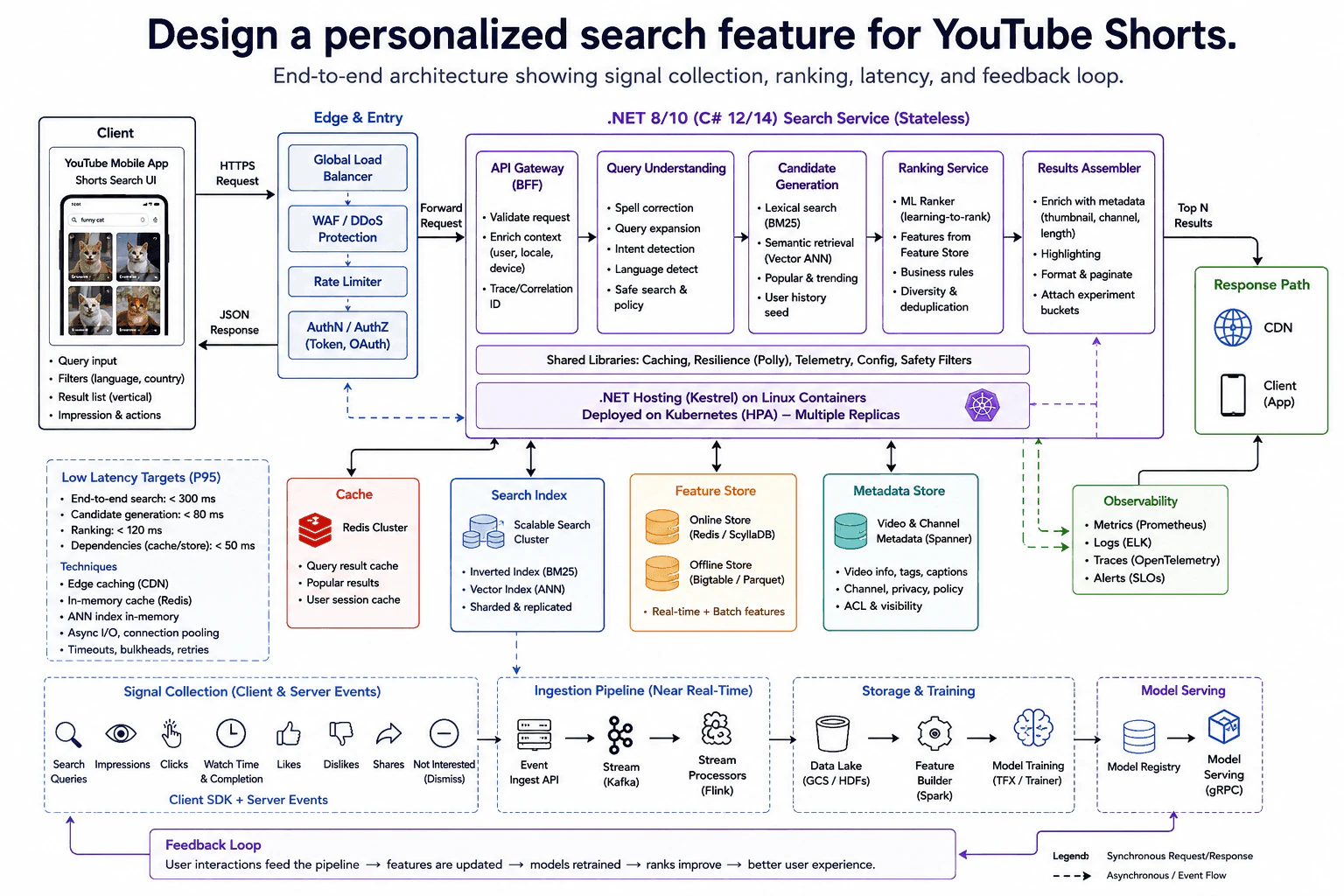

At a high level, the goal is to return Shorts that match both the search query and the user. The main challenge is keeping personalized ranking fast while user interests keep changing. I would explain three flows: the live search request, near-real-time signal processing, and offline training with model serving. The .NET search service combines lexical and semantic retrieval with user features and ML ranking. The trade-off is that richer personalization improves relevance, but adds latency and operational complexity.

The system must help a user search YouTube Shorts and quickly receive videos that fit both the words they typed and their interests. This is hard because the service must understand the query, find useful candidates, personalize their order, and stay within a small latency budget. At the same time, it must learn from new user actions. The diagram handles this with a live search path, a near-real-time event path, and a slower training path that produces models for online ranking.

1. How quickly should a new user action affect later searches?
2. Which user signals matter most for ranking quality?
3. Should the shown end-to-end target of under 300 ms be treated as strict?
4. How strongly should privacy, visibility, and safety rules filter results?

I would first explain how one search enters the system. The YouTube Mobile App sends an HTTPS request through the Global Load Balancer. WAF and DDoS Protection filter harmful traffic. The Rate Limiter controls excessive requests. AuthN and AuthZ check the caller before the request is forwarded.

The API Gateway inside the stateless .NET Search Service validates the request. It also adds user, locale, device, and trace context. The service uses Kestrel on Linux containers. Kubernetes runs multiple replicas and can scale them with HPA.

Query Understanding prepares the request for retrieval. It can do spelling correction, query expansion, intent detection, language detection, and safe-search checks.

Candidate Generation then builds a larger set of possible Shorts. It combines lexical search using BM25 with semantic retrieval using a Vector ANN index. It can also use popular or trending content and a user-history seed. The Search Index contains the inverted index and vector index used for this step.

The Ranking Service applies an ML ranker to the candidates. Its ranking inputs include features from the Feature Store, business rules, diversity, and deduplication. The Feature Store contains online features plus real-time and batch-derived information.

The Results Assembler enriches ranked videos with data from the Metadata Store. That store contains video and channel metadata, tags, captions, privacy rules, policies, ACLs, and visibility information. The assembler also handles highlighting, formatting, pagination, and experiment buckets. The Top N results then follow the response path through the CDN to the client.

The design shows an end-to-end search target below 300 ms. Candidate generation targets below 80 ms. Ranking targets below 120 ms. Cache or store dependencies target below 50 ms. Redis caches query results, popular results, and user sessions to reduce repeated work.

The personalization loop starts with user behavior. Signals include search queries, impressions, clicks, watch time, completion, likes, dislikes, shares, and Not Interested actions.

The Event Ingest API accepts those events. Kafka carries the stream, and Flink stream processors handle near-real-time processing. This background path keeps event work away from the synchronous search response while allowing features to become fresher.

Processed data also moves into the Data Lake. Spark builds training features. The training system creates updated models, which move into the Model Registry and then Model Serving over gRPC.

This creates the feedback loop shown in the diagram. User interactions feed the pipeline, features are updated, models are retrained, and future ranks can improve. Prometheus metrics, ELK logs, OpenTelemetry traces, and alerts help operators find latency or failure problems. The main trade-off is richer personalization versus more latency, infrastructure, and operational work.

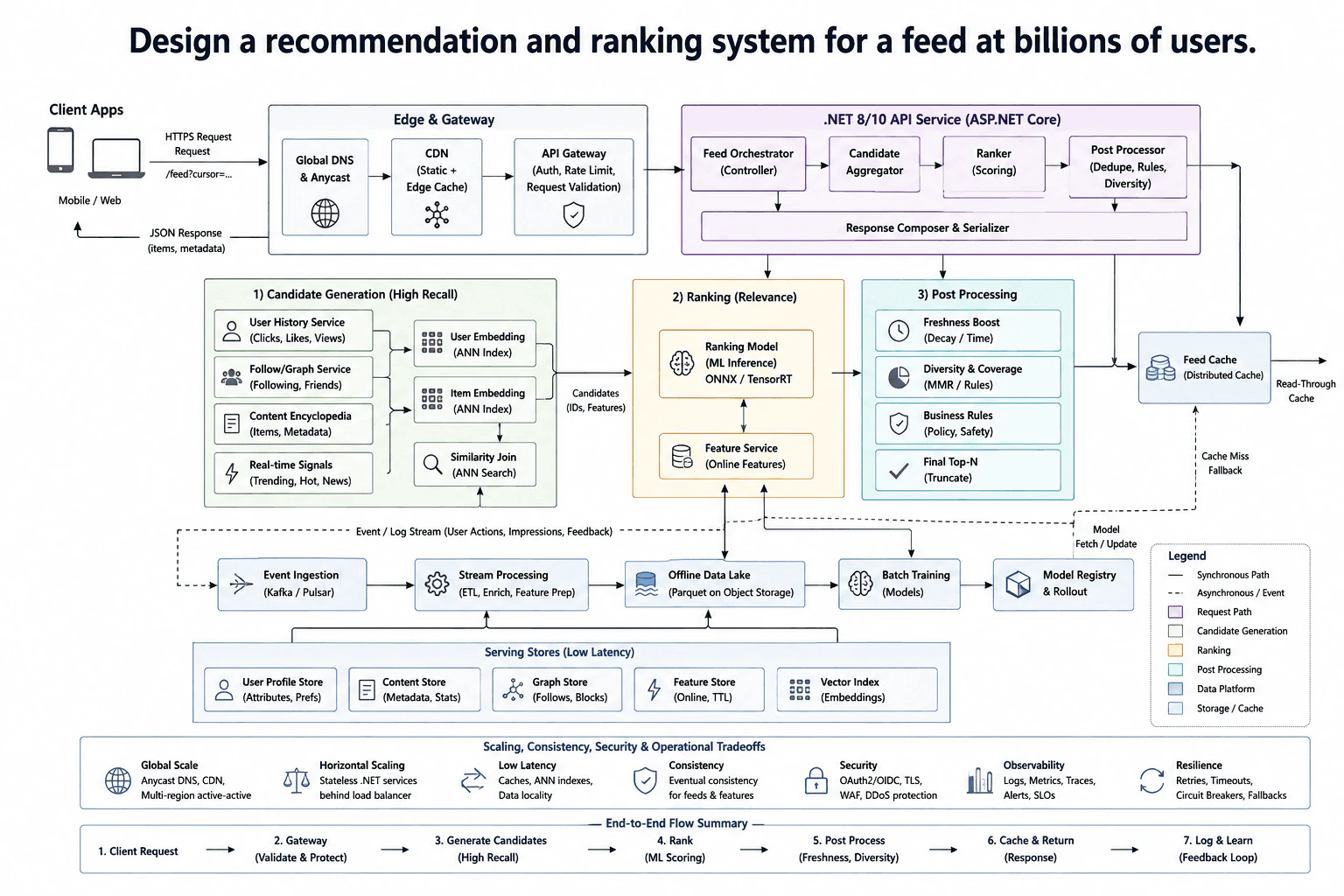

At a high level, the goal is to build a personalized feed for billions of users. The hard part is keeping recommendations relevant and fresh while serving each request quickly. I would explain the design in three flows: find many useful candidates, rank and post-process them, then learn from user feedback. Stateless .NET services, low-latency stores, caches, streaming updates, and offline model training support those flows. The main trade-off is balancing recall, relevance, freshness, diversity, cost, and latency.

The system must choose a small set of useful feed items from a huge amount of content. Each user should see items that fit their interests, relationships, and recent activity. The hard part is doing this quickly for billions of users while keeping results fresh. The diagram solves this in stages. It finds many possible items, scores them for relevance, applies freshness and diversity rules, returns the feed, and learns from later user actions.

1. How fresh should new content and user actions become in recommendations?
2. Which user signals matter most, such as clicks, likes, follows, or views?
3. What latency target should one feed request meet?
4. How much should diversity matter compared with pure relevance?
5. Should the same design serve users across multiple regions?

I would start with the request path. Mobile and web clients send an HTTPS feed request through Global DNS & Anycast. The CDN handles static content and edge caching. The API Gateway handles authentication, rate limits, and request validation.

The request enters the stateless .NET 8/10 API Service using ASP.NET Core. The Feed Orchestrator coordinates the work.

Next, I would find many reasonable items before trying to order them perfectly. User History Service provides clicks, likes, and views. Follow/Graph Service adds social relationships. Content Encyclopedia provides item metadata. Real-time Signals add trending, hot, and news signals.

User Embedding and Item Embedding use ANN indexes. ANN means approximate nearest-neighbor search, which quickly finds similar vectors. Similarity Join combines those embeddings. Candidate Aggregator collects the resulting candidate IDs and features.

The Ranker scores the candidates for relevance. Ranking Model performs ML inference with ONNX or TensorRT. Feature Service supplies online features needed during scoring.

Post Processor then improves the final list. Freshness Boost uses time and decay. Diversity & Coverage reduce repetitive results. Business Rules apply policy and safety checks. Final Top-N keeps the final number of items.

Response Composer & Serializer prepares the JSON response. Feed Cache is the distributed response cache. On a cache hit, a stored feed can be returned quickly. On a miss, the normal candidate, ranking, and post-processing path produces the result.

User actions, impressions, and feedback go to Event Ingestion using Kafka or Pulsar. Stream Processing performs ETL, enrichment, and feature preparation.

Serving Stores provide low-latency user profiles, content data, graph data, online features, and vector embeddings. Events also reach the Offline Data Lake in Parquet on object storage. Batch Training creates models. Model Registry & Rollout manages model versions used by serving.

Global scale uses Anycast DNS, CDN, multi-region active-active deployment, and data locality. Horizontal scaling uses stateless .NET services behind load balancers. Caches and ANN indexes keep lookups fast.

Feeds and features use eventual consistency, meaning some updates may appear a little later. Security uses OAuth2/OIDC, TLS, WAF, and DDoS protection. Observability uses logs, metrics, traces, alerts, and SLOs. Resilience uses retries, timeouts, circuit breakers, and fallbacks.

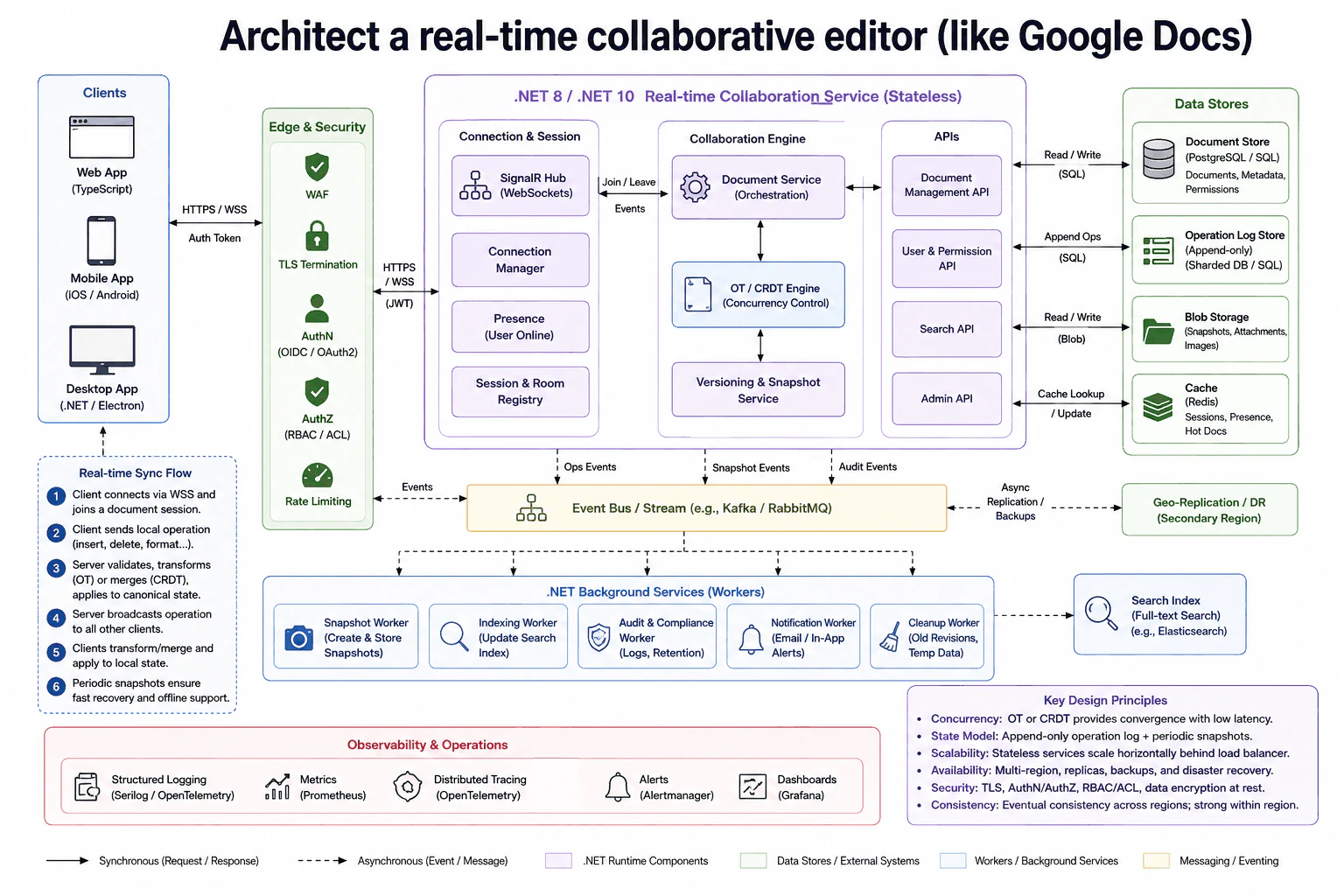

At a high level, the goal is to let several people edit one document and see each other's changes quickly. The hard part is handling edits that arrive at nearly the same time while keeping every client in sync. I would explain the live connection flow, the edit and synchronization flow, and the background processing flow. SignalR carries real-time operations, while an OT or CRDT engine handles concurrency. An operation log and snapshots protect document history. The trade-off is extra coordination complexity for low-latency collaboration.

The system lets several people work on the same document at the same time. Each editor should see other people's changes quickly without losing their own work. The difficult part is handling changes that arrive close together and may reach different clients in different orders. The design solves this with one real-time collaboration path, an OT or CRDT concurrency engine, an append-only operation history, and periodic snapshots. Slower jobs such as indexing, audit work, notifications, and cleanup run separately so they do not slow normal editing.

1. Do users need to keep editing while temporarily offline?
2. How quickly should another editor see a change?
3. How much document version history should we keep?
4. What recovery expectations do we have across regions?

I would start with how an editor joins a document. Web, mobile, and desktop clients use HTTPS or WebSockets. The Edge & Security layer handles the WAF, TLS termination, authentication, authorization, and rate limiting. Authentication uses OIDC or OAuth2. Authorization uses RBAC or ACL rules to decide whether that user may open or edit the document.

Inside the .NET real-time collaboration service, the SignalR Hub maintains WebSocket connections. The Connection Manager, Presence component, and Session & Room Registry track connections, online users, and document rooms.

When a user types, the client sends a small operation such as an insert, delete, or formatting change. The Document Service coordinates that work. The OT / CRDT Engine then handles concurrency.

OT means Operational Transformation. CRDT means Conflict-free Replicated Data Type. The design may use either approach to make concurrent edits converge. The server validates, transforms or merges the operation, and applies it to the canonical document state. The accepted operation is broadcast through the SignalR path to the other clients. They transform or merge it when needed and update their local state.

The Document Management API reads and writes the Document Store. That store keeps documents, metadata, and permissions. The User & Permission API works with permission data. The Operation Log Store keeps editing operations as an append-only history.

The Versioning & Snapshot Service creates periodic snapshots. This makes recovery faster because the system does not need to replay every old operation. Blob Storage keeps snapshots, attachments, and images. Redis caches sessions, presence data, and hot documents. The Search API works with the Search Index for full-text search, while the Admin API supports administrative operations.

Operation, snapshot, and audit events flow to the Event Bus / Stream. .NET Background Services consume this work outside the live editing path.

The Snapshot Worker creates and stores snapshots. The Indexing Worker updates the Search Index. Audit & Compliance Worker handles logs and retention. Notification Worker handles email or in-app alerts. Cleanup Worker removes old revisions or temporary data. This keeps slower work from delaying editor updates.

The real-time collaboration service is stateless where possible, so replicas can scale horizontally. Redis holds shared session, presence, and hot-document data instead of relying on one process. The design uses asynchronous replication and backups for geo-replication and disaster recovery.

Structured logging, metrics, distributed tracing, alerts, and dashboards provide observability. The main trade-off is complexity. OT or CRDT improves convergence and low-latency collaboration, but ordering, versioning, snapshots, background events, and regional recovery all require careful coordination.
