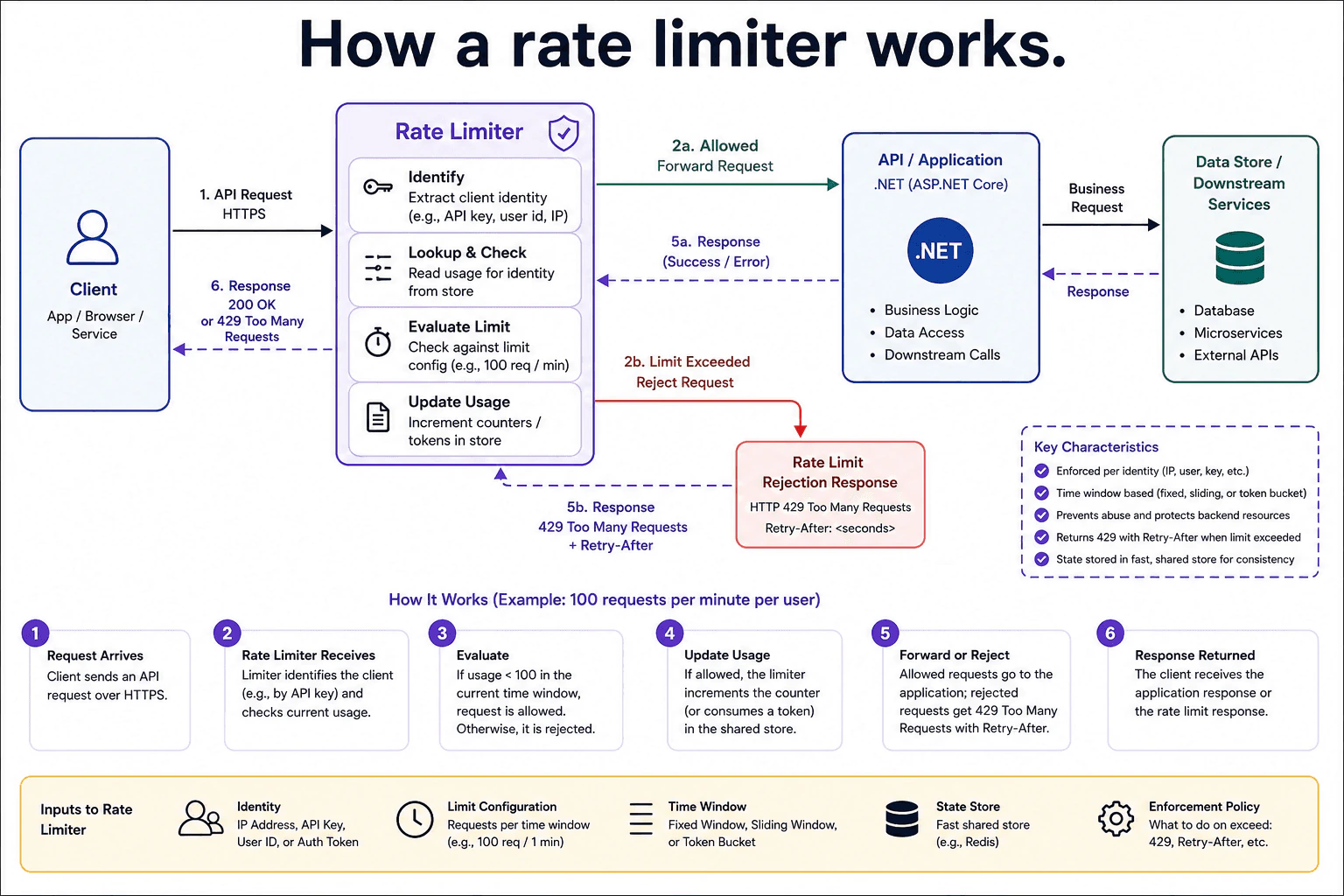

At a high level, my goal is to stop one client from overwhelming the API with too many requests. The client sends an HTTPS request to the Rate Limiter. It identifies the caller, checks current usage against the configured limit, and updates usage state. If the request is allowed, it goes to the API / Application and the normal response returns. If the limit is exceeded, the limiter returns HTTP 429 Too Many Requests with Retry-After. A shared state store improves consistency across instances, but adds coordination cost.

This question asks how a system can stop one client from sending too many requests in a short time. The goal is to protect the application and its backend resources from overload or abuse. We need to know who is making the request, how much that caller has already used, and what limit applies. The diagram shows one simple path. A rate limiter checks the request before the application does business work. It either allows the request to continue or sends back a limit response.

• What should identify a caller: IP address, API key, user ID, or auth token?
• What request limit and time window should we enforce?
• Should rate-limit state be shared across all instances?
• Which time model should we use: fixed window, sliding window, or token bucket?

The client sends an API request over HTTPS. The Rate Limiter receives it before the API / Application. Its first job is to identify the caller. The diagram shows identity values such as IP address, API key, user ID, or auth token. That identity becomes the key used to find the caller's usage.

The limiter reads usage for that identity from the state store. The diagram uses a fast shared store, such as Redis, for consistency. The limiter then checks the configured limit. The example is 100 requests per minute per user. The time model may be a fixed window, sliding window, or token bucket.

If the request is within the limit, the limiter updates usage. A counter-based design increments a counter. A token-based design consumes a token. If the limit is exceeded, the limiter rejects the request instead of forwarding it. This keeps excess traffic away from the application.

An allowed request is forwarded to the API / Application, shown as .NET with ASP.NET Core. The application runs business logic, performs data access, and can make downstream calls. The Data Store / Downstream Services box represents databases, microservices, and external APIs. Their response returns to the application, and the application response returns through the limiter toward the client.

For an allowed request, the client can receive a normal response such as 200 OK. When the limit is exceeded, the Rate Limit Rejection Response is HTTP 429 Too Many Requests. The diagram also shows Retry-After, which tells the client when it may try again. The limiter therefore owns the allow-or-reject enforcement decision.

Shared rate-limit state keeps different instances consistent, which is important when traffic is distributed. The downside is extra state-store work on the request path. The limiter must read and update usage quickly. We accept that cost because consistent enforcement protects backend resources and prevents one caller from bypassing the limit by reaching different instances.

The benefit of this design is that expensive application work starts only after the rate check passes. Limits can be applied per IP address, API key, user ID, or auth token. The diagram also supports several time models: fixed window, sliding window, or token bucket. A shared state store, such as Redis, helps different instances see the same usage. The downside is extra state-store work on each decision, which can add latency. Fixed windows are simple, while sliding windows give smoother counting. Token buckets can allow controlled bursts. Returning HTTP 429 clearly tells the client that the limit was exceeded. Retry-After gives retry guidance. We accept the extra coordination because it protects backend resources and keeps enforcement consistent.

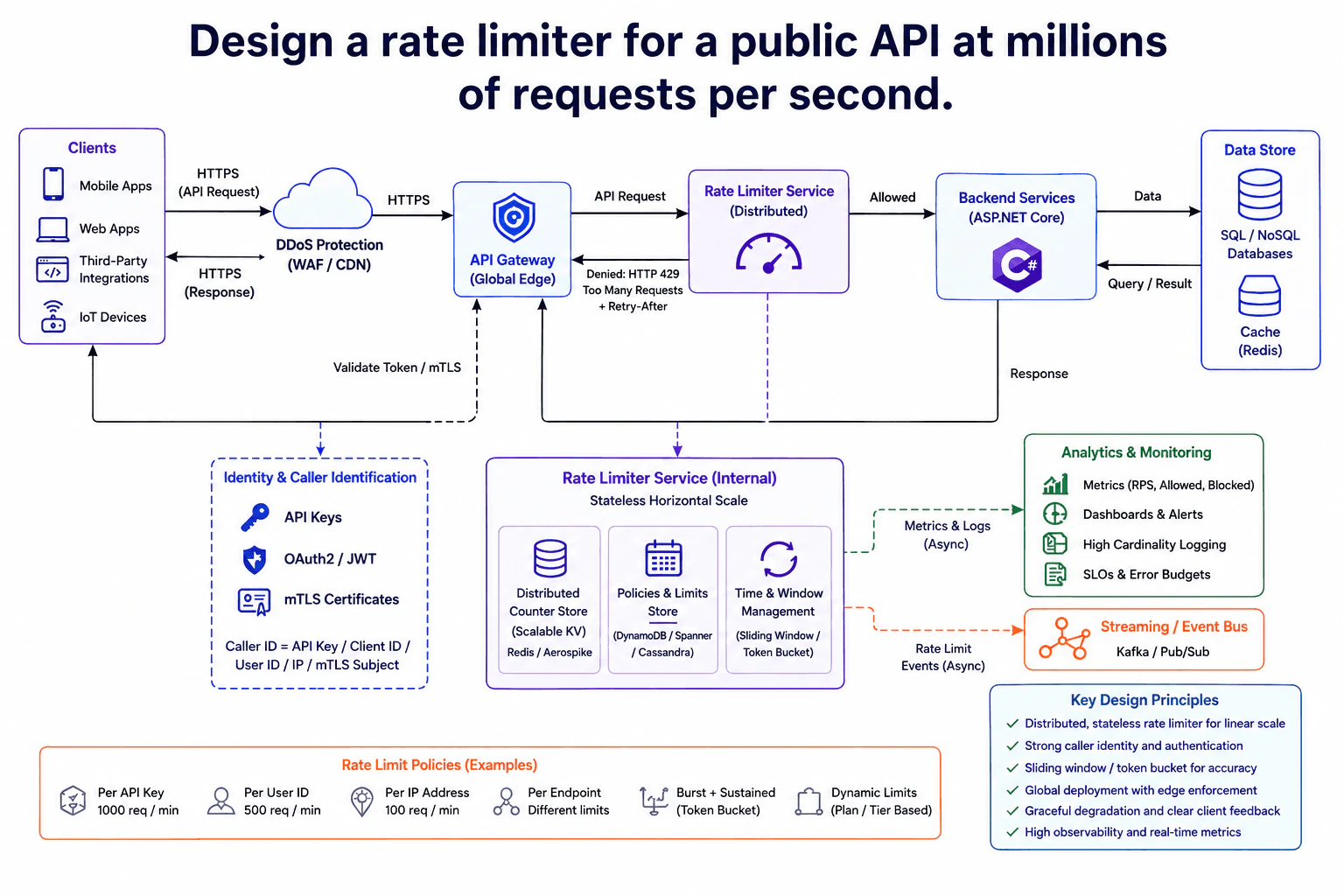

At a high level, I would protect the public API by limiting each caller before traffic reaches the backend. Requests pass through DDoS Protection and the global API Gateway, then reach a distributed Rate Limiter Service. Caller identity can come from an API key, OAuth2/JWT, IP address, client ID, user ID, or mTLS subject. The limiter checks shared counters and policies. It forwards allowed requests to ASP.NET Core services and returns HTTP 429 with Retry-After when a limit is exceeded. The main trade-off is accurate distributed counting versus latency and coordination cost.

The goal is to keep a very busy public API available when millions of requests arrive each second. We need to know who is sending each request, count how much traffic that caller sends, and stop traffic above the allowed limit. Good requests should continue quickly to the application. Extra requests should be rejected before they waste backend capacity. The diagram solves this with edge protection, a global gateway, a distributed rate limiter, shared counter and policy data, and monitoring for very large traffic volumes.

• Should limits differ by API key, user, IP address, endpoint, or customer plan?
• Do we need both short burst limits and sustained limits?
• How strict should counting be when traffic is distributed globally?

The request first comes from mobile apps, web apps, third-party integrations, or IoT devices. It uses HTTPS and passes through DDoS Protection using a WAF or CDN. This layer helps absorb abusive traffic before it reaches the API system. The request then goes over HTTPS to the API Gateway at the global edge. The gateway is the public entry point and sends the API request to the distributed Rate Limiter Service.

Before a rate-limit rule can be applied, the system needs a caller identity. The diagram shows API Keys, OAuth2/JWT, and mTLS Certificates as supported identity inputs. It also shows the caller key as an API Key, Client ID, User ID, IP address, or mTLS subject. The API Gateway performs the shown token or mTLS validation with the Identity and Caller Identification capability. This gives the rate limiter a trusted caller key for selecting the correct limit.

The API Gateway sends the API request to the Distributed Rate Limiter Service. The service is designed for stateless horizontal scale. This means many rate-limiter instances can process requests, while shared state remains in internal stores. The Distributed Counter Store is a scalable key-value store, with Redis or Aerospike shown as examples. The Policies and Limits Store contains configured rules, with DynamoDB, Spanner, or Cassandra shown as examples. Time and Window Management uses Sliding Window or Token Bucket logic to decide whether the caller still has capacity.

The limiter selects the rule for the caller and request. The diagram shows example limits of 1000 requests per minute per API key, 500 per minute per user, and 100 per minute per IP address. It also supports different per-endpoint limits. Burst and sustained traffic can use a Token Bucket. Dynamic limits can vary by plan or tier. These are policy examples inside the rate-limiting design. They are not separate API endpoints.

If the request is within its limit, the Rate Limiter Service sends the allowed request to Backend Services running ASP.NET Core. The backend performs the business work. It reads or writes data in the Data Store. The diagram shows SQL or NoSQL databases and a Redis cache. After processing, the backend response returns to the API Gateway. The gateway then returns the HTTPS response to the client.

If the caller has exceeded the selected rule, the Rate Limiter Service does not forward that request to the backend. It sends a denial to the API Gateway as HTTP 429 Too Many Requests with Retry-After. The gateway then returns that response to the caller. Rejecting traffic at this point protects backend capacity. Retry-After also gives the client useful feedback about when it should try again.

The internal Rate Limiter Service sends metrics and logs asynchronously to Analytics and Monitoring. The diagram shows request rate, allowed and blocked counts, dashboards, alerts, high-cardinality logging, SLOs, and error budgets. It also sends rate-limit events asynchronously to a Streaming or Event Bus such as Kafka or Pub/Sub. These paths do not control the synchronous client response. The key design choice is a stateless distributed limiter backed by shared counters and policies. This scales horizontally, but distributed state adds latency, coordination work, and operational complexity.

The benefit of this design is that excessive traffic is stopped before it consumes ASP.NET Core backend capacity. The Rate Limiter Service can scale horizontally because its important state is kept in shared counter and policy stores. Token Bucket is useful when callers may send short bursts while still following a longer-term limit. Sliding Window gives another way to measure traffic over time. The downside is that distributed counters require extra network calls and coordination. Strict global counting can cost more latency than looser local decisions. The caller key also matters because limits may use an API key, user, IP address, endpoint, mTLS subject, or customer tier. We accept this complexity because the API must remain responsive while handling millions of requests per second.

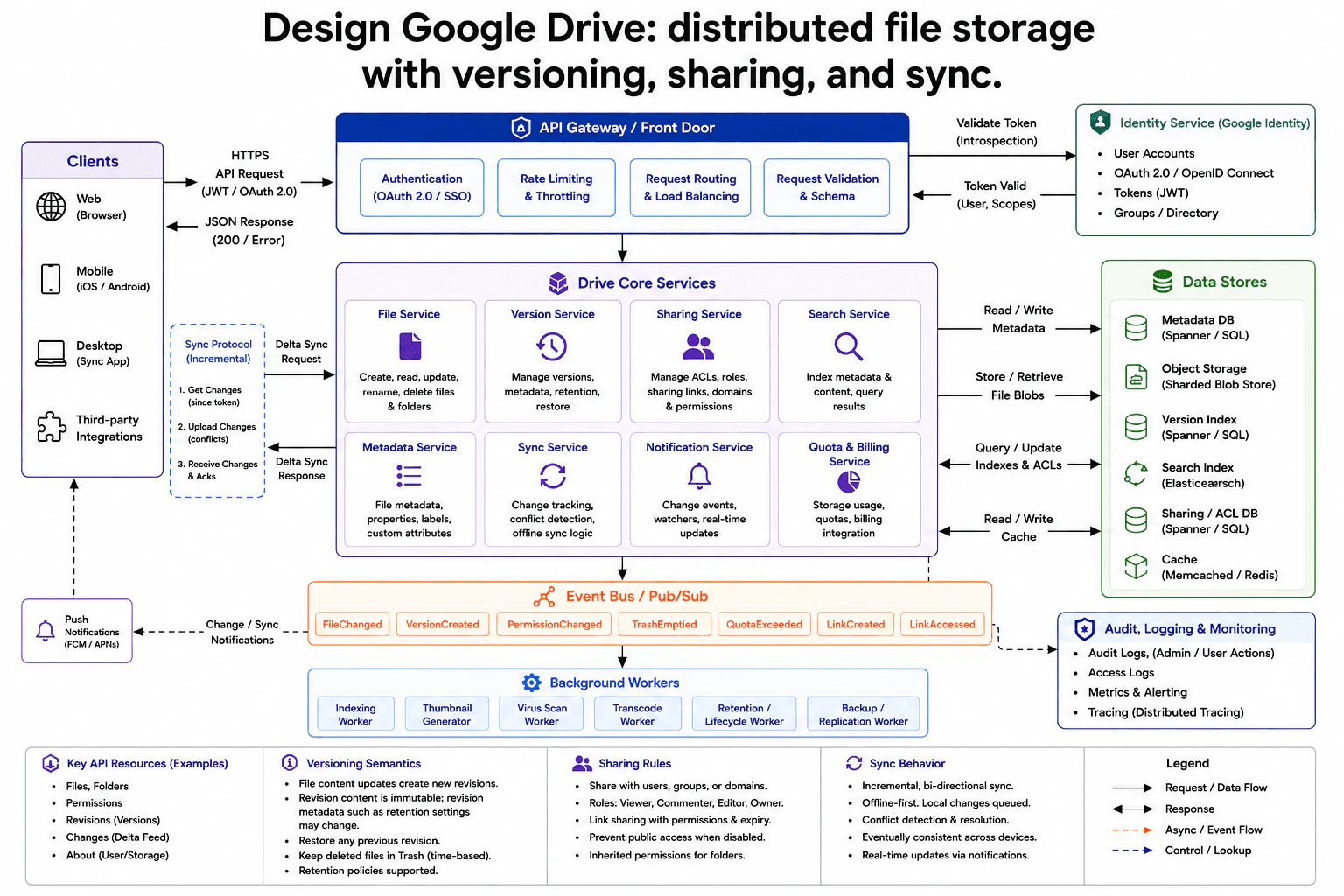

At a high level, I would design Drive around files, folders, permissions, revisions, and an incremental changes feed. Clients send HTTPS requests with OAuth 2.0 or JWT identity through the API Gateway. The gateway authenticates the caller, applies rate limits and request validation, checks the token with the Identity Service, and routes valid work to Drive Core Services. Metadata and permissions use structured stores, while file bytes use object storage. Events handle background work and notifications. The trade-off is more operational complexity, but storage, sharing, versioning, and sync can scale independently.

The goal is to let people store files, change them, share them, and keep different devices in sync. A user should see the same files, history, and sharing rules from the web, phone, desktop, or a connected application. The difficult part is coordinating file content, file details, revisions, permissions, and device changes while many users work at once. I would explain the design by following the diagram from the client request, through identity checks and Drive services, into storage, and then through background events and synchronization.

• Do we need web, mobile, desktop sync, and third-party clients?
• Should users be able to restore any retained file revision?
• Do shared links need permissions and expiration?
• Is incremental synchronization required for offline clients?

I would begin with the main resources shown in the design: Files, Folders, Permissions, Revisions, Changes, and About. Web, mobile, desktop, and third-party clients enter through the API Gateway / Front Door. A normal request travels over HTTPS and carries JWT or OAuth 2.0 identity information. The gateway handles authentication, rate limiting and throttling, routing and load balancing, and request validation. This keeps common API checks outside the individual Drive services.

The gateway asks the Identity Service to validate the token. The validation request moves from the gateway to the Identity Service. The Token Valid response returns to the gateway with the user and scopes. The Identity Service represents Google Identity and covers user accounts, OAuth 2.0 or OpenID Connect, JWT tokens, and groups or directory information. Only a request that passes these checks should continue into Drive Core Services. The normal response then returns through the gateway to the client as JSON, with either a success or error result.

Drive Core Services separate responsibilities. The File Service creates, reads, updates, renames, and deletes files and folders. The Metadata Service manages properties, labels, and custom attributes. The Version Service manages revisions, retention information, and restore behavior. The Sharing Service manages ACLs, roles, sharing links, domains, and permissions. The Search Service indexes metadata and content. The Sync Service tracks changes, detects conflicts, and supports offline synchronization. The Notification Service handles change events, watchers, and real-time updates. Quota & Billing tracks storage usage and quotas.

The services use separate stores because their data has different needs. Metadata uses the Metadata DB. File blobs use Object Storage. Revision information uses the Version Index. Search uses the Search Index. Sharing permissions use the Sharing / ACL DB. Frequently used information can use the Cache. This separation allows file content, metadata, indexes, permissions, and cached values to scale according to their own access patterns.

File content updates create new revisions. Revision content is immutable, while revision metadata such as retention settings may change. Users can restore an earlier retained revision. Deleted files remain in Trash for a limited time, and retention policies are supported. Sharing can target users, groups, or domains. Roles include Viewer, Commenter, Editor, and Owner. Shared links can have permissions and expiry. Public access can be disabled, and folder permissions may be inherited.

The desktop client uses the incremental Sync Protocol. It gets changes since a saved token, uploads local changes, and receives changes plus acknowledgements. The Sync Service owns change tracking, conflict detection and resolution, and offline sync logic. The design accepts eventual consistency across devices instead of requiring every device to update instantly. Real-time notifications help clients discover that new changes are available, while the changes feed lets them catch up reliably.

Drive Core Services publish events through Event Bus / Pub/Sub. Events shown include FileChanged, VersionCreated, PermissionChanged, TrashEmptied, QuotaExceeded, LinkCreated, and LinkAccessed. Background workers handle indexing, thumbnails, virus scanning, transcoding, retention or lifecycle work, and backup or replication. Push Notifications deliver change or sync notifications to clients. Audit, Logging & Monitoring separately receives audit logs, access logs, metrics, alerts, and distributed tracing. These asynchronous paths support the system without becoming part of the main synchronous response path.

The benefit is that each part has a clear job. The gateway handles authentication, rate limits, routing, and request checks once. Drive services then focus on files, metadata, revisions, sharing, search, sync, notifications, and quotas. File bytes use object storage, while metadata and permissions use structured stores. This matches their different access patterns. The downside is that several services and stores must stay coordinated. Event-driven work also means indexes or notifications may appear later. Incremental sync saves bandwidth, but conflict handling becomes harder. Caching improves speed, but cached values may become stale. We accept this complexity because large file storage needs independent scaling, durable history, flexible sharing, and efficient synchronization.

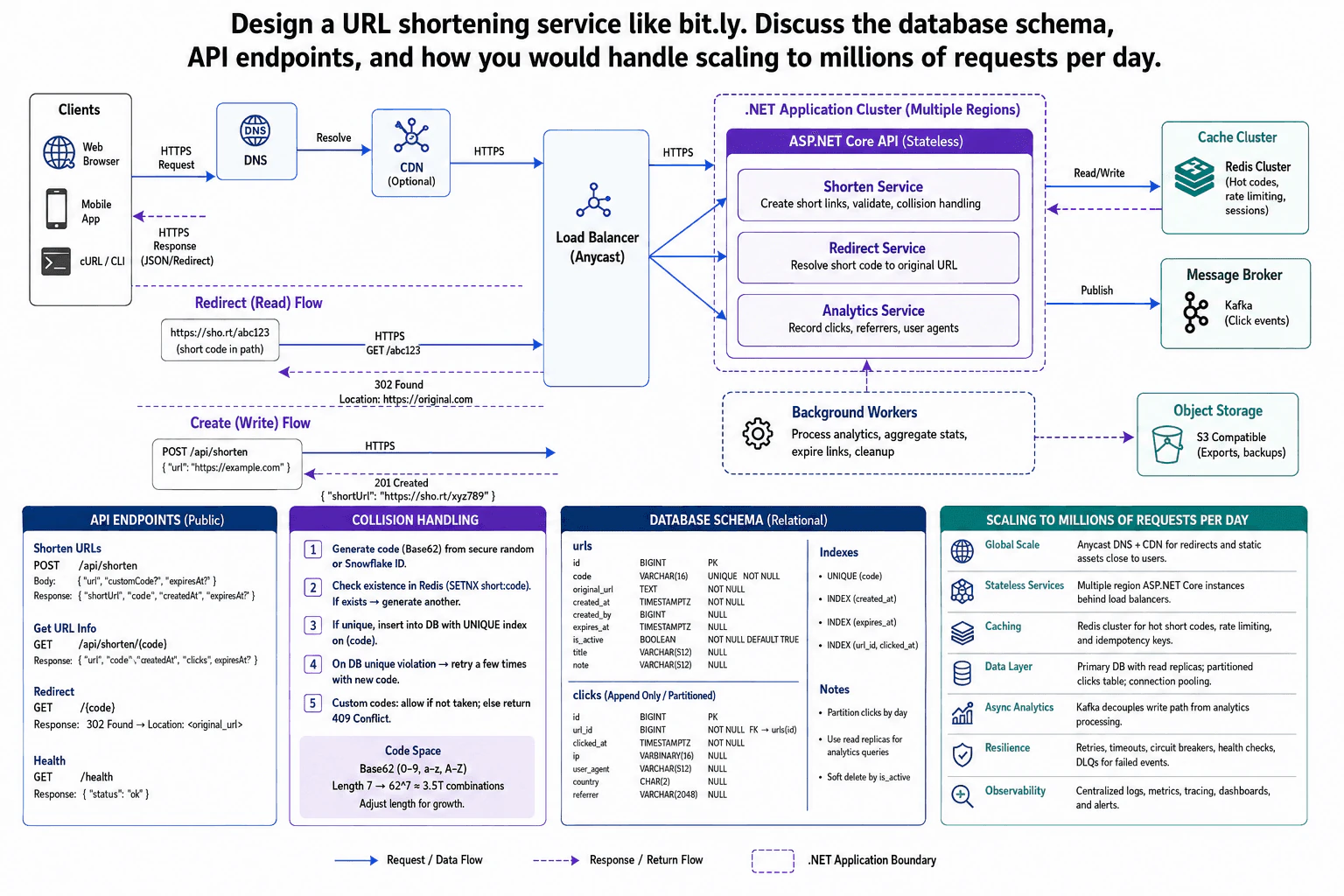

At a high level, I would build a read-heavy URL shortening service with a simple create API and a very fast redirect path. Clients reach the system through DNS, an optional CDN, and an Anycast load balancer. Stateless ASP.NET Core services create codes, resolve redirects, and record analytics. Redis keeps hot code mappings close to the application, while durable data stays in the relational store. I would use HTTPS, rate limiting, and unique code checks. The main trade-off is extra cache and queue complexity for lower latency and easier scaling.

The goal is to turn a long web address into a short one that is easy to share. When someone opens the short address, the system must quickly send them to the original page. We also need to remember each link, avoid giving two links the same short code, and count visits. The system should keep working when traffic becomes very large. I would explain the design by following the picture from the user request, through link creation or redirect, into storage, caching, and background work.

• Should users be allowed to choose a custom short code?
• Should short links be allowed to expire?
• What read traffic and write traffic should we expect?

I would first define the small public surface shown in the diagram. POST /api/shorten creates a short link. Its body contains url, optional customCode, and optional expiresAt. It returns 201 Created with shortUrl, code, createdAt, and optional expiresAt. GET /api/shorten/{code} returns the original url, code, createdAt, clicks, and optional expiresAt. The public redirect endpoint is GET /{code}. A successful lookup returns 302 Found with Location set to the original URL. GET /health returns {"status":"ok"}.

The client sends an HTTPS request. DNS resolves the service name. The optional CDN can help serve redirect traffic close to users. The request then reaches the Anycast load balancer. It sends traffic to a stateless ASP.NET Core API instance in the multi-region application cluster. The response travels back from the API through the load balancer toward the client. Stateless services let us add more instances as traffic grows.

The Shorten Service validates the request and generates a candidate code. The diagram allows either a secure random Base62 value or a Snowflake-style identifier encoded as Base62. A seven-character Base62 code gives about 62^7, or roughly 3.5 trillion combinations. The service checks Redis with a SETNX style uniqueness step. If the candidate exists, it generates another. If it looks unique, the service inserts it into the database. A UNIQUE constraint on code is the final correctness check. A rare uniqueness failure causes another retry. If a requested custom code is already used, the service returns 409 Conflict.

For GET /{code}, the Redirect Service resolves the short code to the original URL. Redis keeps hot code-to-URL mappings, so popular redirects avoid repeated database reads. On a successful lookup, the service returns 302 Found with the original URL in the Location header. The design is read optimized because redirect traffic is the dominant path.

The relational model has a urls table and an append-only, partitioned clicks table. The urls table keeps the short code, original URL, creation time, optional expiry, and is_active state. The unique index on code protects correctness, while is_active supports soft delete. The clicks table stores redirect events such as timestamp, IP, user agent, country, and referrer. Partitioning click data by day keeps large analytics data manageable. Read replicas support heavy read and analytics workloads.

The application publishes click events to the Kafka message broker instead of doing heavy analytics on the redirect path. Background workers process analytics, aggregate statistics, expire links, and perform cleanup. Object storage holds exports and backups. For larger traffic, I would add stateless ASP.NET Core instances, keep hot mappings, rate-limit state, and idempotency keys in Redis, use database read replicas, partition click data, and use connection pooling. The diagram also shows retries, timeouts, circuit breakers, health checks, dead-letter queues, centralized logs, metrics, tracing, dashboards, and alerts. The trade-off is more moving parts, but each layer can scale independently.

The benefit of this design is that the common redirect path stays very fast. Redis can answer many hot lookups without touching the database. Stateless ASP.NET Core services are also easy to add behind the load balancer. The downside is that Redis, Kafka, read replicas, workers, and multiple regions make operations harder. The database UNIQUE constraint is still important because the cache check alone cannot guarantee that two requests never choose the same code. Async analytics also means click counts may not update immediately. We accept that small delay because it keeps analytics work away from the redirect path. HTTPS protects traffic in transit, while rate limiting helps reduce abuse and protect shared capacity.

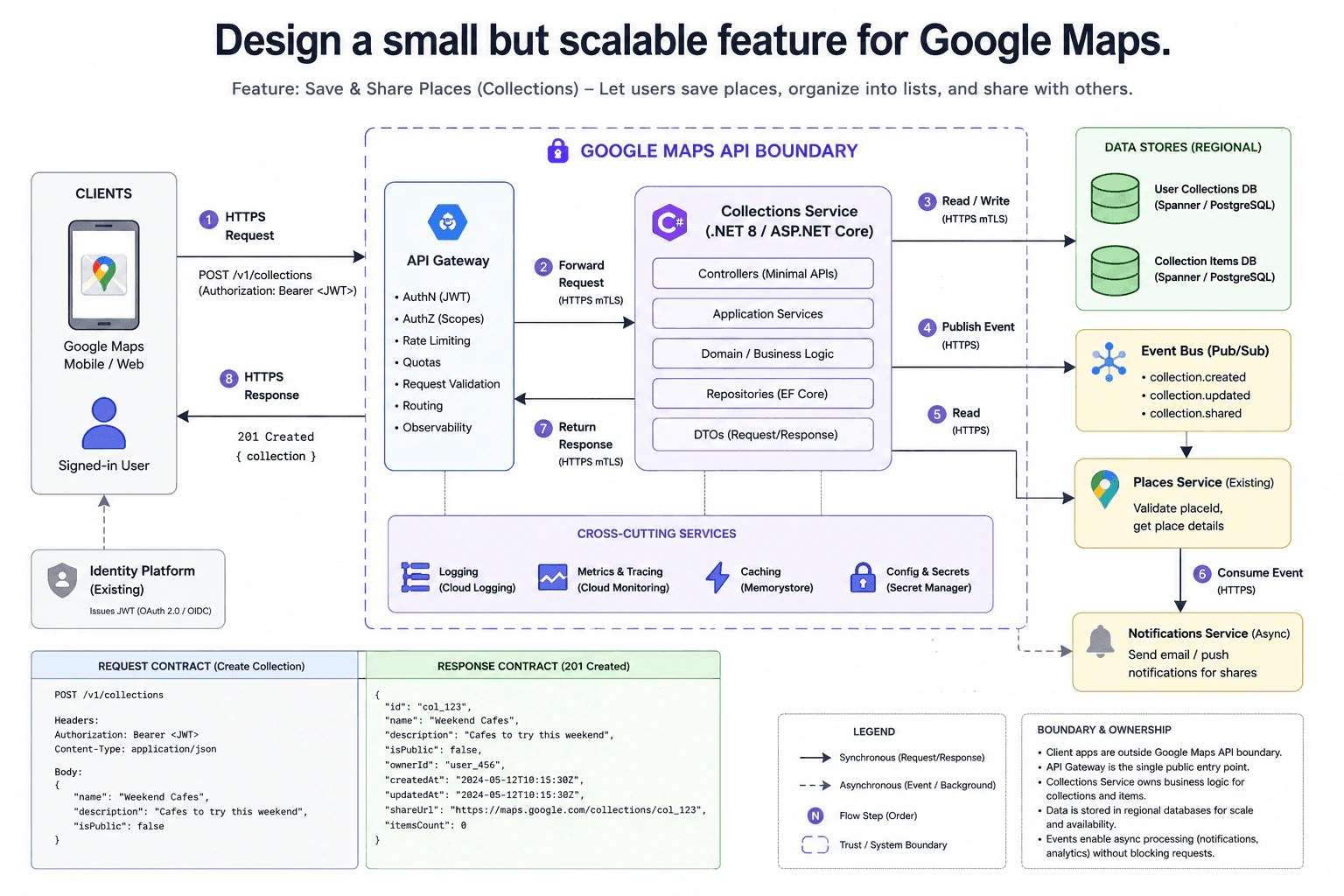

At a high level, I would keep this feature focused on saving and sharing places through collections. A signed-in Google Maps client sends POST /v1/collections with a bearer JWT. The API Gateway authenticates and authorizes the caller, applies limits and validation, then forwards the request to the .NET 8 Collections Service over HTTPS with mTLS. The service stores collection data in regional databases and returns 201 Created through the gateway. Pub/Sub supports asynchronous work such as notifications. The trade-off is more infrastructure, but the public interface stays small while the backend can scale.

This question asks us to add one useful Google Maps feature without building a large new platform. Users should be able to save places, organize them into collections, and share those collections. The main challenge is keeping the public interface small while supporting many users later. The diagram uses one API Gateway and one Collections Service for this feature. Regional databases hold collection data. Existing Google services still handle identity and place information. Pub/Sub handles background work. I would explain the design by following the create-collection request from the client to storage and back.

• Should collections be private by default, or may users make them public?
• Is delayed notification delivery acceptable when a collection is shared?
• Is the first version only for signed-in Google Maps users?

I would keep the new feature focused on collections. Google Maps mobile and web clients remain outside the Google Maps API boundary. The API Gateway is the single public entry point. The Collections Service owns business logic for collections and their items. Existing Identity Platform and Places Service components stay separate. This keeps the new feature small because it reuses services that already solve identity and place-data problems.

The public operation shown in the diagram is POST /v1/collections. The client sends it over HTTPS with Authorization: Bearer <JWT> and Content-Type: application/json. The example body contains name, description, and isPublic. It creates a collection named "Weekend Cafes", with description "Cafes to try this weekend", and isPublic set to false. I would avoid adding more public endpoints until the feature actually needs them. That keeps the initial contract easy to understand and evolve.

The Identity Platform issues the JWT through OAuth 2.0 or OIDC. The API Gateway handles JWT authentication, authorization scopes, rate limiting, quotas, request validation, routing, and observability. Authentication checks who the caller is. Authorization checks whether that caller has permission. If one of these gateway checks fails, the request does not continue to the Collections Service. The diagram does not define specific failure status codes, so I would not invent them.

After the gateway accepts the request, it forwards the request over HTTPS with mTLS to the Collections Service. mTLS encrypts the connection and lets both sides verify each other. The service uses .NET 8 and ASP.NET Core. Its internal structure shows Minimal API controllers, application services, domain or business logic, EF Core repositories, and request or response DTOs. This separates HTTP handling, business rules, storage access, and data contracts.

The Collections Service reads and writes the regional User Collections DB and Collection Items DB using the protected connection shown in the diagram. The stores are labeled Spanner or PostgreSQL. The service can also read from the existing Places Service over HTTPS to validate a placeId and get place details. This avoids making the Collections Service the owner of Google Maps place data. Memorystore provides caching, while Secret Manager provides configuration and secrets. Cloud Logging plus Cloud Monitoring provide logs, metrics, and tracing.

For the shown create request, the service returns 201 Created. The response contains id, name, description, isPublic, ownerId, createdAt, updatedAt, shareUrl, and itemsCount. The response travels from the Collections Service back through the API Gateway and then to the client over HTTPS. Separately, the service can publish collection.created, collection.updated, and collection.shared events to Pub/Sub. The notification path is asynchronous, so email or push work does not need to block the main request and response.

The design keeps one small public boundary while allowing internal pieces to scale independently. Regional databases support growing collection data. Caching reduces repeated reads. Pub/Sub separates background processing from user-facing work. The benefit is clear ownership and a small client contract. The downside is more infrastructure, including a gateway, databases, caching, event processing, monitoring, and secret management. I would accept that cost because it supports growth without making the public API unnecessarily large.

The main choice is to expose one small public contract and hide scaling details behind it. The benefit is that clients stay simple while the Collections Service can grow independently. JWT authentication and authorization scopes protect the public API. Rate limiting and quotas protect shared capacity. Request validation stops bad input before business processing. mTLS protects traffic between the gateway and service. Regional databases improve scale and availability, but they add operational work. Pub/Sub keeps notification work away from the main response path. Caching can reduce repeated reads, but cached data may be older than stored data. Logging, metrics, and tracing help operators find problems. The downside is extra infrastructure. We accept it because each part has a clear responsibility.

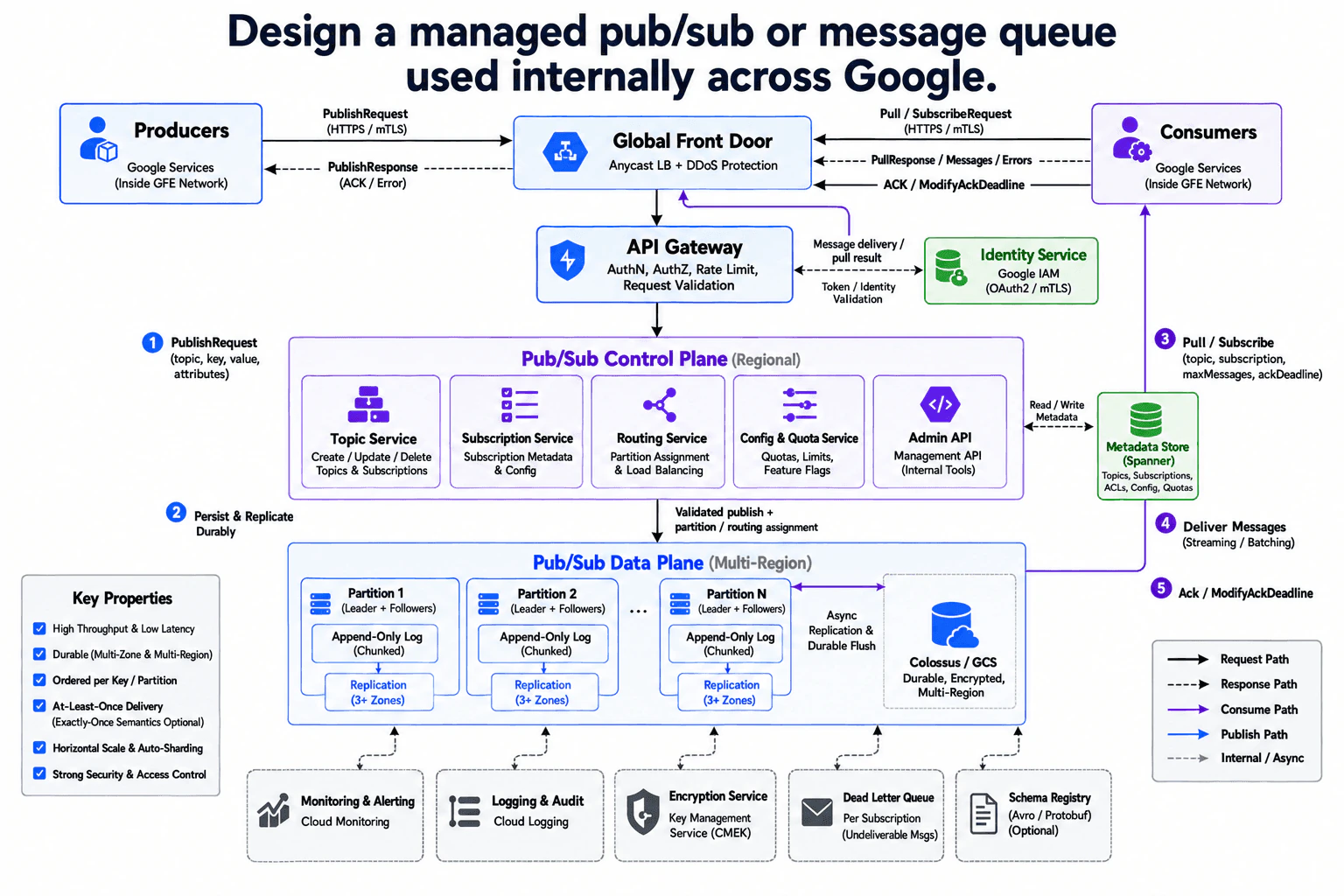

At a high level, I would build one managed service for durable publish and subscribe. Producers send PublishRequest calls through the Global Front Door over HTTPS and mTLS. The API Gateway handles authentication, authorization, rate limits, and request validation. The regional control plane manages topics, subscriptions, routing, quotas, and metadata. The multi-region data plane stores messages in replicated partition logs. Consumers pull or subscribe, receive messages through the API boundary, and acknowledge processing. The benefit is durable horizontal scale. The trade-off is replication and operational complexity.

This question asks us to design one shared messaging system for many internal Google services. A producer should be able to send a message without knowing which consumer will process it. Consumers should receive those messages safely and reliably. The system should continue working when machines or zones fail. It also needs clear rules for publishing, subscribing, ordering, and acknowledging messages. I will follow the attached design from the client boundary, through validation and routing, into durable storage, and then back through message delivery and acknowledgment.

• Do we need both pull and streaming delivery for consumers?
• Is ordering required only per key or partition?
• Should at-least-once delivery be the normal behavior?
• How long should undeliverable messages be retained?

I would start with one clear API boundary for producers and consumers. Producers send a PublishRequest to the Global Front Door over HTTPS with mTLS. The publish contract contains the topic, key, value, and attributes shown in the diagram. The Global Front Door provides Anycast load balancing and DDoS protection.

A PublishResponse returns from the Global Front Door to the producer with an ACK or error. Consumers also connect through the Global Front Door. They send a Pull / SubscribeRequest containing the topic, subscription, maxMessages, and ackDeadline. Pull responses, delivered messages, errors, and acknowledgments use separate directions so the contract stays clear.

The Global Front Door forwards traffic to the API Gateway. The gateway performs authentication, authorization, rate limiting, and request validation. Authentication checks who the caller is. Authorization decides whether that caller may perform the requested action.

The gateway uses the Identity Service for token and identity validation. The diagram shows Google IAM with OAuth2 and mTLS. Rate limits protect shared capacity from a noisy producer or consumer. Request validation blocks bad input before it reaches the messaging core.

Validated requests enter the regional Pub/Sub Control Plane. The Topic Service manages topics and subscriptions. The Subscription Service manages subscription metadata and configuration. The Routing Service performs partition assignment and load balancing. The Config & Quota Service manages quotas, limits, and feature flags. The Admin API supports internal management tools.

The control plane reads and writes metadata in Spanner. That metadata includes topics, subscriptions, ACLs, configuration, and quotas. Message payloads do not belong in this metadata store.

For a publish, the control plane sends the validated publish plus its partition and routing assignment into the Pub/Sub Data Plane. The data plane is divided into partitions. Each partition has a leader and followers and uses a chunked append-only log.

The diagram shows replication across three or more zones. It also shows asynchronous replication and durable flush into Colossus / GCS. That storage is durable, encrypted, and multi-region. Partitioning provides horizontal scale, while replication protects committed data from machine and zone failures.

For consumption, the Pull / SubscribeRequest enters through the same client boundary. The system uses subscription metadata and the data plane to find the correct messages. Message delivery or the pull result returns through the Global Front Door to the consumer. Delivery can use streaming or batching.

After processing a message, the consumer sends ACK / ModifyAckDeadline back through the Global Front Door. An ACK marks successful processing. ModifyAckDeadline gives the consumer more time before the message becomes eligible for redelivery. The diagram uses at-least-once delivery by default, so consumers should tolerate duplicate delivery. Ordering is provided per key or partition rather than globally.

The design includes monitoring and alerting through Cloud Monitoring and logging and audit through Cloud Logging. An Encryption Service provides key management with CMEK. A per-subscription Dead Letter Queue holds undeliverable messages. An optional Schema Registry supports Avro or Protobuf schemas.

The main trade-off is operational complexity. Multi-zone and multi-region replication improve durability, but they require more storage, coordination, and background replication. Partitioning gives high throughput and horizontal scale, but ordering is limited to a key or partition.

At a high level, I would explain an API as a messenger between an app and a service. In this example, the app asks for menu information with GET /menu over HTTPS. The API receives the request, checks that it is allowed, understands it, and sends it to the service. The service does the work and returns the result to the API. The API then sends 200 OK with the data back to the app. The benefit is that the API hides the service's complexity and gives both sides clear rules, although it adds another step to the request path.

This question asks me to explain a technical idea in everyday language. Imagine that a person wants something from a service but does not need to know how that service works inside. The API sits between the person’s app and the service. It carries the request to the right place and brings the result back. The goal is to make communication simple, controlled, and easy to understand. I would follow the diagram from the person using the app, through the API, to the service, and then trace the answer back.

• Should I keep the explanation completely non-technical and use the restaurant analogy?
• Should I explain only the basic request-and-response flow shown in the diagram?

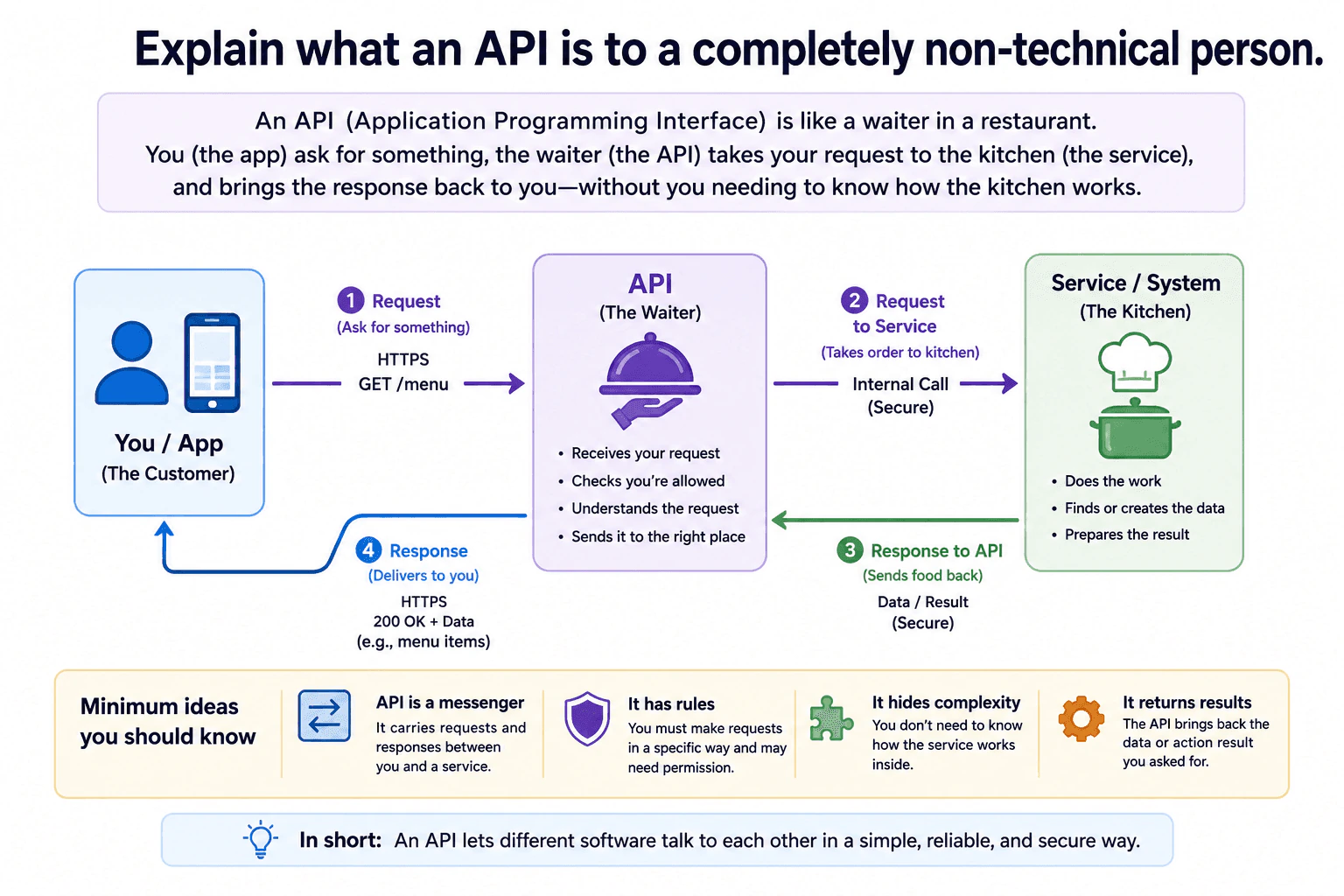

I would say that an API is like a waiter in a restaurant. The customer does not walk into the kitchen and prepare the food. The customer tells the waiter what they want. The waiter takes that request to the kitchen. The kitchen does the work. Then the waiter brings the result back.

In the diagram, You / App is the customer. The API is the waiter. The Service / System is the kitchen. This gives a non-technical person the main idea before introducing any software terms.

The request starts from You / App. The diagram shows the app sending an HTTPS request to the API. The example is GET /menu.

HTTPS means the communication is protected while it travels between the app and the API. For a non-technical explanation, the important idea is simply that the app asks for something in an agreed and protected way.

The request arrow points from the app to the API.

The API acts as the messenger. It receives the request, checks that it is allowed, understands what is being requested, and sends it to the correct place.

The diagram also says that an API has rules. The caller must make requests in a specific way and may need permission. The API therefore gives the app a clear way to communicate with the service.

It also hides complexity. The app does not need to know how the service works inside.

After handling the request, the API sends an Internal Call to the Service / System. The diagram labels this call as secure.

The service owns the actual work. In the restaurant analogy, this is the kitchen. The API carries the request, while the service performs the requested operation.

For the GET /menu example, the service would find the requested menu information and prepare the result.

The service sends Data / Result back to the API through the response path shown in the diagram. The response arrow points from the service back to the API.

This is important because the request and response are separate directions. The API does not invent the result. It receives the result produced by the service and carries it back to the requester.

The API returns the response to You / App over HTTPS. The diagram shows 200 OK + Data, with menu items as the example. 200 OK means the shown request succeeded.

So the complete flow is: the app asks, the API receives and checks the request, the service does the work, the result returns to the API, and the API delivers it back to the app.

The main benefit is that the API gives software a simple set of rules while hiding the service's internal complexity. The trade-off is that the API adds another step in the communication path. The diagram does not show a failure response, retry path, or fallback, so I would not invent one.

The main design choice is to put the API between the app and the service. The benefit is that the app gets one clear set of rules and does not need to understand how the service works inside. The API receives the request, checks that it is allowed, understands it, and sends it to the correct service. HTTPS protects the app-to-API communication, while the diagram also shows a secure internal call. The service returns the result to the API, and the API returns 200 OK with data when the shown request succeeds. The downside is that the API adds another step to the request path. We accept that extra step because it gives a cleaner communication boundary and hides service complexity from the caller.

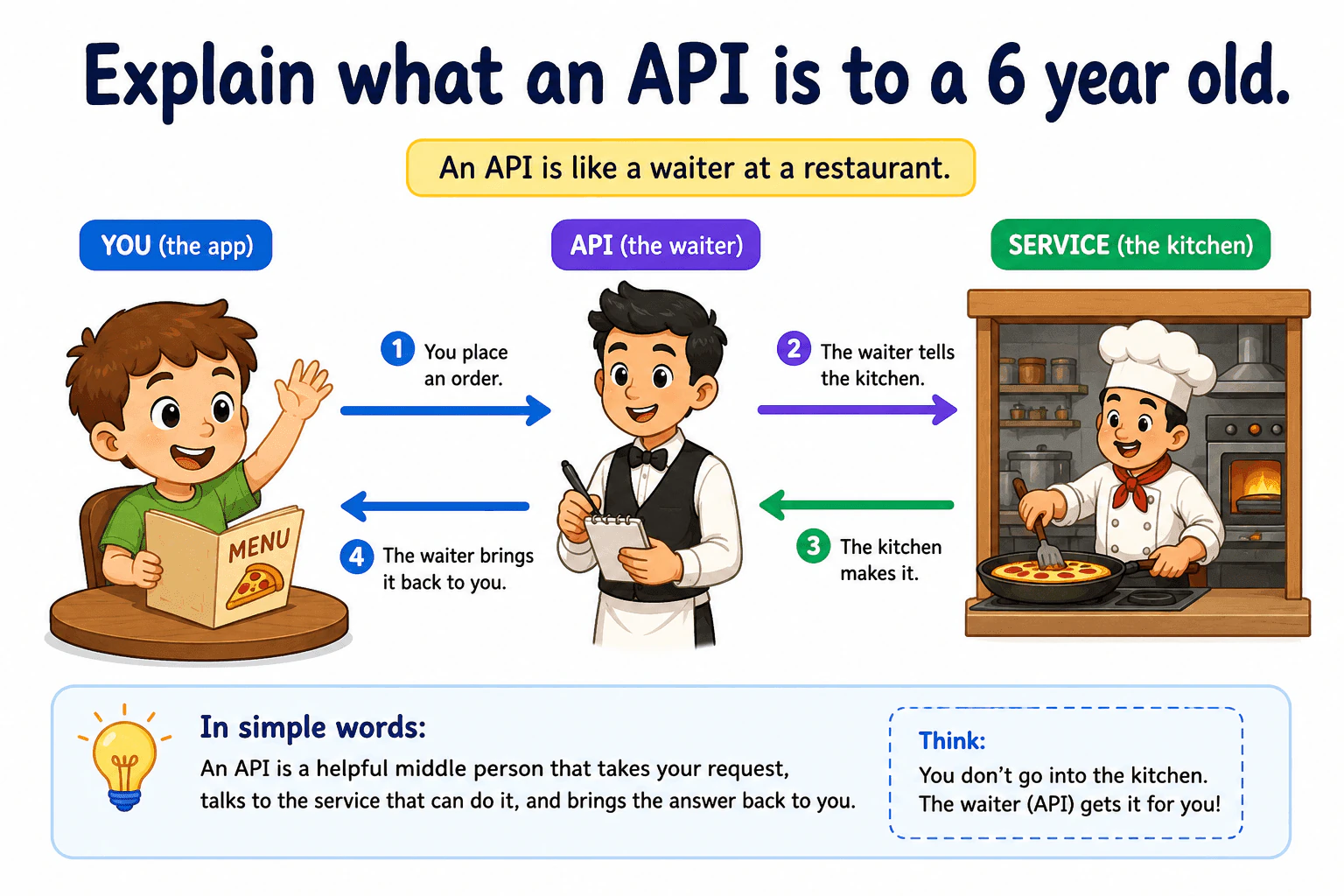

At a high level, I would explain an API using a restaurant. You are like the app, the API is like the waiter, and the service is like the kitchen. You tell the API what you want. The API carries that request to the service. The service does the work and sends the result back through the API. No security or reliability behavior is shown in this simple picture, so I would not invent it. The trade-off is that this child-friendly example leaves out many real API details.

This question asks me to explain one simple idea to a young child. I need to show how one thing can ask another thing for help without knowing how the work is done. The picture uses a restaurant because that is easy to understand. You are the app, the waiter is the API, and the kitchen is the service. The goal is to explain the request going in and the answer coming back. I would follow those four steps exactly and avoid adding technical details that the picture does not show.

• Should I keep the explanation completely child-friendly?
• Is the restaurant example enough, or should I briefly connect it back to apps?

I would begin by saying, "An API is like a waiter at a restaurant." You want something, but you do not walk into the kitchen and make it yourself. Instead, you tell the waiter what you want. The waiter knows where to take your request and how to bring the result back. In the picture, this restaurant story shows how an app can ask a service to do something.

The left side is labeled "YOU (the app)." The first arrow points from you toward the API. This is step 1: "You place an order." In simple words, the app asks for something it wants. The picture does not show a web address, request method, message format, login token, or other technical detail, so I would not add one.

The middle person is labeled "API (the waiter)." Step 2 shows the API sending the request toward "SERVICE (the kitchen)." The picture says, "The waiter tells the kitchen." The API is the helpful middle person. It takes the request from the app and passes it to the service that can do the work. The app does not need to know how the kitchen works inside.

The right side is labeled "SERVICE (the kitchen)." Step 3 says, "The kitchen makes it." This means the service handles the work needed to create the answer. In the restaurant example, that work is making the food. The diagram does not name any technical operation, so I would keep the explanation at that simple level.

The response path goes back in the opposite direction. First, the service sends the result toward the API. Then step 4 shows the API returning it to you: "The waiter brings it back to you." The complete flow is app to API, API to service, service to API, and API back to the app.

I would finish with the message at the bottom: an API is a helpful middle person. It takes your request, talks to the service that can do the work, and brings the answer back. The diagram also reminds us that you do not go into the kitchen yourself. The waiter gets it for you. This explanation is intentionally simple. The picture does not show security, failures, retries, status codes, databases, or other production details, so I would not invent them.

The main design choice is to put the API between the app and the service, just like a waiter stands between a customer and a kitchen. The benefit is that the app can ask for something without knowing how the service does the work inside. The request moves from the app to the API, then to the service. The answer comes back through the API to the app. This keeps the explanation clear and separates asking for work from doing the work. The downside is that the restaurant example is intentionally simplified. It does not explain real API details such as web addresses, request formats, security, errors, or retries. We accept that because the interview question is testing whether the basic idea can be explained clearly to a six-year-old.

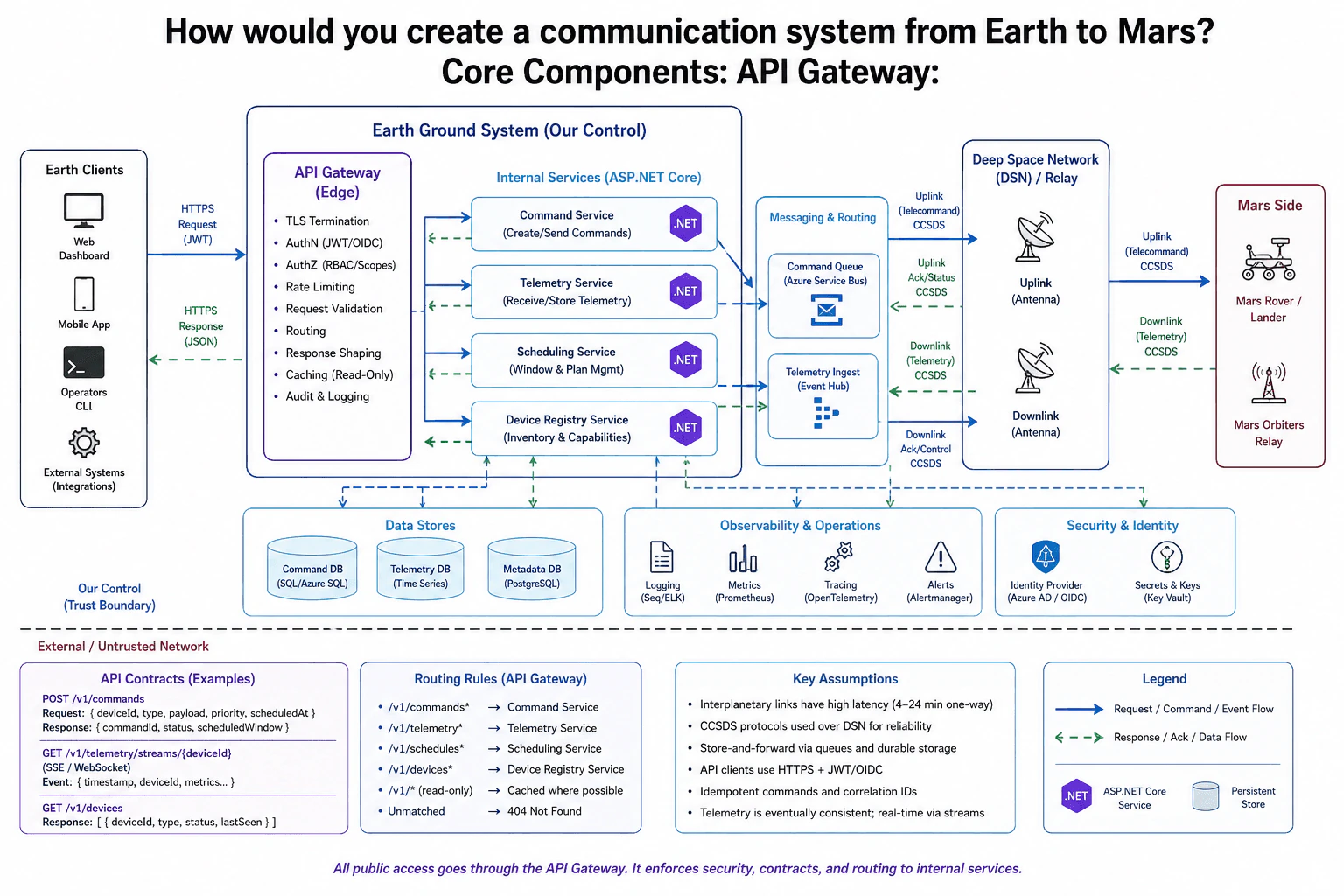

At a high level, I would keep one clear API Gateway boundary on Earth. Earth clients send HTTPS requests using JWT or OIDC identity. The gateway handles TLS termination, authentication, authorization, rate limiting, request validation, routing, response shaping, caching, and audit logging. It routes commands, telemetry, schedules, and device requests to ASP.NET Core services. Commands use durable messaging before crossing the Deep Space Network with CCSDS. Telemetry and acknowledgements return toward Earth. The trade-off is accepting delayed, asynchronous communication so the system remains reliable across an intermittent interplanetary link.

The goal is to let people and systems on Earth safely send commands to Mars and receive information back. The difficult part is distance. A message can take about 4 to 24 minutes one way, and the connection may not always be available. So this cannot work like a normal fast website where the user waits for Mars to answer. The design keeps one controlled entry point on Earth. It then uses internal services, durable messaging, and the Deep Space Network to move commands and telemetry reliably.

• Should a command return after Earth accepts it, or after Mars executes it?
• How much command delay is acceptable?
• Which Earth clients need API access?
• How should duplicate command retries be handled?
• Should telemetry use SSE, WebSocket, or both?

I would put all public access through the Earth API Gateway. The clients are the Web Dashboard, Mobile App, Operations CLI, and external integrations. They send HTTPS requests using JWT or OIDC identity. The gateway terminates TLS, authenticates callers, checks roles or scopes, rate limits traffic, validates request schemas, routes requests, shapes responses, uses read-only caching where suitable, and records audit information. If authentication, authorization, or validation fails, the gateway rejects the request instead of sending it to an internal service.

The gateway sends each accepted request to the correct internal service. /v1/commands* goes to the Command Service. /v1/telemetry* goes to the Telemetry Service. /v1/schedules* goes to the Scheduling Service. /v1/devices* goes to the Device Registry Service. Read-only /v1/* requests may use cached data where possible. An unmatched route returns 404 Not Found. This keeps public routing rules in one place.

The command contract uses POST /v1/commands. Its request contains deviceId, type, payload, priority, and scheduledAt. Its response contains commandId, status, and scheduledWindow. Telemetry uses GET /v1/telemetry/streams/{deviceId} with SSE or WebSocket streaming. Events contain values such as timestamp, device ID, and metrics. GET /v1/devices returns device information including device ID, type, status, and last-seen information.

The Command Service sends accepted work to the Command Queue, shown as Azure Service Bus. This supports store-and-forward behavior when the space link is delayed or unavailable. Idempotent commands and correlation IDs help detect repeated work after retries without claiming exactly-once delivery. Incoming telemetry uses the separate Telemetry Ingest path, shown as Event Hub. The Command DB, Telemetry DB, and Metadata DB keep command, time-series telemetry, and device metadata respectively.

Queued commands move toward the Deep Space Network as an uplink telecommand using CCSDS. The DSN relay forwards the uplink to the Mars rover, lander, or orbiter relay. This part is asynchronous because the interplanetary link has high latency. Durable queues and storage let Earth keep work safely until transmission is possible.

Mars sends telemetry and acknowledgements down through the DSN using CCSDS. Earth receives that data through the Telemetry Ingest flow. The Telemetry Service processes it and exposes it to clients. Client-facing responses return through the API Gateway as HTTPS JSON, while telemetry can be delivered through the shown streaming contract. Telemetry is eventually consistent because space data does not arrive instantly.

Azure AD or OIDC provides identity, while Key Vault holds secrets and keys. The design also includes centralized logging, Prometheus metrics, OpenTelemetry tracing, and Alertmanager alerts. The main benefit is reliability across a slow and intermittent link. The downside is that accepting a command on Earth does not mean Mars has already executed it. Clients must track command status and later acknowledgements instead of expecting an immediate Mars result.

The benefit is that the Earth-facing API remains familiar even though communication with Mars is unusual. The API Gateway gives one place for TLS, identity checks, authorization, rate limits, validation, routing, caching, response shaping, and audit logging. Durable queues protect commands when the DSN link is unavailable. Idempotent commands and correlation IDs make retries safer. The downside is extra operational work. We must run queues, several services, databases, telemetry ingestion, monitoring, and delayed status tracking. Read-only caching improves some Earth-side reads, but it must not make changing data look newer than it is. Telemetry is eventually consistent because of space delay. We accept this complexity because a normal synchronous request model would not work well across a 4-to-24-minute one-way link.
