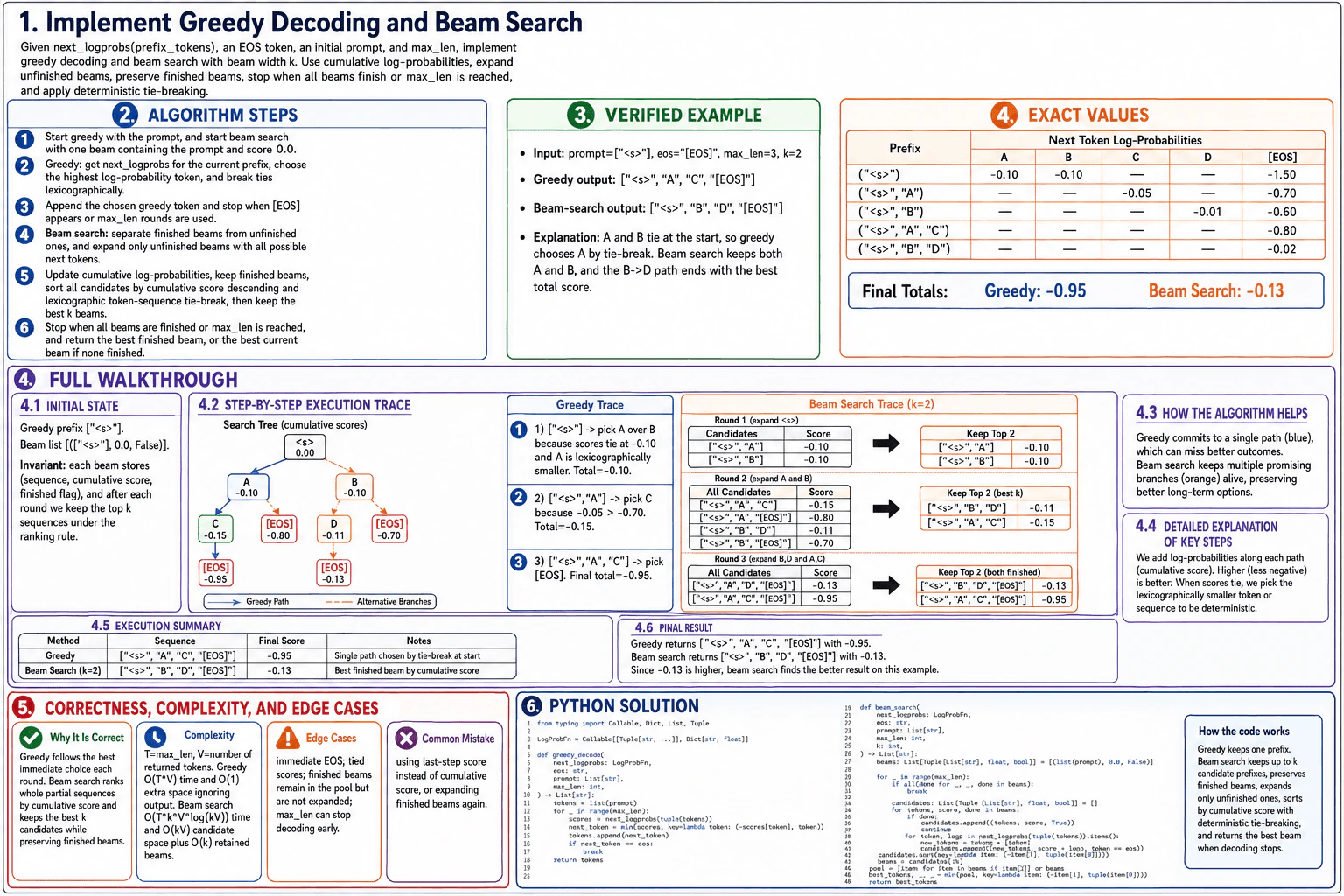

I implement greedy decoding by keeping one prefix and choosing the highest next-token log-probability at each round. Equal scores are broken lexicographically. Beam search keeps the best k prefixes by cumulative log-probability. It preserves finished beams and expands only unfinished ones. Both methods stop at EOS or max_len. Greedy takes O(T × V) time and O(1) auxiliary space, ignoring the output. Beam search takes O(T × k × V × log(kV)) time and O(kV) auxiliary space.

We are building a token sequence one token at a time. The goal is to choose good next tokens and stop when we generate EOS or use max_len rounds. Greedy decoding keeps only one path. Beam search keeps the best k paths. This gives beam search a chance to recover when the best immediate choice does not lead to the best complete sequence.

1. What input sizes, value ranges, and edge cases should the solution handle?
2. What output should be returned for empty, invalid, or duplicate input?
3. Should I prioritize execution time or memory use, and may I use the standard library?

The input contains four main parts.

next_logprobs(prefix_tokens) receives the current token prefix. It returns possible next tokens and their log-probabilities.

eos is the token that marks the end of a sequence.

prompt is the starting token list.

max_len is the maximum number of new tokens that may be generated.

Beam search also receives k. This is the maximum number of beams kept after each round.

Both functions return the generated token list, including the original prompt.

Greedy decoding keeps one running prefix. At each round, it selects the token with the highest next-token log-probability.

Beam search keeps up to k prefixes. Each prefix is called a beam. A beam stores three values:

1. The token sequence.
2. Its cumulative log-probability.
3. A flag that says whether EOS has been generated.

Cumulative log-probability means that we add the log-probability from every generated token. A higher value is better. For negative scores, the value closer to zero is better.

When scores tie, the code chooses the lexicographically smaller token or token sequence. This makes the output deterministic.

Greedy decoding starts with:

tokens = ["<s>"]

Beam search starts with one beam:

(["<s>"], 0.0, False)

The score is 0.0 because no new token has been generated yet. The finished flag is False because the sequence has not generated EOS.

The main beam-search invariant is this: after each round, the beam list contains the best k sequences under cumulative-score ranking and lexicographic tie-breaking.

The example uses:

prompt = ["<s>"]

eos = "[EOS]"

max_len = 3

k = 2

For the prefix ["<s>"], the next-token values are:

A = -0.10

B = -0.10

[EOS] = -1.50

Greedy decoding sees that A and B have equal scores. It selects A because A is lexicographically smaller than B. Its cumulative score is now -0.10.

For ["<s>", "A"], the choices are C = -0.05 and [EOS] = -0.70. Greedy selects C because -0.05 is higher. The cumulative score becomes -0.15.

For ["<s>", "A", "C"], the next token is [EOS] with -0.80. Greedy appends it and stops. The returned sequence is ["<s>", "A", "C", "[EOS]"]. Its final score is -0.95.

Beam search keeps two paths after the first round:

["<s>", "A"] with -0.10

["<s>", "B"] with -0.10

The tie is ordered lexicographically.

During round two, the A beam creates:

["<s>", "A", "C"] with -0.15

["<s>", "A", "[EOS]"] with -0.80

The B beam creates:

["<s>", "B", "D"] with -0.11

["<s>", "B", "[EOS]"] with -0.70

The best two candidates are ["<s>", "B", "D"] with -0.11 and ["<s>", "A", "C"] with -0.15.

During round three, the B path adds [EOS] with -0.02. Its final cumulative score becomes -0.13.

The A path adds [EOS] with -0.80. Its final cumulative score becomes -0.95.

Both retained beams are now finished. Beam search stops and returns ["<s>", "B", "D", "[EOS]"] with -0.13.

The beam-search result is better in this example because -0.13 is greater than -0.95.

Greedy decoding correctly follows its rule. At each round, it selects the highest-scoring next token. It uses the required lexicographic rule when scores tie.

Beam search expands every unfinished retained beam. It carries finished beams forward without expanding them again. It calculates each candidate's cumulative score, sorts all candidates by the required ranking rule, and keeps the best k.

Therefore, after every round, the retained beam list contains the highest-ranked k candidates allowed by the beam width.

The greedy function copies the prompt into tokens. It performs at most max_len rounds. During each round, it calls next_logprobs, selects the best token, appends it, and stops if it is EOS.

The selection key is (-scores[token], token). Negating the score places higher scores first. The token text handles equal scores lexicographically.

The beam-search function stores beams as tuples containing tokens, score, and finished status.

At the start of each round, it stops if every retained beam is finished. It copies finished beams into the candidate list without expanding them. It expands unfinished beams with every token returned by next_logprobs.

It sorts candidates using (-score, tuple(tokens)) and keeps candidates[:k]. At the end, it prefers finished beams. If none of the retained beams finished, it returns the best current beam.

Let T be max_len. Let V be the number of tokens returned by next_logprobs.

Greedy decoding examines up to V choices during each of T rounds. Its time complexity is O(T × V). Its auxiliary space is O(1) when the returned token list is not counted.

Beam search may generate up to kV candidates in one round. Sorting them costs O(kV × log(kV)). Across T rounds, the time complexity is O(T × k × V × log(kV)). The diagram reports O(kV) auxiliary candidate space and O(k) retained beams.

Relevant edge cases include immediate EOS, equal token or beam scores, max_len being reached before EOS, and finished beams that must be preserved but never expanded again.

The key idea is to compare a one-path local strategy with a limited multi-path strategy. Greedy decoding keeps one prefix and chooses the best immediate token. Beam search keeps up to k prefixes and ranks them by cumulative log-probability. Each beam stores its token sequence, cumulative score, and finished flag. The central invariant is that after every round, the beam list contains the best k candidates under score-first ranking with lexicographic tie-breaking. Finished beams remain eligible but are not expanded again.

Let T be max_len. Let V be the number of tokens returned by next_logprobs. Greedy decoding checks up to V choices during each of T rounds, so its time complexity is O(T × V). It uses O(1) auxiliary space when the returned sequence is not counted. Beam search can create up to kV candidates per round and sorts those candidates. Its time complexity is O(T × k × V × log(kV)). Its auxiliary candidate space is O(kV), and it retains O(k) beams.

A common mistake is ranking beams by only the newest token score instead of the full cumulative score. Another mistake is expanding a beam after it has generated EOS. Some implementations drop finished beams instead of preserving them. Candidates may also forget deterministic tie-breaking, which can make equal scores produce unstable results. Another mistake is stopping when only one beam finishes instead of stopping when all retained beams finish or max_len is reached.

Before coding, state the beam invariant clearly: after every round, keep the best k sequences by cumulative score, preserve finished beams, expand only unfinished beams, and use the same tie-break rule everywhere.

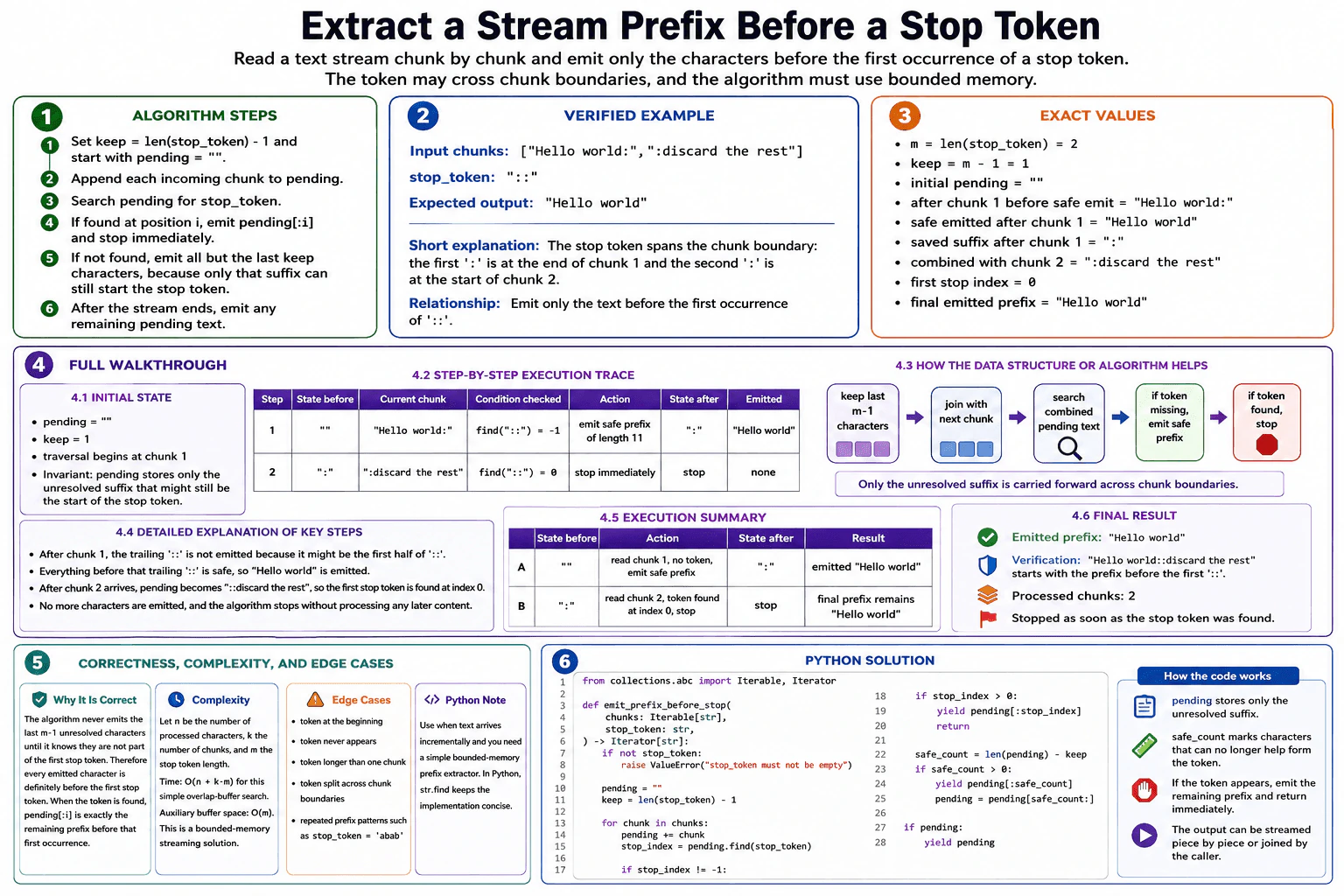

I keep a pending buffer for characters that may still form the stop token. For each chunk, I append it, search for the first token, and stop immediately if it appears. Otherwise, I emit everything except the final m - 1 characters. Those characters may combine with the next chunk. This handles tokens split across boundaries. The shown overlap search takes O(n + k·m) time. It retains O(m) carry-over state, while the Python concatenation may temporarily use O(c + m) memory.

The input is a sequence of text chunks and a non-empty stop token. We must emit only the content before the token’s first occurrence. The token may begin in one chunk and finish in the next. The solution keeps a small unresolved suffix between chunks instead of storing the full stream.

1. What input sizes, value ranges, and edge cases should the solution handle?
2. What output should be returned for empty, invalid, or duplicate input?
3. Should I prioritize execution time or memory use, and may I use the standard library?

The function receives an iterable of string chunks and a stop token. It yields pieces of the text before the first complete token.

For the diagram’s example, the chunks are ["Hello world:", ":discard the rest"]. The stop token is "::". The final output is "Hello world".

The function stops as soon as it finds the first token. It does not emit the token or anything after it.

Let m be the length of the stop token. After an unsuccessful search, the algorithm keeps the last m - 1 characters.

Those characters are unresolved. They may be the beginning of a token that finishes in the next chunk. All earlier characters are safe to emit.

The central invariant is that the retained pending state contains only the unresolved suffix that may still begin the first stop token.

The algorithm starts with pending = "".

For stop_token = "::", m is 2. Therefore, keep = m - 1 = 1.

Processing starts with the first chunk.

Before the first chunk, pending is "". The algorithm appends "Hello world:", so pending becomes "Hello world:".

It checks pending.find("::"). The result is -1, so the full token is not present.

The algorithm keeps the final one character because keep is 1. That character is ":". It emits the safe prefix "Hello world". The new pending state is ":".

Next, the algorithm appends ":discard the rest". Pending becomes "::discard the rest".

It checks pending.find("::") again. The result is 0. The token begins at the first character of pending.

There is no additional text before the token, so the function emits nothing more and returns immediately. No later content is processed.

The final joined output is "Hello world". Two chunks were processed.

The algorithm does not emit the last m - 1 unresolved characters until it knows they are not part of the first stop token.

Therefore, every emitted character is definitely before that token. When the token is found at index i, pending[:i] is exactly the remaining text before its first occurrence.

The code first rejects an empty stop token. It initializes pending and calculates keep.

For each chunk, it appends the chunk to pending and searches for the token with str.find.

If the token is found, the code yields pending[:stop_index] when that slice is non-empty. It then returns immediately.

If the token is not found, safe_count tells us how many characters can be emitted. The code yields that safe prefix and retains only the final keep characters.

If the stream ends without the token, the code yields the remaining pending text.

Let n be the number of processed characters, k be the number of processed chunks, and m be the token length. The overlap-buffer analysis shown in the diagram is O(n + k·m) time.

The retained carry-over state between chunks is O(m). In this exact Python implementation, pending += chunk creates a temporary combined string. If c is the largest chunk length, peak temporary memory can be O(c + m). The bounded state carried from one chunk to the next remains O(m).

Important cases include a token at the beginning, a token that never appears, a token longer than one chunk, a token split across chunk boundaries, and a token with repeated prefix patterns such as "abab".

The key insight is that only the final m - 1 characters can still become the beginning of a token that crosses a chunk boundary. When no token is found, the algorithm emits every earlier character and carries only that unresolved suffix forward. The invariant is that the retained pending state contains only characters that have not yet been proved safe to emit. This lets the program process a large stream incrementally and stop as soon as the first token appears.

Let n be the number of characters processed before the function stops, k be the number of chunks processed, and m be the stop token length. The overlap-buffer analysis is O(n + k·m) time because every chunk is searched together with at most m - 1 carried characters. The retained buffer between chunks is O(m). In the exact Python code, concatenating pending and the current chunk creates a temporary string, so peak temporary memory is O(c + m), where c is the largest processed chunk. Yielded output is not counted as auxiliary memory.

One mistake is searching each chunk separately. That misses a token split across chunk boundaries. Another mistake is emitting the whole pending string when the token is absent. The final m - 1 characters must be retained. Some candidates keep the complete stream, which breaks the bounded carry-over requirement. Others continue reading after finding the first token. It is also incorrect to allow an empty stop token without defining special behavior or to claim that the exact Python implementation has only O(m) peak memory without discussing the temporary combined string.

State the invariant first: the retained pending state contains only the unresolved suffix that may still begin the token. Then use the two colons in the example to show why the final colon of the first chunk cannot be emitted yet.

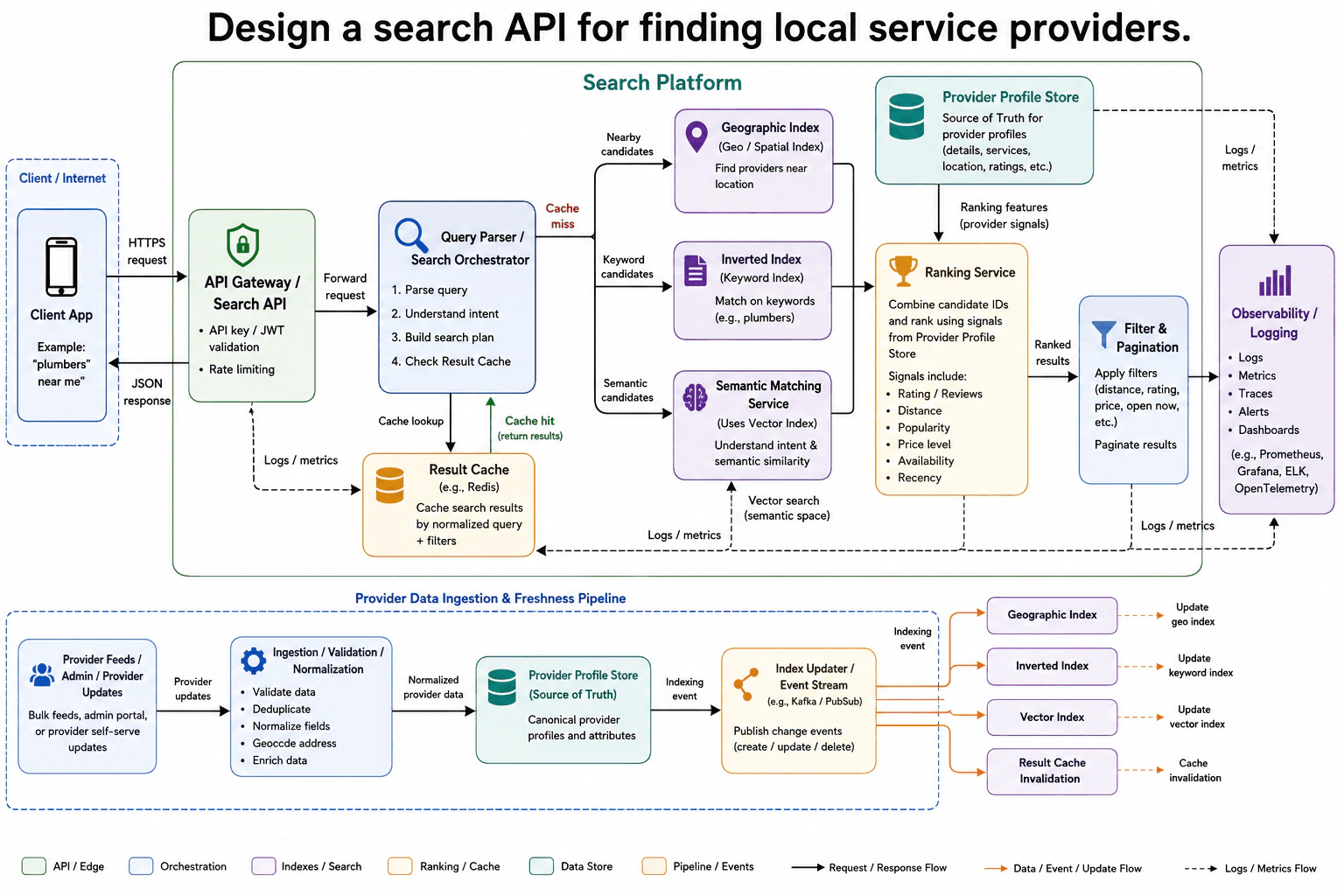

At a high level, I would build one search flow for nearby service providers. The client sends an HTTPS request to the API Gateway, which validates the API key or JWT and applies rate limits. The Search Orchestrator checks Redis first. On a cache miss, it searches the geographic index, keyword index, and semantic matching service. It combines provider candidates, ranks them with profile signals, then applies filters and pagination. The API returns JSON results. The main trade-off is better search quality and speed, but more indexes must remain fresh.

The goal is to return useful local providers for a query such as "plumbers near me." The main challenge is combining location, keywords, meaning, ranking, filters, and fresh provider data. I would explain the design by following the serving and ingestion flows in the diagram.

1. Which clients and core use cases must the API support?
2. What authentication, authorization, and data-validation rules should I assume?
3. What scale, error handling, idempotency, and versioning requirements matter?

I would start with the user request. The Client App sends an HTTPS request to the API Gateway / Search API. The request includes the search text and location context.

The gateway validates the API key or JWT. A JWT is a signed token that carries caller information. The gateway also applies rate limiting, which stops one caller from sending too many requests.

After validation, the gateway forwards the request to the Query Parser / Search Orchestrator. The final JSON response returns through the gateway to the Client App.

The Query Parser / Search Orchestrator reads the query and understands its intent. For example, it separates the requested service from the location. It then builds a search plan.

Before running several searches, it checks the Result Cache, such as Redis. The cache stores search results using a normalized query and its filters.

A cache hit returns stored results to the orchestrator. A cache miss continues to the search indexes. This lowers response time for repeated queries. The downside is that cached results can become stale, so the update pipeline invalidates affected cache entries.

On a cache miss, the orchestrator uses three search paths.

The Geographic Index finds providers near the requested location. The Inverted Index matches words such as "plumbers" against provider services and related text. An inverted index maps each word to matching records, which makes keyword searches fast.

The Semantic Matching Service handles meaning instead of only exact words. It uses a Vector Index to compare the query with provider information in a numeric meaning space.

Each search path returns provider candidates. The orchestrator combines these candidate IDs before sending them to ranking.

The Ranking Service receives the combined candidate IDs. It reads ranking features from the Provider Profile Store, which is the source of truth for provider details.

The diagram shows signals such as ratings, reviews, distance, popularity, price level, availability, and recency. The Ranking Service uses these signals to order the candidates.

The ranked results move to Filter & Pagination. This component applies filters such as distance, rating, price, and open status. It then divides the result list into pages.

The paginated result is returned through the API Gateway as a JSON response to the Client App.

Provider feeds, administrators, and providers send updates into the Provider Data Ingestion & Freshness Pipeline.

The Ingestion / Validation / Normalization component validates data, removes duplicates, normalizes fields, geocodes addresses, and enriches records. The clean data is written to the Provider Profile Store.

The store sends an indexing event to the Index Updater / Event Stream. The diagram gives Kafka or Pub/Sub as examples. The event stream publishes create, update, and delete changes.

These events update the Geographic Index, Inverted Index, and Vector Index. They also trigger Result Cache invalidation. This asynchronous flow keeps the serving path fast while the searchable copies remain reasonably fresh.

The main services send logs and metrics to Observability / Logging. This supports logs, metrics, traces, alerts, and dashboards.

The benefit of the design is fast search with strong relevance. Each index handles a different problem. The downside is operational complexity. Several searchable copies must stay aligned with the Provider Profile Store.

The design accepts short freshness delays because synchronous updates to every index would make provider writes slower and less reliable.

The benefit is that each component has one clear job. The Geographic Index handles distance. The Inverted Index handles matching words. The Vector Index helps find similar meaning. Redis makes repeated searches faster. The downside is that provider data exists in several searchable copies. The Provider Profile Store may change before every index receives its update event. This creates a short period of stale results. The event stream reduces this problem by updating every index and invalidating related cache entries. More ranking signals can improve result quality, but they add read cost and tuning work. Rate limiting protects the API, but it may reject requests from callers that exceed the allowed rate. We accept these costs because local search needs low latency, useful ranking, flexible filters, and fresh provider information.

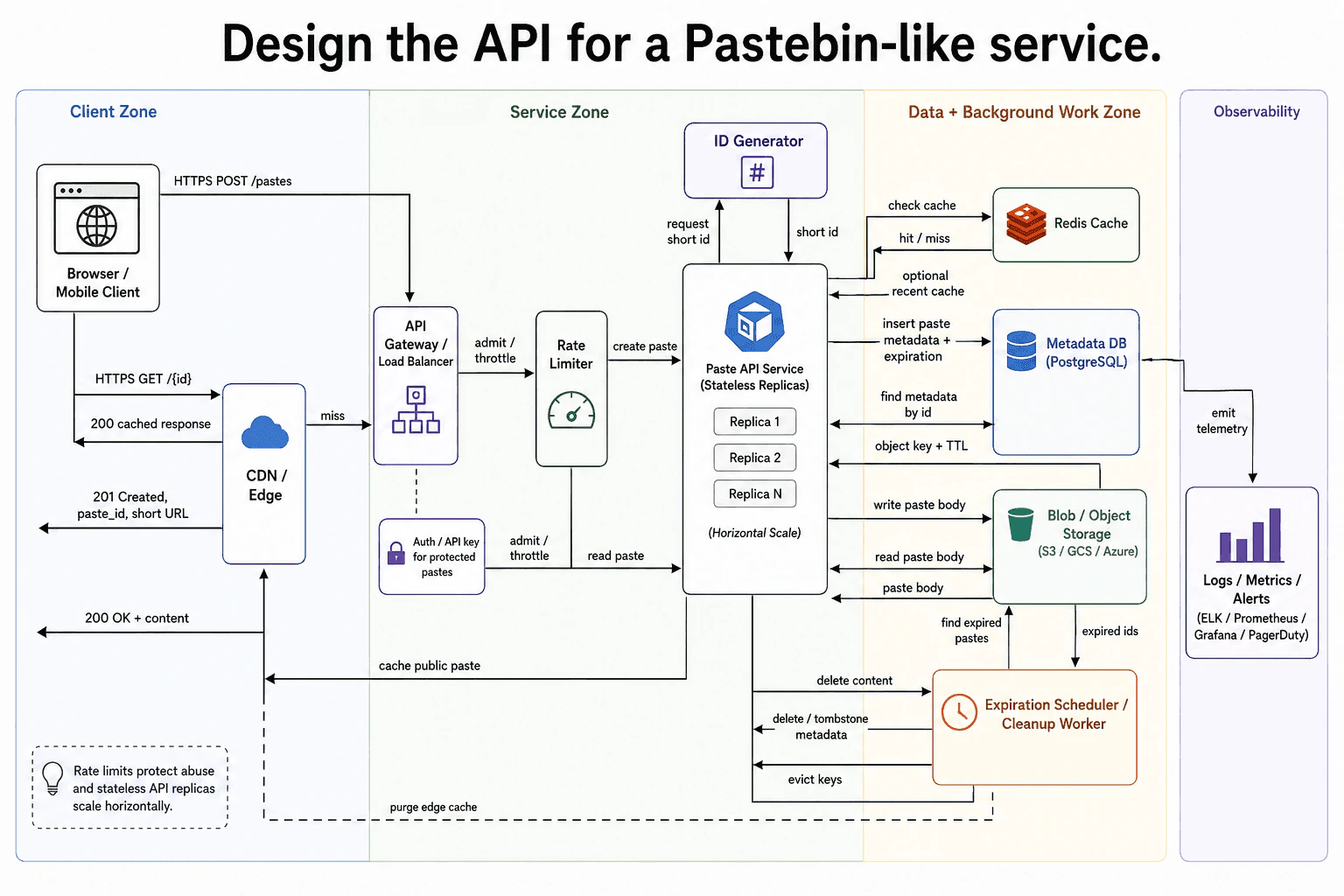

At a high level, I would support two main flows: creating a paste and reading a paste. The client sends POST /pastes through the API Gateway and Rate Limiter. The Paste API Service gets a short ID, stores the text in object storage, and saves metadata in PostgreSQL. For reads, GET /{id} first checks the CDN and Redis. A cleanup worker removes expired data and cached copies. The trade-off is more cache and cleanup complexity in exchange for faster reads and easier horizontal scaling.

The goal is to create and retrieve text pastes through short identifiers. The main challenge is serving popular reads while enforcing expiration correctly. I will explain the design by following the flows shown in the diagram.

1. Which clients and core use cases must the API support?
2. What authentication, authorization, and data-validation rules should I assume?
3. What scale, error handling, idempotency, and versioning requirements matter?

I would begin with two main endpoints. The client uses POST /pastes to create a paste. It uses GET /{id} to retrieve one.

The Browser or Mobile Client sends uncached requests through the API Gateway and Load Balancer. The gateway routes traffic to the service layer. The Rate Limiter admits or throttles requests before they reach the Paste API Service.

Protected pastes may also use the shown Auth or API key check. This check is attached to the API layer. Public pastes can use the normal read path through the CDN.

The create flow starts with HTTPS POST /pastes. The request reaches the API Gateway and then passes through the Rate Limiter. After admission, one stateless Paste API Service replica handles the request.

The service asks the ID Generator for a short ID. The ID Generator returns the short ID to the service. The service writes the paste body to Blob or Object Storage. It then inserts the paste metadata and expiration information into PostgreSQL.

The metadata connects the short ID to the stored object. It also holds the expiration information needed during reads and cleanup. The service may place the new paste in Redis as an optional recent cache.

After the write succeeds, the client receives 201 Created, the paste ID, and the short URL.

The read flow starts with HTTPS GET /{id}. The request first reaches the CDN or Edge Cache.

If the CDN already has the public paste, it returns a 200 cached response directly to the client. This avoids work in the API service, PostgreSQL, and object storage.

This path is useful because a small number of popular pastes may receive many repeated reads. The CDN absorbs those hot reads close to the client.

If the CDN misses, it forwards the request to the API Gateway. The request passes through the Rate Limiter and reaches a Paste API Service replica.

The service first checks Redis Cache. Redis returns either a hit or a miss. On a Redis hit, the service can use the cached paste.

On a Redis miss, the service looks up metadata by ID in PostgreSQL. PostgreSQL returns the object key and time-to-live information. The service then reads the paste body from Blob or Object Storage.

After reading the paste, the service places the result in Redis. It also caches the public paste at the CDN. The client then receives 200 OK with the paste content.

Expiration runs outside the normal request path. The Expiration Scheduler or Cleanup Worker finds expired pastes and receives their IDs.

The worker deletes the stored content from Blob or Object Storage. It deletes or tombstones the related metadata. A tombstone is a marker showing that the record is no longer active.

The worker also evicts Redis keys and purges the edge cache. This step is important because deleting only the database record could leave an expired cached copy available.

The trade-off is extra background work. Cleanup must coordinate several stored copies of the same paste.

The Paste API Service runs as stateless replicas. Stateless means request data is not kept inside one server between calls. The Load Balancer can therefore send a request to any healthy replica.

The CDN handles hot public reads. Redis reduces repeated database and storage lookups. PostgreSQL stores metadata, while object storage keeps the paste body.

The system emits telemetry to the Logs, Metrics, and Alerts platform. Telemetry means operational data used to find errors, measure load, and trigger alerts.

The benefit is fast reads and simple horizontal scaling. The downside is more components and harder cache invalidation.

The benefit of this design is that each component has a clear job. The API Gateway routes requests. The Rate Limiter protects the service from too much traffic. PostgreSQL stores metadata, while object storage keeps the paste body. Redis and the CDN make repeated reads faster. The downside is more operational work. Cached copies can become stale, so the cleanup worker must remove them after expiration. The ID Generator must also avoid duplicate short IDs. Stateless API replicas are easy to scale because any replica can handle a request. However, all shared state must remain in PostgreSQL, Redis, or object storage. We accept this complexity because Pastebin traffic is often read-heavy. Faster cached reads reduce latency and lower pressure on the storage systems.

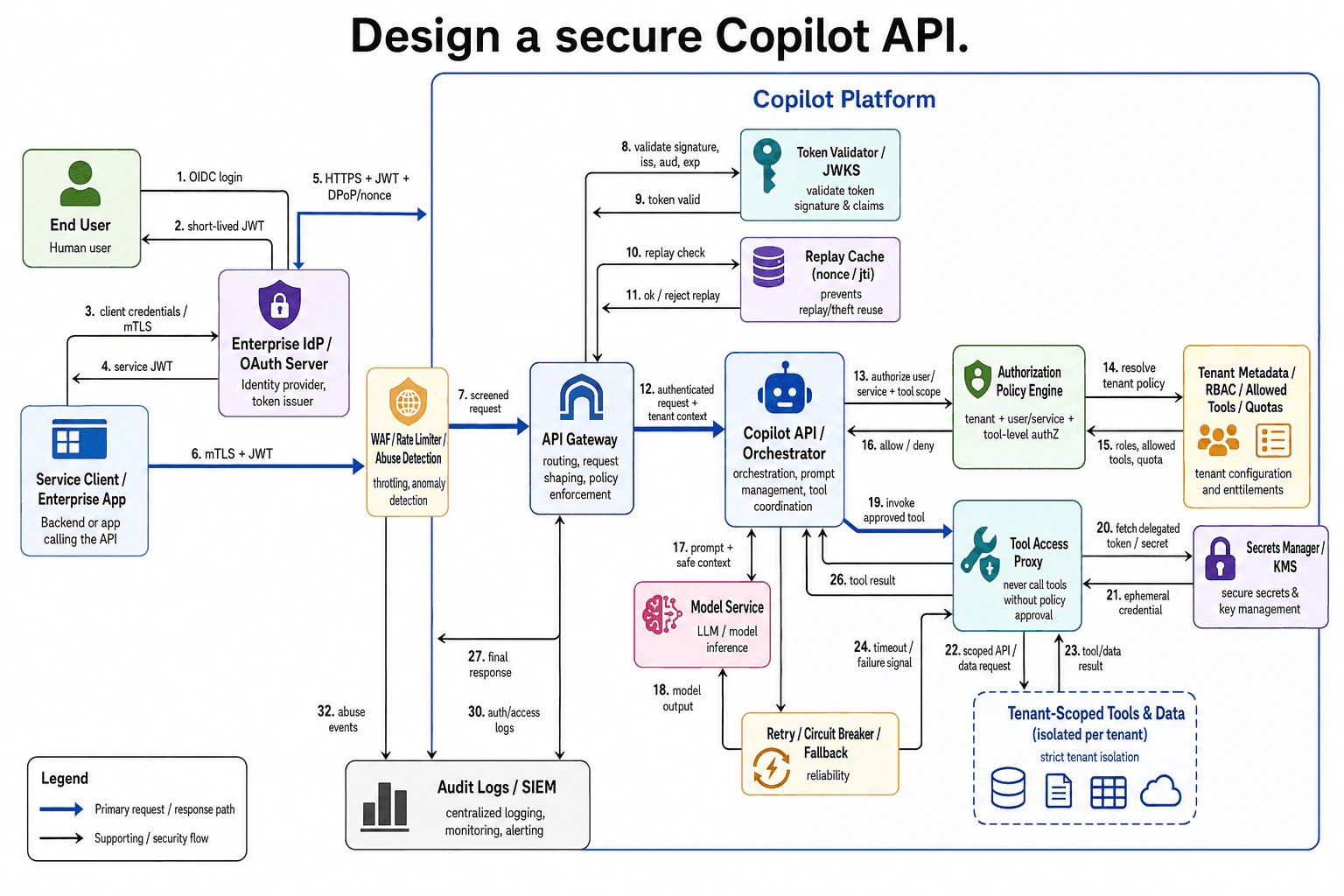

At a high level, I would secure the Copilot API in layers. Human users and service clients first receive short-lived JWTs from the Enterprise IdP / OAuth Server. Requests pass through abuse controls, the API Gateway, token validation, and replay checks. The Copilot API / Orchestrator then uses tenant-aware authorization before calling the model or any approved tool. Tool calls use ephemeral credentials and tenant-scoped resources. Failures can produce a fallback or partial result. The trade-off is stronger security and isolation, with extra latency and operational complexity.

The goal is to provide a secure Copilot API for many enterprise tenants. The main challenge is protecting identities, tools, data, and responses together. I would explain the design by following the diagram from login to the final response.

1. Which clients and core use cases must the API support?
2. What authentication, authorization, and data-validation rules should I assume?
3. What scale, error handling, idempotency, and versioning requirements matter?

I would start by separating human and service authentication. The End User performs an OIDC login with the Enterprise IdP / OAuth Server. OIDC is a standard login method for applications. The identity provider returns a short-lived JWT. A JWT is a signed token containing identity and security claims.

The Service Client / Enterprise App uses client credentials with mTLS. mTLS encrypts the connection and lets both sides verify each other. The identity provider returns a short-lived service JWT. Short token lifetimes reduce the damage caused by token theft.

The End User sends HTTPS with JWT and DPoP or nonce proof. The Service Client / Enterprise App sends mTLS with JWT. Both request paths first reach WAF / Rate Limiter / Abuse Detection.

This component throttles heavy callers and detects unusual traffic. It sends abuse events to Audit Logs / SIEM. Only a screened request moves to the API Gateway.

The API Gateway owns routing, request shaping, and policy enforcement. It does not trust a token only because the caller supplied one.

The API Gateway asks Token Validator / JWKS to validate the token. JWKS contains public signing keys used to verify JWT signatures. The validator checks the signature, issuer, audience, and expiration. It returns a token-valid result to the gateway.

The gateway also asks Replay Cache (nonce / jti) to check for reuse. A nonce is a one-time value. A jti is a unique token identifier. The cache returns either okay or reject replay.

This control protects against replay and stolen-token reuse. Reading a jti alone is not enough. The platform must remember previous use and reject repeated use.

After authentication succeeds, the API Gateway sends the authenticated request and tenant context to Copilot API / Orchestrator. The orchestrator asks Authorization Policy Engine to authorize the user or service and requested tool scope.

Authentication proves who the caller is. Authorization decides what that caller may do. The policy engine resolves tenant policy through Tenant Metadata / RBAC / Allowed Tools / Quotas. RBAC means permissions are assigned through roles.

The metadata component returns roles, allowed tools, and quota information. The policy engine then returns allow or deny to the orchestrator. This prevents callers from using tools or entitlements belonging to another tenant.

The orchestrator sends the prompt and safe context to Model Service. Model Service returns model output to the orchestrator.

When a tool is required, the orchestrator sends an approved invocation to Tool Access Proxy. The proxy must never bypass policy approval. It asks Secrets Manager / KMS for a delegated token or secret.

Secrets Manager / KMS returns an ephemeral credential. Ephemeral means short-lived and limited to the current need. The proxy then sends a scoped API or data request to Tenant-Scoped Tools & Data. These resources are isolated per tenant.

The tool or data result returns to Tool Access Proxy. The proxy then returns the tool result to the orchestrator.

If a tool call times out or fails, Tool Access Proxy sends a failure signal to Retry / Circuit Breaker / Fallback. That component can return a fallback or partial result to the orchestrator. This improves reliability without pretending the failed tool succeeded.

The orchestrator sends the final response to the API Gateway. The gateway returns the response to the originating End User or Service Client / Enterprise App.

Audit Logs / SIEM receives abuse events from WAF / Rate Limiter / Abuse Detection. It also receives authentication and access logs from the API Gateway. The orchestrator records tool usage, authorization decisions, and failures. The audit system supports centralized logging, monitoring, and alerting. It does not create or own the business response.

The benefit is layered protection and strict tenant isolation. The downside is more network hops, policy management, and operational work.

The design uses several controls because one security check is not enough. The benefit is that replayed requests, stolen tokens, unsafe tools, and cross-tenant access become harder. The downside is extra latency and more services to operate. Token validation needs current JWKS signing keys. Replay protection needs storage for used nonce or jti values. Tenant authorization needs correct roles, allowed-tool rules, and quotas. Ephemeral credentials reduce risk, but they must be requested more often. Tool Access Proxy adds another network hop, but it creates one place to enforce tool policy. Retry and fallback improve reliability, but repeated calls may add load. We accept this complexity because enterprise tools and data require strong isolation.

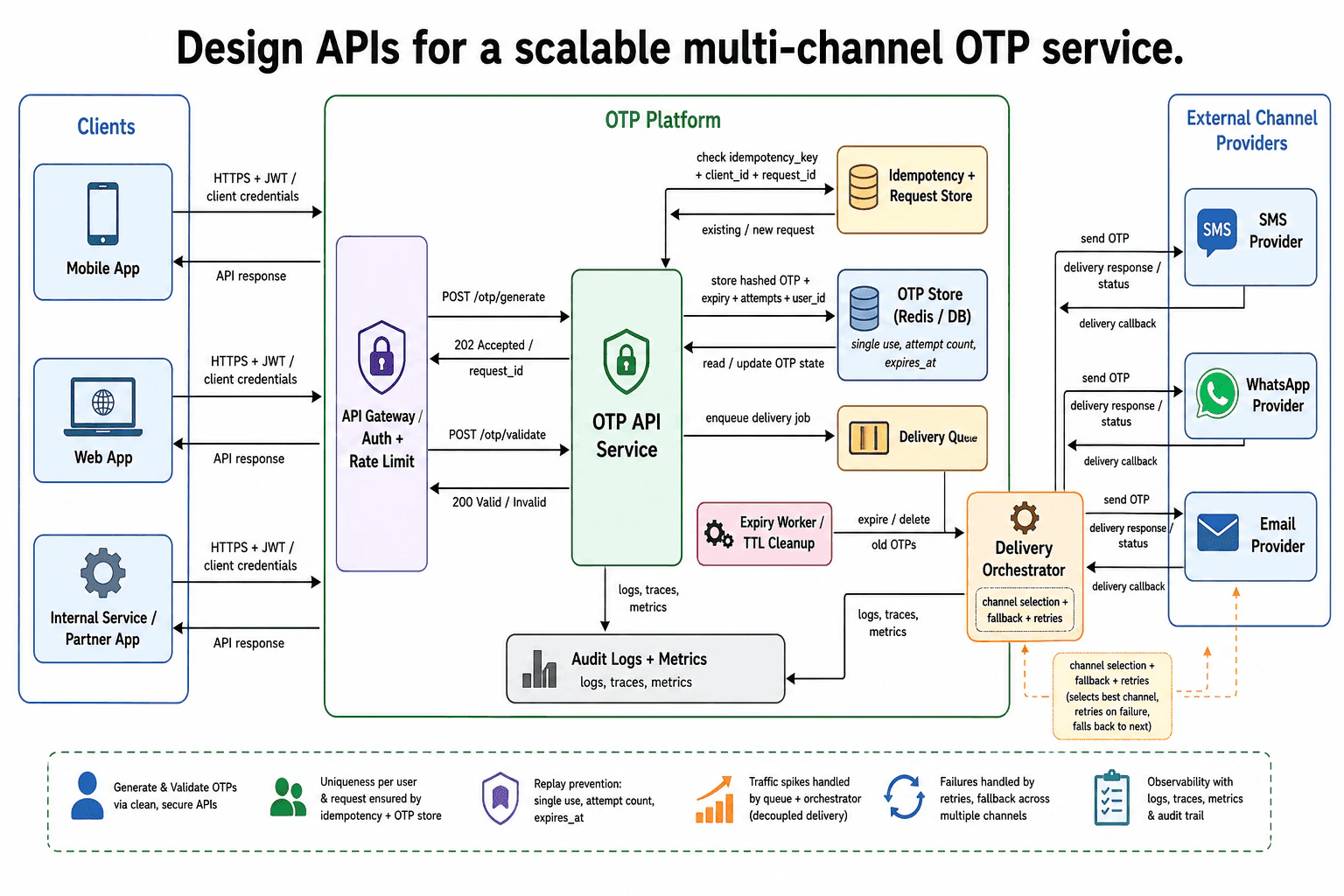

At a high level, I would expose secure APIs for generating and validating OTPs. Mobile, web, and partner clients call POST /otp/generate or POST /otp/validate through the API Gateway. The gateway handles authentication and rate limiting. The OTP API Service checks idempotency, stores a hashed OTP with expiry and attempt state, and prevents reuse. Delivery runs asynchronously through a queue and orchestrator to SMS, WhatsApp, or email. The trade-off is more operational complexity, but the design handles traffic spikes, provider failures, retries, and fallback better.

The goal is to generate, deliver, validate, and expire OTPs across several channels. The main challenge is preventing duplicates and replay while handling provider failures and traffic spikes. I would explain the system by following the request and response paths in the diagram.

1. Which clients and core use cases must the API support?
2. What authentication, authorization, and data-validation rules should I assume?
3. What scale, error handling, idempotency, and versioning requirements matter?

I would begin with the three supported client types. They are Mobile App, Web App, and Internal Service / Partner App. Each client sends HTTPS requests using JWT or client credentials. Requests first reach the API Gateway / Auth + Rate Limit component. The gateway checks the caller and controls excessive traffic. Accepted requests continue to the OTP API Service. Each API response returns through the gateway to the client that made the request.

The client sends POST /otp/generate through the gateway. The OTP API Service checks the Idempotency + Request Store before creating new work. It uses idempotency_key, client_id, and request_id. Idempotency means that retrying the same request does not create another independent operation. The store returns whether the request is existing or new.

For a new request, the service stores the hashed OTP and its state in the OTP Store. The diagram includes expiry, attempt count, user_id, single-use state, and expires_at. The service then sends a delivery job to the Delivery Queue. The response returns to the gateway as 202 Accepted with request_id. This status means the request was accepted, but delivery continues asynchronously.

The Delivery Queue protects the API during traffic spikes. It separates the fast API request from slower provider calls. The Delivery Orchestrator receives the queued work and selects a channel. It can send the OTP through the SMS Provider, WhatsApp Provider, or Email Provider.

Each provider returns a delivery response or status to the orchestrator. A provider can also send a delivery callback. The orchestrator owns channel selection, retries, and fallback. If one channel fails, it can retry or select another supported channel. This failure handling does not change the original request_id or create another independent OTP.

The client sends POST /otp/validate through the same gateway. The OTP API Service reads the current OTP state from the OTP Store. Validation uses the stored hashed OTP and checks its expiry, attempt count, and single-use state. The service then updates the OTP state when needed.

The response returns to the gateway as 200 Valid / Invalid. A successfully used OTP cannot be accepted again. This is replay prevention, which means someone cannot reuse an old valid code. Attempt tracking also limits repeated validation tries.

The Expiry Worker / TTL Cleanup handles expired OTPs in the background. It expires or deletes old OTP state after the allowed lifetime. This prevents stale codes from remaining usable. It also keeps old records from growing without limit. Cleanup is separate from the synchronous generate and validate response paths.

The OTP API Service and Delivery Orchestrator send logs, traces, and metrics to Audit Logs + Metrics. These records help the team investigate failed requests, delivery problems, retry activity, and unusual validation attempts. The audit system observes the business flow. It does not create the client response or decide whether an OTP is valid.

This design adds stores, a queue, an orchestrator, and background processing. These components require monitoring and operational work. The benefit is better separation of responsibilities. API requests remain fast. Delivery can scale independently. Idempotency limits duplicate work. Single-use state reduces replay risk. Retries and fallback improve delivery success across several channels.

The benefit is that each component has one clear job. The gateway handles caller checks and rate limits. The OTP API Service owns generation and validation. The Idempotency + Request Store prevents duplicate requests from creating separate work. The OTP Store keeps the hashed OTP, expiry, attempts, user state, and single-use state. The queue absorbs traffic spikes, while the orchestrator handles delivery, retries, and fallback. The downside is more operational complexity. More services must be monitored and maintained. Asynchronous delivery also means POST /otp/generate can return before the user receives the message. This is safer and more scalable, but it can add delivery delay. We accept this because external providers may be slow or temporarily unavailable.

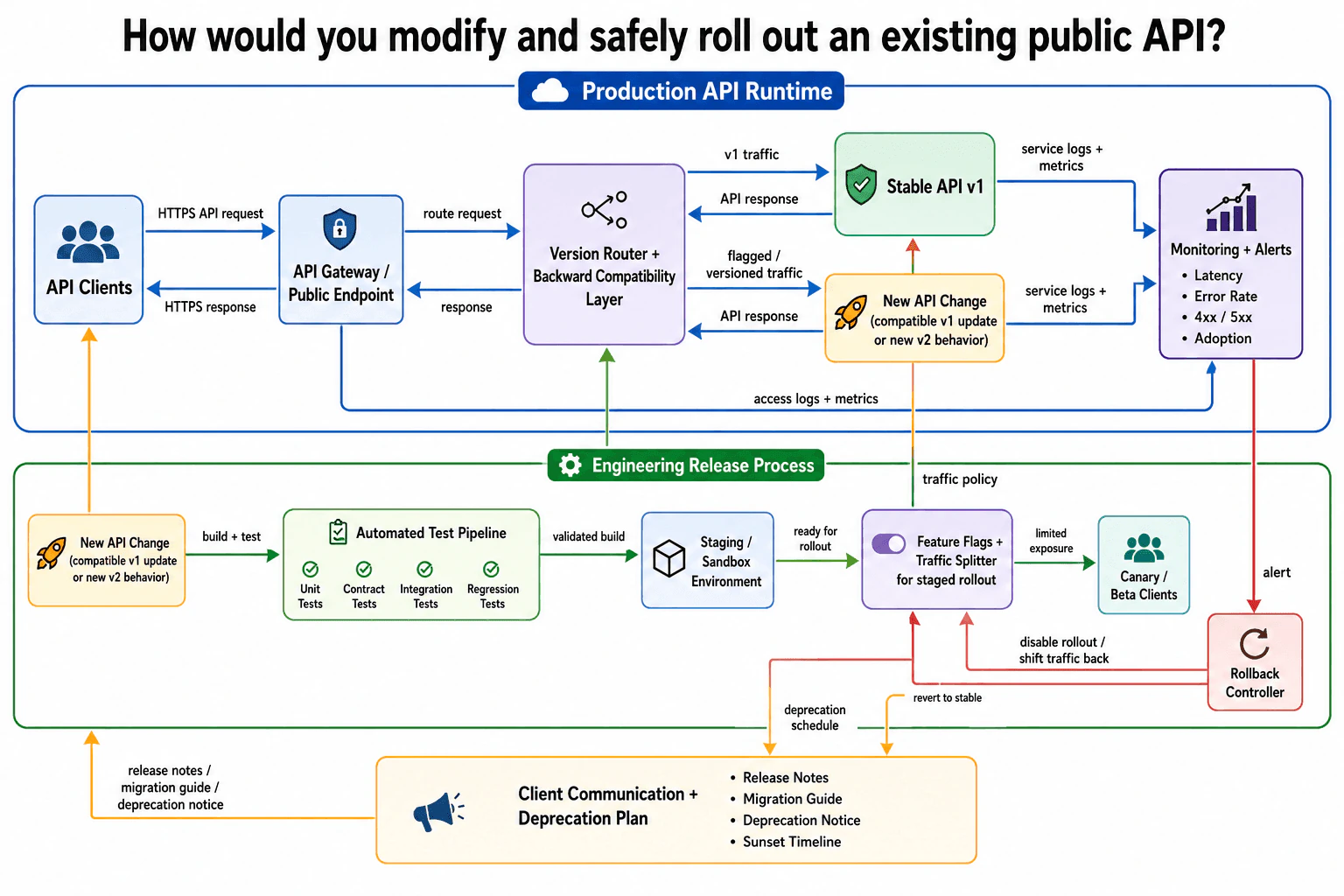

At a high level, I would introduce the API change without breaking existing clients. Requests still enter through the API Gateway. The Version Router sends normal v1 traffic to Stable API v1 and sends selected traffic to the New API Change. Before production, I run unit, contract, integration, and regression tests, followed by staging validation. Feature flags limit the first rollout to canary clients. Monitoring watches latency, errors, and adoption. If the release becomes unhealthy, rollback shifts traffic back to v1. The trade-off is slower delivery and more operational work, but much lower client risk.

This question asks how we can change a public API that clients already use. We must add new behavior without suddenly breaking existing applications. The goals are to keep Stable API v1 working, test the change carefully, release it to a small group first, watch its health, and reverse it quickly when needed. I would explain the solution in the same order shown in the diagram.

• Is the change backward compatible, or does it need versioned behavior?
• How many clients currently use Stable API v1?
• Can selected clients join a canary or beta rollout?
• Which latency and error limits should stop the rollout?
• How long must Stable API v1 remain available?

I would first classify the API change. A backward-compatible change keeps current client requests working. For example, it may add optional behavior without changing the existing contract. A breaking change needs separate versioned behavior because older clients cannot safely use it.

The diagram keeps Stable API v1 running beside the New API Change. This allows existing clients to continue using the stable behavior. Selected or versioned requests can use the new behavior. This decision reduces the chance of forcing every client to update at once.

The New API Change moves through the Automated Test Pipeline before production exposure. Unit tests check small pieces of code. Contract tests check that the API behavior still matches client expectations. Integration tests check that connected parts work together. Regression tests check that existing behavior has not been damaged.

A validated build then moves to the Staging or Sandbox Environment. This environment is used to test the complete release before public traffic reaches it. Only a validated release becomes ready for rollout.

API Clients send an HTTPS API request to the API Gateway or Public Endpoint. The gateway sends the request to the Version Router and Backward Compatibility Layer.

The router owns the traffic decision. It sends ordinary v1 traffic to Stable API v1. It sends flagged or versioned traffic to the New API Change. This compatibility layer lets old and new behavior operate at the same time.

Stable API v1 or the New API Change processes the request. The chosen API sends its API response back to the version router. The router returns the response to the gateway. The gateway then sends the HTTPS response back to the API client.

After staging validation, Feature Flags and the Traffic Splitter control production exposure. A feature flag is a switch that enables the new behavior for selected traffic. The traffic splitter defines how much traffic reaches the new change.

The traffic policy is sent to the Version Router. Canary or beta clients receive limited exposure first. Their requests can reach the New API Change while normal clients continue using Stable API v1.

If the canary remains healthy, the team can increase exposure in small steps. This limits the number of clients affected by an early defect.

The API Gateway sends access logs and metrics to Monitoring and Alerts. Stable API v1 and the New API Change send service logs and metrics to the same monitoring system.

The team watches latency, error rate, 4xx and 5xx responses, and client adoption. Latency shows whether responses are becoming slower. Error rates show whether requests are failing. Adoption shows how many clients have started using the new behavior.

Monitoring is a supporting flow. It does not return the business response to the client. Its job is to detect release problems and create alerts.

When monitoring detects a serious problem, it sends an alert to the Rollback Controller. The controller can disable the rollout or shift traffic back through the feature flags and traffic splitter.

It can also revert traffic to Stable API v1. The public request path remains available through the gateway and version router. Only the routing policy changes.

Rollback should happen before the new behavior reaches more clients. After traffic becomes stable, the team can investigate the logs, fix the issue, repeat the automated tests, and validate the corrected build in staging.

The Client Communication and Deprecation Plan explains the change to API users. It includes release notes, a migration guide, a deprecation notice, and a sunset timeline.

Release notes explain what changed. The migration guide explains how clients should update. The deprecation notice warns that old behavior will be removed later. The sunset timeline gives clients a clear deadline.

Stable API v1 should remain available during the agreed migration period. Monitoring adoption helps the team understand how many clients still depend on it. The old behavior should be retired only after communication, migration time, and the planned deprecation process are complete.

The benefit of this design is safety. Stable API v1 stays available while the New API Change is tested and released slowly. The Version Router gives one place to control which behavior handles each request. Feature flags reduce risk because only selected clients see the change first. The downside is extra work. The team must support two behaviors, maintain compatibility rules, run several kinds of tests, manage traffic policies, and watch more metrics. Rollback is useful, but the rollback path must also be tested. Deprecation may take a long time because some clients update slowly. This process delays full delivery, but it lowers the chance of breaking a public API used by many clients.
